ME PLC 40 B BUS 10/10 7035VPE1 - Mounting base housing

DIN rail housing, Lower housing part with metal foot catch, for 10/10 bus connector, width: 39.7 mm, height: 180.1 mm, depth: 137.7 mm, color: light grey (7035), cross connection: DIN rail connector (optional), number of positions cross connector: 10
Cod. Articolo: 2202056
Cod. Fornitore: 2202056
PHOENIX CONTACT


Diminuisci la quantità
Aumenta la quantità
Caratteristiche Tecniche
Specifiche
Descrizione
Download
Caratteristiche Tecniche
NotesGeneral: Refer to the data sheet for the range in the download area.
Product propertiesProduct type: Enclosure bottom part
Max. number of positions: 36 (pitch: 5 mm)
Type: Lower housing part with metal foot catch
Housing type: DIN rail housing
Ventilation openings present: yes
Housing series: ME PLC

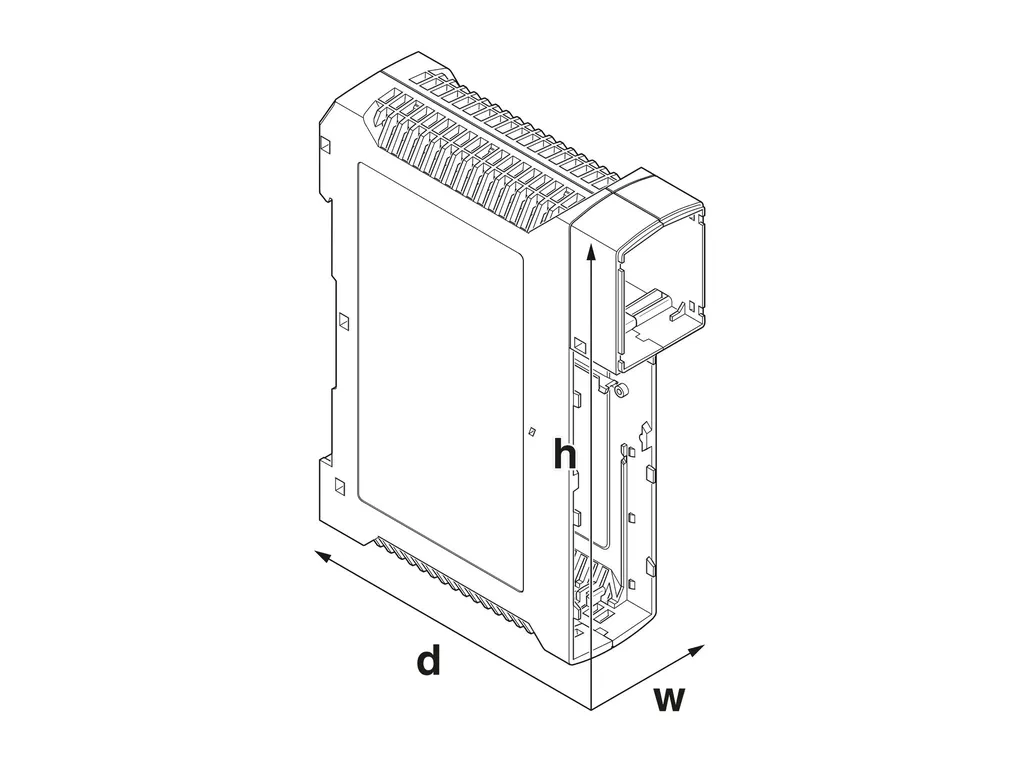

DimensionsDimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/656095b4c057d045acff9944ddf634ee/-S204x204-FJPG
Width: 39.7 mm
Height: 180.1 mm
Depth: 137.7 mm
Depth from top edge of DIN rail: 131.1 mm
Depth from top edge of DIN rail to support point on upper part: 108 mm
PCB design
PCB thickness: 1.4 mm ... 1.8 mm
Material specificationsColor: light grey (7035)
Flammability rating according to UL 94: V0
CTI according to IEC 60112: 225
Surface characteristics: untreated
Housing material: Polycarbonate
Environmental and real-life conditionsAmbient conditions
Max. IP code to attain: IP20
Ambient temperature (operation): -40°C ... 105°C (depending on power dissipation)
Ambient temperature (storage/transport): -40°C ... 70°C
Ambient temperature (assembly): -5°C ... 100°C
Relative humidity (storage/transport): 95 %
PCB dataNumber of PCB holders: 1
Type of PCB mount: Latching
Total PCB surface: 16000 mm²
Thickness of the PCB: 1.4 mm ... 1.8 mm
MountingMounting type: DIN rail mounting
Mounting position: Vertical (horizontal DIN rail)
Packaging specificationsType of packaging: packed in cardboard
Outer packaging type: Carton
Specifiche
ECLASSECLASS-11.0: 27182702
ECLASS-13.0: 27190601
ETIMETIM 8.0: EC001031
UNSPSCUNSPSC 21.0: 31261500
Descrizione
DIN rail housing, Lower housing part with metal foot catch, for 10/10 bus connector, width: 39.7 mm, height: 180.1 mm, depth: 137.7 mm, cross connection: DIN rail connector (optional), number of positions cross connector: 10, color: light gray (7035)
Download
PER SCARICARE I DOCUMENTI E' NECESSARIO EFFETTUARE L'ACCESSO AL SITO

Material_description_00001.pdf

Package_slip_01602.pdf

Technical_drawing_36149.pdf
