PHOENIX CONTACT 2202163
PHOENIX CONTACTNon disponibile

ME MAX 22,5 PLATE GY - Insertion plate

DIN rail housing, Insertion plate, width: 19.2 mm, height: 73.6 mm, depth: 1 mm, color: gray (7042)
Cod. Articolo: 2202163
Cod. Fornitore: 2202163
PHOENIX CONTACT


Diminuisci la quantità
Aumenta la quantità
Caratteristiche Tecniche
Specifiche
Download
Caratteristiche Tecniche
NotesGeneral: Refer to the data sheet for the range in the download area.
Material of contact pads for bus connector, galvanic gold (hard gold)
Product propertiesProduct type: Cover
Type: Insertion plate
Housing type: DIN rail housing
Ventilation openings present: no
Housing series: ME-MAX

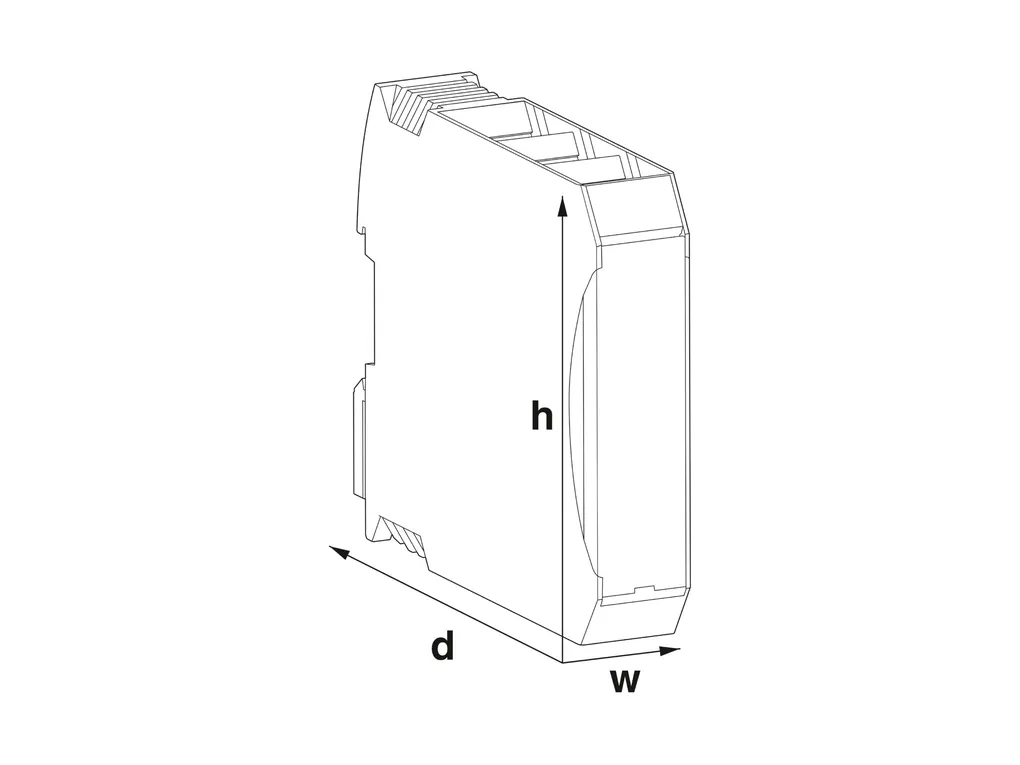

DimensionsDimensional drawing: https://caas.production.phoenixcontact.coremedia.cloud/caas/v1/stable/media/22580/full/b250?format=jpg
Width: 19.2 mm
Height: 73.6 mm
Depth: 1 mm
Material specificationsColor: gray (7042)
Flammability rating according to UL 94: V0
CTI according to IEC 60112: 600
Surface characteristics: untreated
Housing material: Polyamide
Environmental and real-life conditionsAmbient conditions
Max. IP code to attain: IP20
Ambient temperature (operation): -40°C ... 105°C (depending on power dissipation)
Ambient temperature (storage/transport): -40°C ... 55°C
Ambient temperature (assembly): -5°C ... 100°C
Relative humidity (storage/transport): 80 %
PCB dataNumber of PCB holders: 1
Specifiche
ECLASSECLASS-11.0: 27182702
ECLASS-13.0: 27190605
ETIMETIM 9.0: EC002779
UNSPSCUNSPSC 21.0: 31261500
Download
PER SCARICARE I DOCUMENTI E' NECESSARIO EFFETTUARE L'ACCESSO AL SITO

Material_description_00001.pdf

Technical_drawing_36183.pdf
