| Notes | General: Single unit packaging: please order using Order No. 1654866 |
| Product properties | Type: SC-RJ Product type: Data connector (cable side) Number of positions: 2 Connection profile: SCRJ Application: neutral Cable outlet: straight Insulation characteristics Overvoltage category: I Degree of pollution: 2 |
| Electrical properties | Attenuation: ⥠2 dB (Insertion attenuation) Transmission medium: FO Transmission characteristics (category): MM |
| Connection data | Connection technology Connection method: Cable connection |

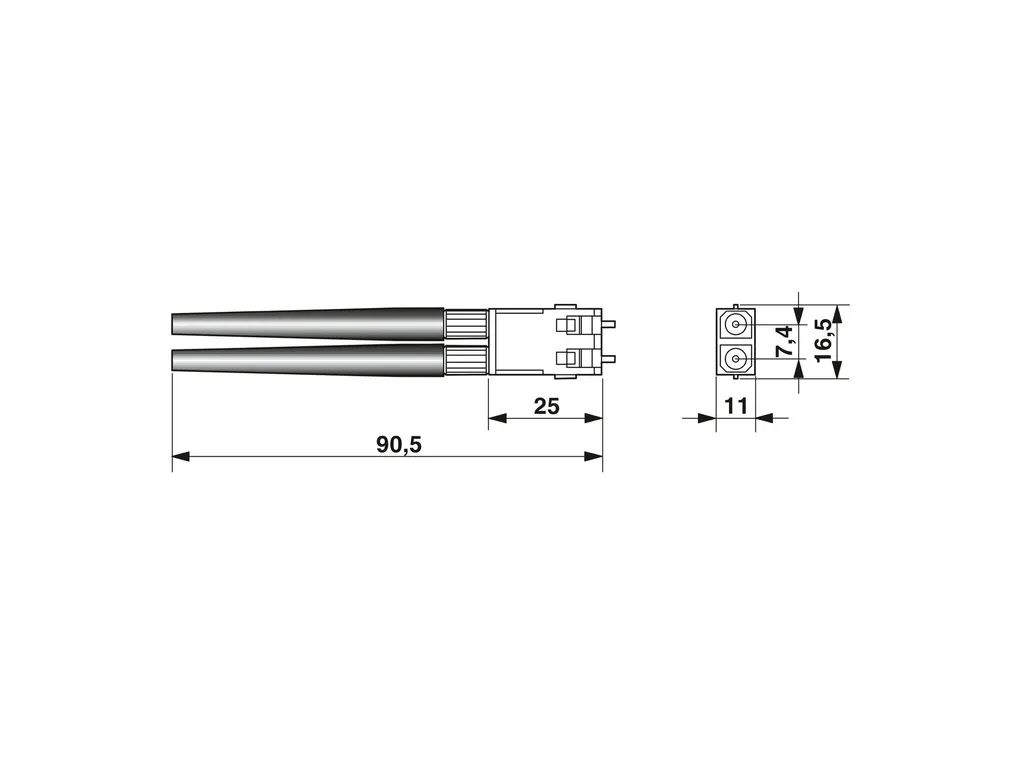

| Dimensions | Width: 16.5 mm Height: 11 mm Length: 88.5 mm |
| Material specifications | Color: black Material: Plastic Flammability rating according to UL 94: V0 Ferrule material: Copper alloy Housing material: Plastic |
| Cable/line | Cable type: PCF 200/230 Single wires External cable diameter (): 2.9 mm ... 2.9 mm Individual wire diameter: 2.9 mm FO cable Fiber: 200/230µm Fiber type: PCF Attenuation: ⤠1.5 dB Transmission medium: FO |
| Characteristics | Attenuation: ⥠2 dB (Insertion attenuation) |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP20 Ambient temperature (operation): -25°C ... 70°C Ambient temperature (storage/transport): -25°C ... 70°C Ambient temperature (assembly): 0°C ... 50°C |
| Mounting | Mounting type: For field assembly cable layer type: Indoors Connection method: Cable connection |
| ECLASS | ECLASS-11.0: 19170122 ECLASS-12.0: 19170122 ECLASS-13.0: 19170122 |
| ETIM | ETIM 9.0: EC001122 |
| UNSPSC | UNSPSC 21.0: 43223300 |
