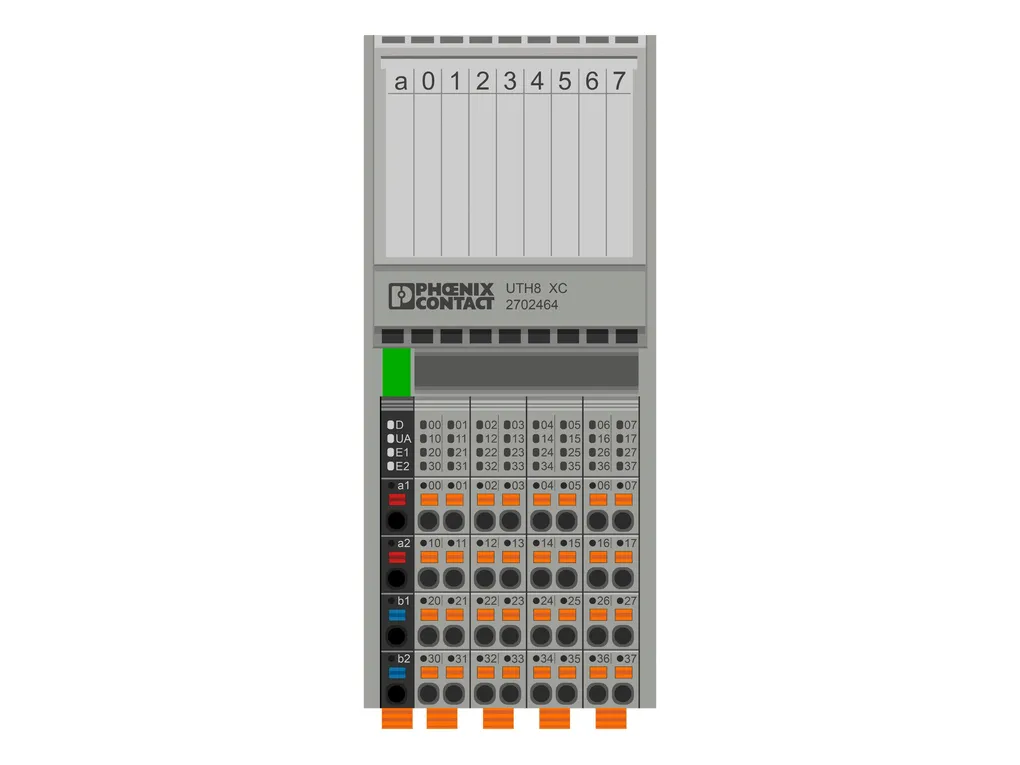

Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/3f783436b27c3846a361ee861b282789/-S204x204-FJPG Width: 53.6 mm Height: 126.1 mm Depth: 54 mm Note on dimensions: The depth applies when a TH35-7.5 DIN rail is used (in accordance with EN60715).
|
Interfaces | AxiolineFlocal bus Number of interfaces: 2 Connection method: Bus base module Transmission speed: 100 Mbps
|
System properties | Module Input address area: 18 Byte Output address area: 18 Byte Required parameter data: 27 Byte (20bytes for configuration with GSD AXL UTH 8 (packed)) Required configuration data: 7 Byte
|
Input data | Analog Input name: Analog inputs Description of the input: Inputs for thermocouples or linear voltage Number of inputs: 8 + 1 (8 inputs for thermocouples or linear voltage, plus 1 input -5V to +5V) Connection method: Push-in connection Connection technology: 2-conductor (shielded, twisted pair) A/D converter resolution: 24 bit Sensor types (RTD) that can be used: Pt 100 (4 external cold junctions, can also be used as a sensor input) Sensor types that can be used (TC): U, T, L, J, E, K, N, S, R, B, C, W, HK Measuring principle: Sigma/Delta process Measured value representation: 16 bits (15 bits + sign bit) Input filter time: 40 ms 60 ms 100 ms 120 ms (adjustable) Protective circuit: Short-circuit protection, overload protection of the inputs Transient protection of inputs
|
Product properties | Type: block modular Product type: I/O component Product family: AxiolineF Mounting position: any (no temperature derating; Parameterize the mounting position using the object 0080hex ParaTable!) Scope of delivery: including bus base module and AxiolineF connectors Insulation characteristics Overvoltage category: II (IEC 60664-1, EN60664-1) Pollution degree: 2 (IEC 60664-1, EN60664-1)
|
Electrical properties | Potentials Power consumption: typ. 1.63 W (entire device) max. 2.58 W (entire device) Potentials: AxiolineF local bus supply (U Supply voltage: 5 VDC (via bus base module) Current draw: max. 180 mA typ. 115 mA Power consumption: max. 0.9 W typ. 0.55 W Potentials: Supply for analog modules (U Supply voltage: 24 VDC Supply voltage range: 19.2 VDC ... 30 VDC (including all tolerances, including ripple) Current draw: max. 70 mA typ. 45.3 mA Power consumption: max. 1.68 W Protective circuit: Surge protection; electronic (35 V, 0.5 s) Reverse polarity protection; Polarity protection diode Transient protection; Suppressor diode Electrical isolation/isolation of the voltage ranges Test voltage: 5V supply of the local bus (UBus) / 24V supply (I/Os): 500 VAC, 50 Hz, 1 min. Test voltage: 5V supply of the local bus (UBus) / functional ground: 500 VAC, 50 Hz, 1 min. Test voltage: 24V supply (I/O) / functional ground: 500 VAC, 50 Hz, 1 min.
|
Connection data | Connection technology Connection name: AxiolineF connector Note on the connection method: Please observe the information provided on conductor cross sections in the âAxiolineF: system and installationâ user manual. Conductor connection Connection method: Push-in connection Conductor cross section rigid: 0.2 mm² ... 1.5 mm² Conductor cross section flexible: 0.2 mm² ... 1.5 mm² Conductor cross section AWG: 24 ... 16 Stripping length: 8 mm AxiolineF connector Connection method: Push-in connection Note on the connection method: Please observe the information provided on conductor cross sections in the âAxiolineF: system and installationâ user manual. Conductor cross section, rigid: 0.2 mm² ... 1.5 mm² Conductor cross section, flexible: 0.2 mm² ... 1.5 mm² Conductor cross section AWG: 24 ... 16 Stripping length: 8 mm
|
Environmental and real-life conditions | Ambient conditions Ambient temperature (operation): -25°C ... 60°C (Standard, applications with UL approval, use in zone2 potentially explosive area) -40°C ... 70°C (Extended, see section âTested successfully: use under extreme ambient conditionsâ in the data sheet.) Degree of protection: IP20 Air pressure (operation): 70 kPa ... 106 kPa (up to 3000m above sea level) Air pressure (storage/transport): 70 kPa ... 106 kPa (up to 3000m above sea level) Ambient temperature (storage/transport): -40°C ... 85°C Permissible humidity (operation): 5 % ... 95 % (non-condensing) Permissible humidity (storage/transport): 5 % ... 95 % (non-condensing)
|
Standards and regulations | Protection class: III (IEC 61140, EN61140, VDE0140-1)
|
Approvals | ATEX Identification: ï II 3 G Ex ec IIC T4 Gc Certificate: UL 20 ATEX 2441X UKEX Identification: ï II 3 G Ex ec IIC T4 Gc Certificate: PxCIMA22UKEX2701949X IECEx Identification: Ex ec IIC T4 Gc Certificate: IECEx ULD 20.0026X UL, USA/Canada Identification: cULus Certificate: E238705 UL Ex, USA / Canada Identification: Class I, Zone 2, AEx ec IIC T4 ClassI, Division2, Groups A, B, C, D, T4 Ex ec IIC T4 Gc X Certificate: E366272 CCC/China-Ex Identification: Ex ec IIC T4 Gc Certificate: ï¬, 2021122309114456
|
Mounting | Mounting type: DIN rail mounting Mounting position: any (no temperature derating; Parameterize the mounting position using the object 0080hex ParaTable!)
|
