2896993 PHOENIX CONTACT - Technology Bsa

BC 215,6 UT HBUS BK - Mounting base housing

DIN rail housing for use in distribution boards in accordance with DIN 43880, Lower housing part with base latch, width: 215.6 mm, height: 89.7 mm, depth: 48.9 mm, color: black (9005), cross connection: DIN rail connector (optional)

Cod. Articolo: 2896993

Cod. Fornitore: 2896993

PHOENIX CONTACT

Notes	General: Refer to the data sheet for the range in the download area.
Product properties	Product type: Enclosure bottom part Product family: BC UT HBUS Type: Lower housing part with base latch Housing type: DIN rail housing for use in distribution boards in accordance with DIN 43880 Ventilation openings present: no Housing series: BC

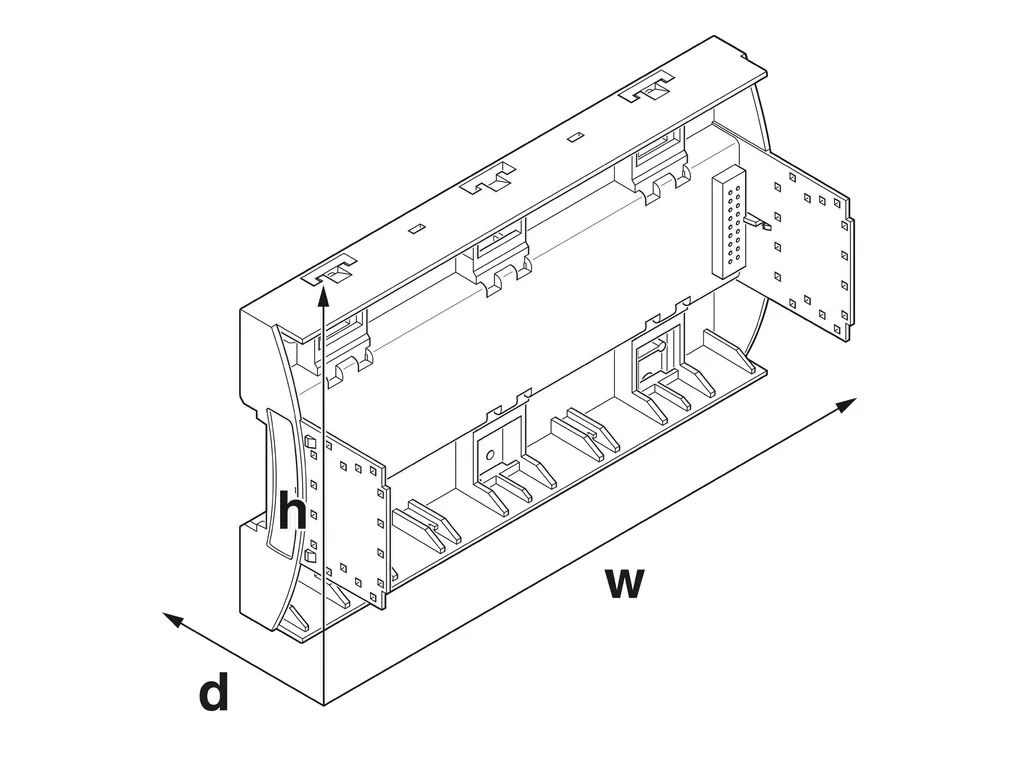

Dimensions	Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/7abb9df10a1845448021a76f3b495793/-S204x204-FJPG Width: 215.6 mm Height: 89.7 mm Depth: 48.9 mm PCB design PCB thickness: 1.4 mm ... 1.8 mm
Material specifications	Color: black (9005) Flammability rating according to UL 94: V0 Surface characteristics: untreated Housing material: Polycarbonate
Environmental and real-life conditions	Ambient conditions Max. IP code to attain: IP20 Ambient temperature (operation): -40°C ... 105°C (depending on power dissipation) Ambient temperature (storage/transport): -40°C ... 70°C Ambient temperature (assembly): -5°C ... 100°C Relative humidity (storage/transport): 95 %
PCB data	Number of PCB holders: 9 Type of PCB mount: Latching Thickness of the PCB: 1.4 mm ... 1.8 mm
Mounting	Mounting type: DIN rail mounting/wall mounting Mounting position: parallel to the DIN rail
Packaging specifications	Type of packaging: packed in cardboard Outer packaging type: Carton
