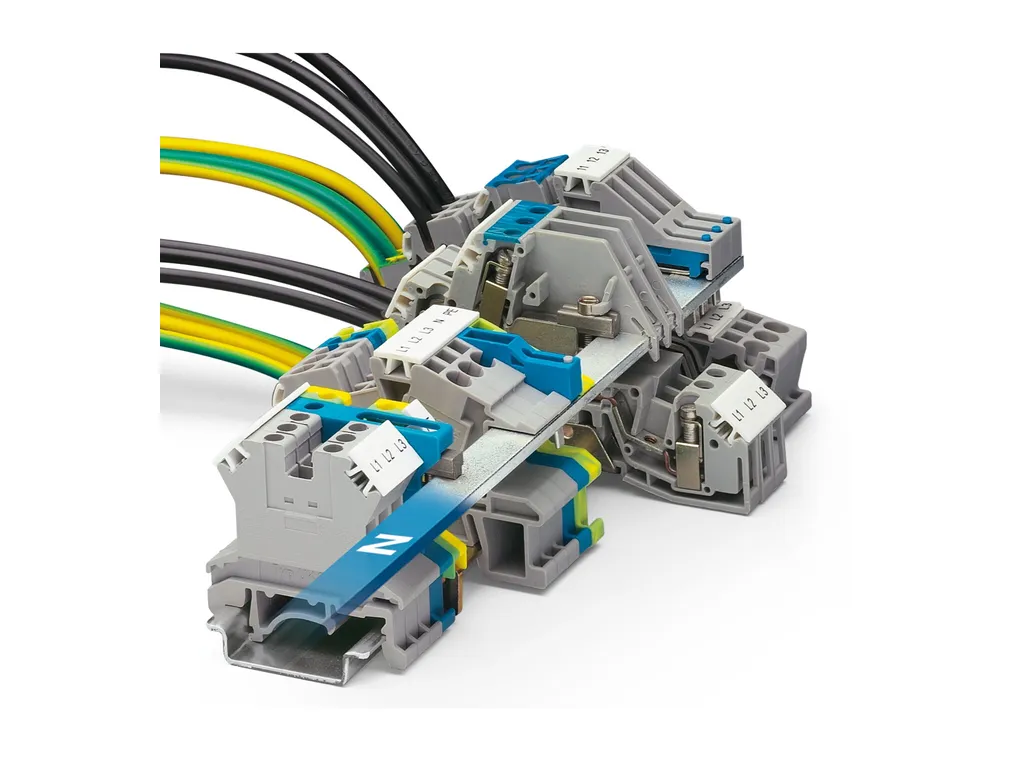

| Product properties | Product type: Installation terminal block Number of connections: 2 Number of rows: 1 Potentials: 1 Insulation characteristics Overvoltage category: III Degree of pollution: 3 |
| Electrical properties | Rated surge voltage: 8 kV Maximum power dissipation for nominal condition: 4.06 W |
| Connection data | Number of connections per level: 2 Nominal cross section: 35 mm² Level 1 above 1 below 1 Screw thread: M6 Tightening torque: 3.2 ... 3.7 Nm Stripping length: 16 mm Connection in acc. with standard: IEC 60947-7-1 Conductor cross section rigid: 0.75 mm² ... 35 mm² Cross section AWG: 18 ... 2 (converted acc. to IEC) Conductor cross section flexible: 0.75 mm² ... 35 mm² Conductor cross section, flexible [AWG]: 18 ... 2 (converted acc. to IEC) Conductor cross-section flexible (ferrule without plastic sleeve): 0.75 mm² ... 35 mm² Flexible conductor cross section (ferrule with plastic sleeve): 0.75 mm² ... 35 mm² Cross-section with insertion bridge, rigid: 35 mm² Cross-section with insertion bridge, flexible: 35 mm² 2 conductors with same cross section, solid: 0.75 mm² ... 10 mm² 2 conductors with same cross section, flexible: 0.75 mm² ... 10 mm² 2 conductors with same cross section, flexible, with ferrule without plastic sleeve: 0.75 mm² ... 10 mm² 2 conductors with the same cross section, flexible, with TWIN ferrule with plastic sleeve: 0.75 mm² ... 6 mm² Nominal current: 125 A Maximum load current: 125 A (with 35 mm² conductor cross section) Nominal voltage: 800 V Nominal cross section: 35 mm² |
| Dimensions | Width: 15.2 mm Height: 55 mm Depth on NS32: 56 mm Depth on NS35/7,5: 51 mm Depth on NS35/15: 58.5 mm |
| Material specifications | Color: gray Flammability rating according to UL 94: V0 Insulating material group: I Insulating material: PA Static insulating material application in cold: -60°C Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21)): 130°C Relative insulation material temperature index (Elec., UL 746 B): 130°C Fire protection for rail vehicles (DIN EN 45545-2) R22: HL 1 - HL 3 Fire protection for rail vehicles (DIN EN 45545-2) R23: HL 1 - HL 3 Fire protection for rail vehicles (DIN EN 45545-2) R24: HL 1 - HL 3 Fire protection for rail vehicles (DIN EN 45545-2) R26: HL 1 - HL 3 Calorimetric heat release NFPA 130 (ASTM E 1354): 28 MJ/kg Surface flammability NFPA 130 (ASTM E 162): passed Specific optical density of smoke NFPA 130 (ASTM E 662): passed Smoke gas toxicity NFPA 130 (SMP 800C): passed |
| Electrical tests | Temperature-rise test Requirement temperature-rise test: Increase in temperature ≤45K Result: Test passed Short-time withstand current 35 mm²: 4.2 kA |
| Mechanical properties | Mechanical data Open side panel: No |
| Mechanical tests | Attachment on the carrier DIN rail/fixing support: NS32/NS35 Test force setpoint: 10 N Result: Test passed |
| Environmental and real-life conditions | Needle-flame test Time of exposure: 30 s Result: Test passed Ambient conditions Ambient temperature (operation): -60°C ... 105°C (max. short-term operating temperature RTI Elec.) Ambient temperature (storage/transport): -25°C ... 60°C (for a short time, not exceeding 24h, -60°C to +70°C) Ambient temperature (assembly): -5°C ... 70°C Permissible humidity (storage/transport): 30 % ... 70 % |
| Standards and regulations | Connection in acc. with standard: IEC 60947-7-1 |
| Mounting | Mounting type: NS 35/7,5 NS35/15 NS32 |
| ECLASS | ECLASS-11.0: 27141125 ECLASS-12.0: 27141125 ECLASS-13.0: 27250110 |
| ETIM | ETIM 8.0: EC001329 |
| UNSPSC | UNSPSC 21.0: 39121400 |
