3011054 PHOENIX CONTACT - Technology Bsa

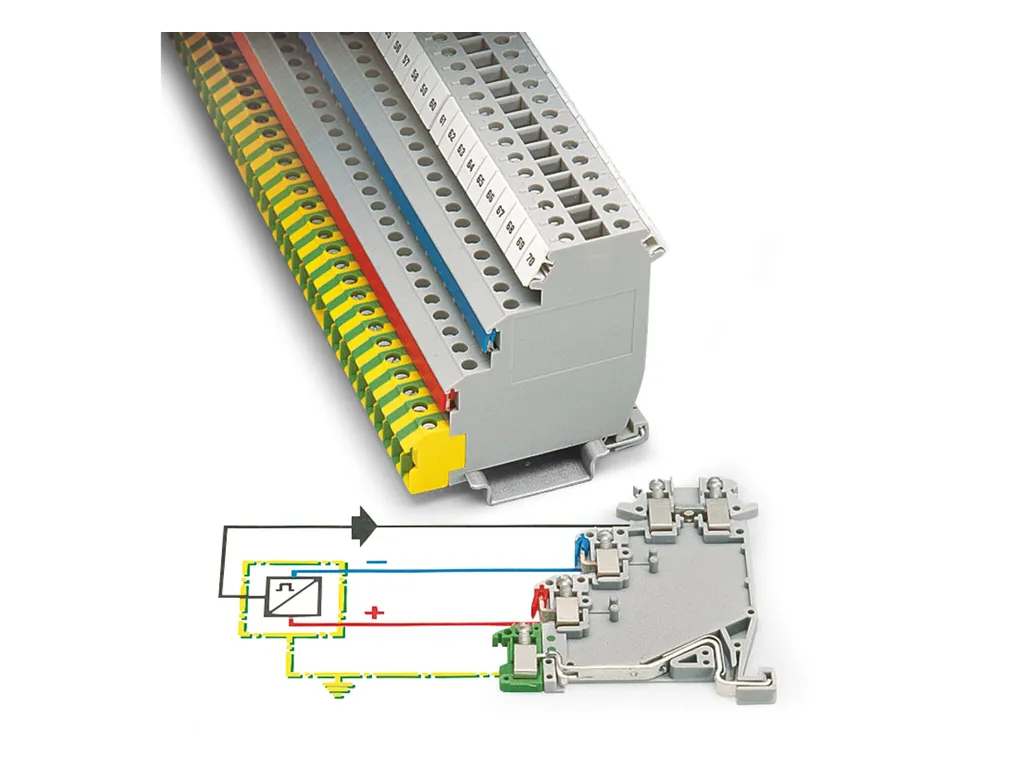

DOKD 1,5-TG - Sensor/actuator terminal block

Sensor/actuator terminal block, Current and voltage are determined by the plug used., nom. voltage:250 V, nominal current:24 A, connection method: Screw connection, Rated cross section:2.5 mm², cross section:0.2 mm²-4 mm², connection method: Screw connection, cross section:0.2 mm²-4 mm², mounting: NS 35/7,5, NS35/15, color:gray

Cod. Articolo: 3011054

Cod. Fornitore: 3011054

PHOENIX CONTACT

Notes	General: Current and voltage are determined by the plug used.
Product properties	Product type: Sensor/actuator terminal block Number of connections: 5 Number of rows: 3 Potentials: 3 Insulation characteristics Overvoltage category: III Degree of pollution: 3
Electrical properties	Rated surge voltage: 4 kV Maximum power dissipation for nominal condition: 0.77 W
Connection data	Grounding foot: Yes Number of connections per level: 2 Nominal cross section: 2.5 mm² Level 1+2+3 Screw thread: M3 Tightening torque: 0.5 ... 0.6 Nm Stripping length: 8 mm Internal cylindrical gage: A3 Connection in acc. with standard: IEC 60947-7-1/IEC 60947-7-2 Conductor cross section rigid: 0.2 mm² ... 4 mm² Cross section AWG: 24 ... 12 (converted acc. to IEC) Conductor cross section flexible: 0.2 mm² ... 2.5 mm² Conductor cross section, flexible [AWG]: 24 ... 14 (converted acc. to IEC) Conductor cross-section flexible (ferrule without plastic sleeve): 0.25 mm² ... 2.5 mm² Flexible conductor cross section (ferrule with plastic sleeve): 0.25 mm² ... 2.5 mm² Cross-section with insertion bridge, rigid: 4 mm² Cross-section with insertion bridge, flexible: 2.5 mm² 2 conductors with same cross section, solid: 0.2 mm² ... 1 mm² 2 conductors with same cross section, flexible: 0.2 mm² ... 1 mm² 2 conductors with same cross section, flexible, with ferrule without plastic sleeve: 0.25 mm² ... 1 mm² 2 conductors with the same cross section, flexible, with TWIN ferrule with plastic sleeve: 0.5 mm² ... 1 mm² Nominal current: 24 A Maximum load current: 26 A (with a 2.5 mm² conductor cross section) Nominal voltage: 250 V (the voltage is determined by the component used) Nominal cross section: 2.5 mm² Disconnect level Screw thread: M3 Tightening torque: 0.5 ... 0.6 Nm Stripping length: 8 mm Connection in acc. with standard: IEC 60947-7-1 Conductor cross section rigid: 0.2 mm² ... 4 mm² Cross section AWG: 24 ... 14 (converted acc. to IEC) Conductor cross section flexible: 0.2 mm² ... 2.5 mm² Conductor cross-section flexible (ferrule without plastic sleeve): 0.25 mm² ... 2.5 mm² Flexible conductor cross section (ferrule with plastic sleeve): 0.25 mm² ... 2.5 mm² Cross-section with insertion bridge, rigid: 4 mm² Cross-section with insertion bridge, flexible: 2.5 mm² 2 conductors with same cross section, solid: 0.2 mm² ... 1 mm² 2 conductors with same cross section, flexible: 0.2 mm² ... 1 mm² 2 conductors with same cross section, flexible, with ferrule without plastic sleeve: 0.25 mm² ... 1 mm² 2 conductors with the same cross section, flexible, with TWIN ferrule with plastic sleeve: 0.5 mm² ... 1 mm² Nominal current: 16 A Maximum load current: 16 A (with 4mm² conductor cross section) Nominal voltage: 250 V
Dimensions	Width: 6.2 mm Height: 63 mm Depth on NS35/7,5: 54.5 mm Depth on NS35/15: 62 mm
Material specifications	Color: gray Flammability rating according to UL 94: V2 Insulating material group: I Insulating material: PA Static insulating material application in cold: -60°C Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21)): 130°C Relative insulation material temperature index (Elec., UL 746 B): 130°C Fire protection for rail vehicles (DIN EN 45545-2) R22: HL 1 - HL 3 Fire protection for rail vehicles (DIN EN 45545-2) R23: HL 1 - HL 3 Fire protection for rail vehicles (DIN EN 45545-2) R24: HL 1 - HL 3 Fire protection for rail vehicles (DIN EN 45545-2) R26: HL 1 - HL 3 Calorimetric heat release NFPA 130 (ASTM E 1354): 28 MJ/kg Surface flammability NFPA 130 (ASTM E 162): passed Specific optical density of smoke NFPA 130 (ASTM E 662): passed Smoke gas toxicity NFPA 130 (SMP 800C): passed
Mechanical properties	Mechanical data Open side panel: No
Environmental and real-life conditions	Ambient conditions Ambient temperature (operation): -60°C ... 105°C (max. short-term operating temperature RTI Elec.) Ambient temperature (storage/transport): -25°C ... 60°C (for a short time, not exceeding 24h, -60°C to +70°C) Ambient temperature (assembly): -5°C ... 70°C Ambient temperature (actuation): -5°C ... 70°C Permissible humidity (storage/transport): 30 % ... 70 %
Standards and regulations	Connection in acc. with standard: IEC 60947-7-1/IEC 60947-7-2 IEC 60947-7-1
Mounting	Mounting type: NS 35/7,5 NS35/15
