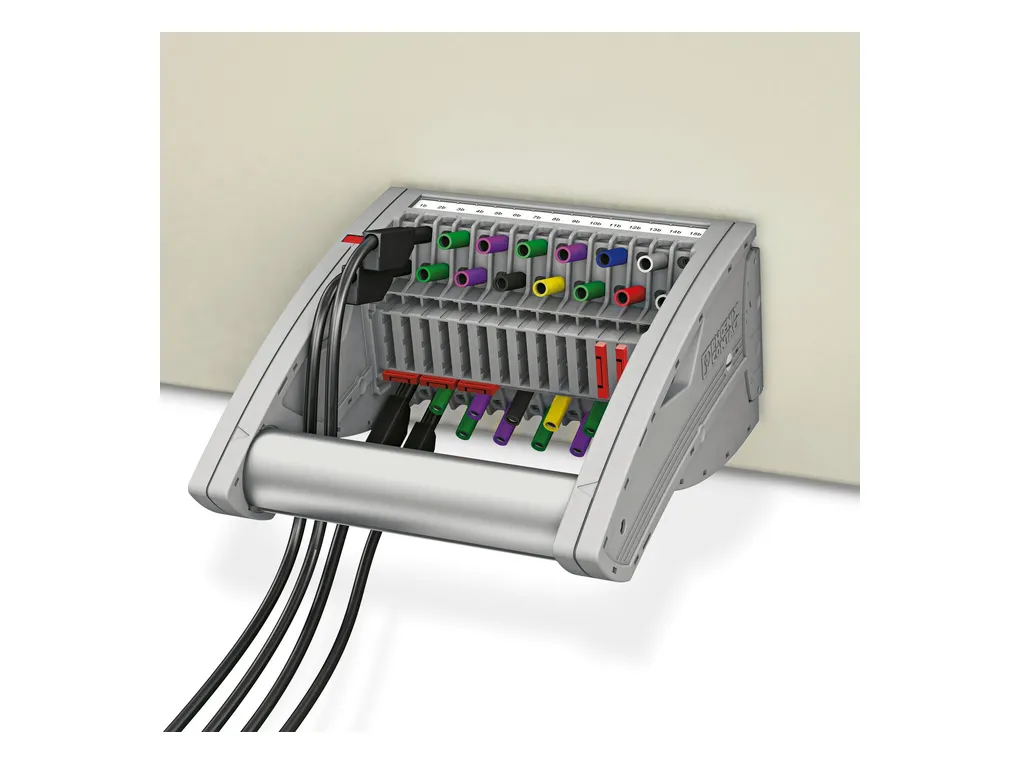

| Product properties | Product type: Test socket Number of positions: 1 |
| Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/2cfc96aa9291ea4a942be3b3e24bab39/-S204x204-FJPG Width: 6 mm Height: 6 mm Depth on NS35/7,5: 15 mm Pin diameter: 4.1 mm |
| Material specifications | Color: gray Material: Brass Insulating material: PA Static insulating material application in cold: -60°C Relative insulation material temperature index (Elec., UL 746 B): 130°C Fire protection for rail vehicles (DIN EN 45545-2) R22: HL 1 - HL 3 Fire protection for rail vehicles (DIN EN 45545-2) R23: HL 1 - HL 3 Fire protection for rail vehicles (DIN EN 45545-2) R24: HL 1 - HL 3 Fire protection for rail vehicles (DIN EN 45545-2) R26: HL 1 - HL 3 Calorimetric heat release NFPA 130 (ASTM E 1354): 28 MJ/kg Surface flammability NFPA 130 (ASTM E 162): passed Specific optical density of smoke NFPA 130 (ASTM E 662): passed Smoke gas toxicity NFPA 130 (SMP 800C): passed |
| Environmental and real-life conditions | Ambient conditions Ambient temperature (operation): -60°C ... 105°C (max. short-term operating temperature RTI Elec.) Ambient temperature (storage/transport): -25°C ... 60°C (for a short time, not exceeding 24h, -60°C to +70°C) Ambient temperature (assembly): -5°C ... 70°C Ambient temperature (actuation): -5°C ... 70°C Permissible humidity (storage/transport): 30 % ... 70 % |
| Mounting | Connection method: Screw connection |
| ECLASS | ECLASS-11.0: 27440313 ECLASS-13.0: 27440313 ECLASS-12.0: 27440313 |
| ETIM | ETIM 9.0: EC002255 |
| UNSPSC | UNSPSC 21.0: 20122000 |
