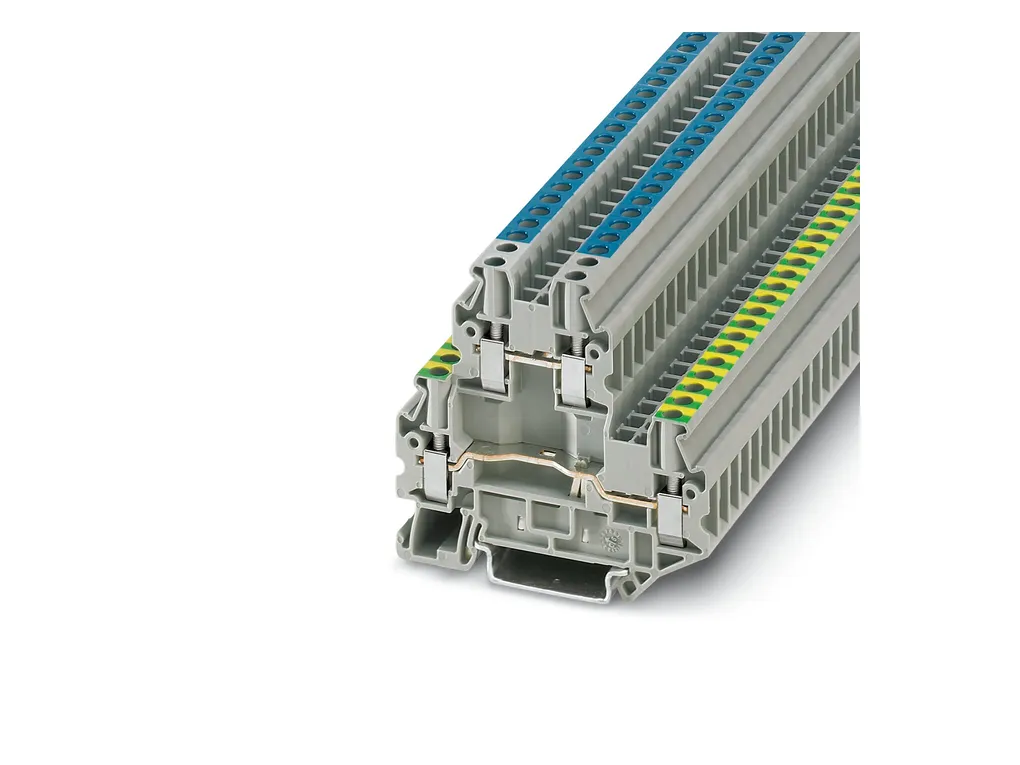

UTTB 4-PE/L - Feed-through terminal block

Feed-through terminal block, nom. voltage: 800 V, nominal current: 30 A, connection method: Screw connection, Rated cross section: 4 mm², cross section: 0.14 mm² - 6 mm², mounting type: NS 35/7,5, NS35/15, color: gray

Cod. Articolo: 3044746

Cod. Fornitore: 3044746

PHOENIX CONTACT

Product properties	Product type: Ground terminal block Number of connections: 4 Number of rows: 2
Electrical properties	Maximum power dissipation for nominal condition: 1.02 W
Connection data	Grounding foot: Yes Number of connections per level: 2 Nominal cross section: 4 mm² Level 1+2 Screw thread: M3 Note: Please observe the current carrying capacity of the DIN rails. Tightening torque: 0.6 ... 0.8 Nm Stripping length: 9 mm Internal cylindrical gage: A4 Connection in acc. with standard: IEC 60947-7-1/IEC 60947-7-2 Conductor cross section rigid: 0.14 mm² ... 6 mm² Cross section AWG: 26 ... 10 (converted acc. to IEC) Conductor cross section flexible: 0.14 mm² ... 6 mm² Conductor cross section, flexible [AWG]: 26 ... 10 (converted acc. to IEC) Conductor cross-section flexible (ferrule without plastic sleeve): 0.14 mm² ... 4 mm² Flexible conductor cross section (ferrule with plastic sleeve): 0.14 mm² ... 4 mm² Nominal current: 30 A Maximum load current: 36 A (with 6 mm² conductor cross section) Nominal voltage: 800 V Nominal cross section: 4 mm²
Dimensions	Width: 6.2 mm End cover width: 2.2 mm Height: 69.9 mm Depth on NS35/7,5: 65 mm Depth on NS35/15: 72.5 mm
Material specifications	Color: gray Flammability rating according to UL 94: V0 Insulating material: PA Static insulating material application in cold: -60°C Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21)): 125°C Relative insulation material temperature index (Elec., UL 746 B): 130°C Fire protection for rail vehicles (DIN EN 45545-2) R22: HL 1 - HL 3 Fire protection for rail vehicles (DIN EN 45545-2) R23: HL 1 - HL 3 Fire protection for rail vehicles (DIN EN 45545-2) R24: HL 1 - HL 3 Fire protection for rail vehicles (DIN EN 45545-2) R26: HL 1 - HL 3 Calorimetric heat release NFPA 130 (ASTM E 1354): 27,5 MJ/kg Surface flammability NFPA 130 (ASTM E 162): passed Specific optical density of smoke NFPA 130 (ASTM E 662): passed Smoke gas toxicity NFPA 130 (SMP 800C): passed
Electrical tests	Surge voltage test Test voltage setpoint: 9.8 kV Result: Test passed Temperature-rise test Requirement temperature-rise test: Increase in temperature Ã¢¤45K Result: Test passed Short-time withstand current 4 mm²: 0.48 kA Short-time withstand current 6 mm²: 0.72 kA Power-frequency withstand voltage Test voltage setpoint: 2 kV Result: Test passed
Mechanical properties	Mechanical data Open side panel: Yes
Mechanical tests	Mechanical strength Result: Test passed Attachment on the carrier DIN rail/fixing support: NS35 Result: Test passed Test for conductor damage and slackening Rotation speed: 10rpm Revolutions: 135 Conductor cross section/weight: 0.2 mm² / 0.2 kg 4 mm² / 0.9 kg 6 mm² / 1.4 kg Result: Test passed
Environmental and real-life conditions	Needle-flame test Time of exposure: 30 s Result: Test passed Ambient conditions Ambient temperature (operation): -60°C ... 105°C (max. short-term operating temperature RTI Elec.) Ambient temperature (storage/transport): -25°C ... 60°C (for a short time, not exceeding 24h, -60°C to +70°C) Ambient temperature (assembly): -5°C ... 70°C Ambient temperature (actuation): -5°C ... 70°C Permissible humidity (storage/transport): 30 % ... 70 %
Standards and regulations	Connection in acc. with standard: IEC 60947-7-1/IEC 60947-7-2
Mounting	Mounting type: NS 35/7,5 NS35/15
