3048632 PHOENIX CONTACT - Technology Bsa

Caratteristiche Tecniche

Notes	Trade restriction CE note: The products are offered exclusively for export outside the EU and the European Economic Area.
Product properties	Product type: Fuse terminal block Number of connections: 2 Number of rows: 1 Insulation characteristics Overvoltage category: III Degree of pollution: 3
Electrical properties	Fuse type: Glass / ceramics / ... Rated surge voltage: 6 kV Maximum power dissipation for nominal condition: 4 W Fuse: Class CC
Connection data	Number of connections per level: 2 Nominal cross section: 25 mm² Level 1 above 1 below 1 Screw thread: M5 Tightening torque: 2 ... 2.5 Nm Stripping length: 11 mm Internal cylindrical gage: B6 Conductor cross section rigid: 1.5 mm² ... 25 mm² Cross section AWG: 14 ... 4 (converted acc. to IEC) Conductor cross section flexible: 1.5 mm² ... 25 mm² Conductor cross section, flexible [AWG]: 14 ... 4 (converted acc. to IEC) Conductor cross-section flexible (ferrule without plastic sleeve): 1.5 mm² ... 16 mm² Flexible conductor cross section (ferrule with plastic sleeve): 1.5 mm² ... 16 mm² Cross-section with insertion bridge, rigid: 10 mm² Cross-section with insertion bridge, flexible: 10 mm² 2 conductors with same cross section, solid: 1.5 mm² ... 4 mm² 2 conductors with same cross section, flexible: 1.5 mm² ... 4 mm² 2 conductors with same cross section, flexible, with ferrule without plastic sleeve: 1.5 mm² ... 4 mm² 2 conductors with the same cross section, flexible, with TWIN ferrule with plastic sleeve: 1.5 mm² ... 10 mm² Nominal current: 30 A (The voltage is determined by the fuse or selected LED display) Maximum load current: 32 A (the current and voltage are determined by the fuse) Nominal voltage: 600 V (The voltage is determined by the fuse or selected LED display) Nominal cross section: 25 mm²
Dimensions	Width: 54 mm Height: 81 mm Depth on NS35/7,5: 65.5 mm Depth on NS35/15: 73 mm
Material specifications	Color: black Flammability rating according to UL 94: V2 Insulating material group: IIIb Relative insulation material temperature index (Elec., UL 746 B): 125°C
Mechanical properties	Mechanical data Open side panel: No
Environmental and real-life conditions	Ambient conditions Ambient temperature (operation): -60°C ... 85°C (max. short-term operating temperature RTI Elec.) Ambient temperature (storage/transport): -25°C ... 55°C (for a short time, not exceeding 24h, -60°C to +70°C) Ambient temperature (assembly): -5°C ... 70°C Ambient temperature (actuation): -5°C ... 70°C Permissible humidity (storage/transport): 30 % ... 70 %
Mounting	Mounting type: NS 35/7,5 NS35/15

Specifiche

ECLASS	ECLASS-11.0: 27141116 ECLASS-12.0: 27141116 ECLASS-13.0: 27250113
ETIM	ETIM 9.0: EC000899
UNSPSC	UNSPSC 21.0: 39121400

Descrizione

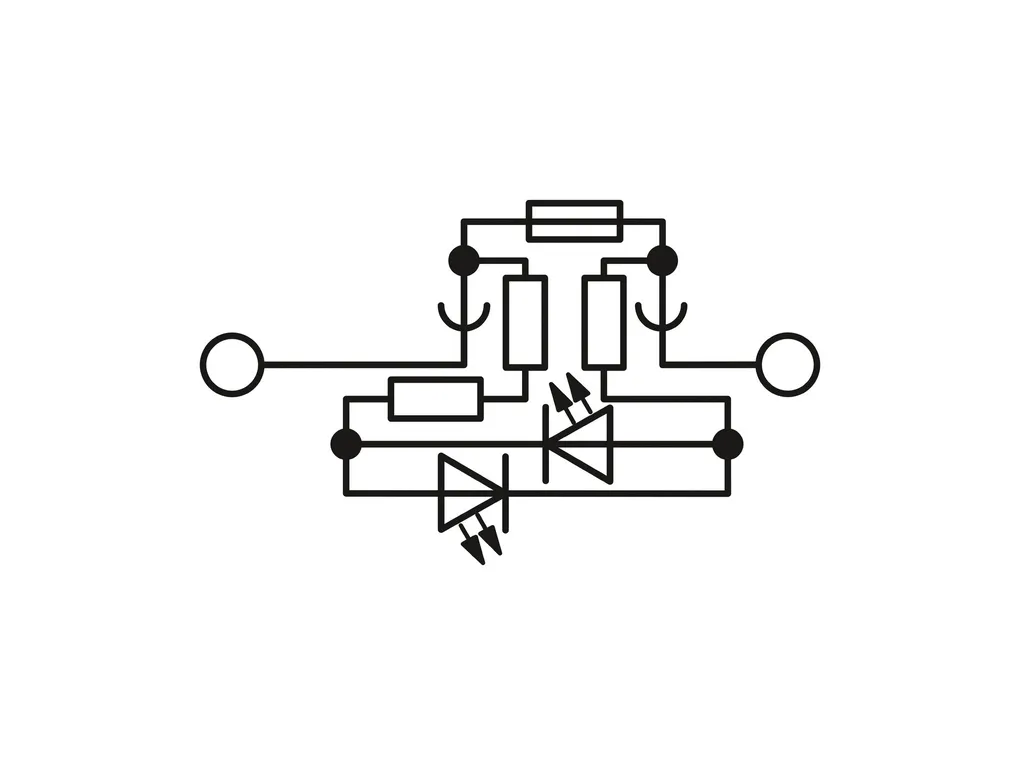

Fuse modular terminal block, fuse type: Glass / ceramics / ..., connection method: Screw connection, cross section: 1.5 mm²- 25 mm², AWG: 16 - 4, nominal current: 32 A, nom. voltage: 600 V, width: 54 mm, fuse type: Class CC, mounting type: NS 35/7,5, NS 35/15, color: black
