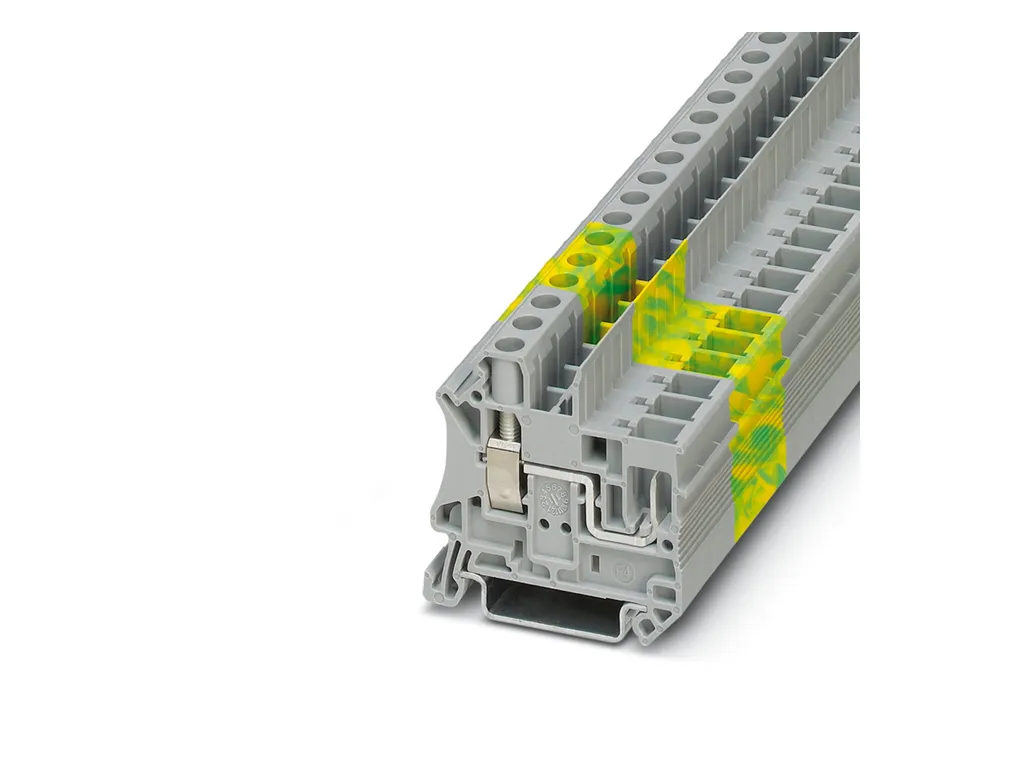

UT 6/1P-PE - Ground terminal

Ground terminal, Current and voltage are determined by the plug used., number of connections: 2, connection method: Screw/plug-in connection, cross section: 0.2 mm²-10 mm², mounting type: NS 35/7,5, NS35/15, color: green-yellow

Cod. Articolo: 3060555

Cod. Fornitore: 3060555

PHOENIX CONTACT

Notes	General: Current and voltage are determined by the plug used. GeneralÃ¢ Note: In plugged-in condition, the most unfavorable paths of the entire plug-in connection are decisive.
Product properties	Product type: Ground terminal block Number of connections: 2 Number of rows: 1 Insulation characteristics Overvoltage category: III Degree of pollution: 3
Electrical properties	Rated surge voltage: 8 kV Maximum power dissipation for nominal condition: 1.31 W
Connection data	Grounding foot: Yes Number of connections per level: 2 Nominal cross section: 6 mm² Rated cross section AWG: 8 Level 1 above 1 below 1 Screw thread: M4 Note: Please observe the current carrying capacity of the DIN rails. Tightening torque: 1.5 ... 1.8 Nm Stripping length: 10 mm Internal cylindrical gage: A5 Connection in acc. with standard: IEC 61984 Conductor cross section rigid: 0.2 mm² ... 10 mm² Cross section AWG: 24 ... 8 (converted acc. to IEC) Conductor cross section flexible: 0.2 mm² ... 10 mm² Conductor cross section, flexible [AWG]: 24 ... 8 (converted acc. to IEC) Conductor cross-section flexible (ferrule without plastic sleeve): 0.25 mm² ... 6 mm² Flexible conductor cross section (ferrule with plastic sleeve): 0.25 mm² ... 6 mm²
Dimensions	Width: 8.2 mm End cover width: 2.2 mm Height: 49.1 mm Depth on NS35/7,5: 47.5 mm Depth on NS35/15: 55 mm
Material specifications	Color: green-yellow Flammability rating according to UL 94: V0 Insulating material group: I Insulating material: PA Static insulating material application in cold: -60°C Relative insulation material temperature index (Elec., UL 746 B): 130°C Fire protection for rail vehicles (DIN EN 45545-2) R22: HL 1 - HL 3 Fire protection for rail vehicles (DIN EN 45545-2) R23: HL 1 - HL 3 Fire protection for rail vehicles (DIN EN 45545-2) R24: HL 1 - HL 3 Fire protection for rail vehicles (DIN EN 45545-2) R26: HL 1 - HL 3 Surface flammability NFPA 130 (ASTM E 162): passed Specific optical density of smoke NFPA 130 (ASTM E 662): passed Smoke gas toxicity NFPA 130 (SMP 800C): passed
Mechanical properties	Mechanical data Open side panel: Yes
Environmental and real-life conditions	Oscillation/broadband noise Specification: DINEN50155 (VDE0115-200):2022-06 Spectrum: Service life test category1, classB, body mounted Frequency: f₁ = 5 Hz to f₂ = 150 Hz ASD level: 0.964 (m/s²)²/Hz Acceleration: 0.58g Test duration per axis: 5 h Test directions: X-, Y- and Z-axis Shocks Specification: DINEN50155 (VDE0115-200):2022-06 Pulse shape: Half-sine Acceleration: 5g Shock duration: 30ms Number of shocks per direction: 3 Test directions: X-, Y- and Z-axis (pos. and neg.) Ambient conditions Ambient temperature (operation): -60°C ... 105°C (max. short-term operating temperature RTI Elec.) Ambient temperature (storage/transport): -25°C ... 60°C (for a short time, not exceeding 24h, -60°C to +70°C) Ambient temperature (assembly): -5°C ... 70°C Ambient temperature (actuation): -5°C ... 70°C Permissible humidity (storage/transport): 30 % ... 70 %
Standards and regulations	Connection in acc. with standard: IEC 61984
Mounting	Mounting type: NS 35/7,5 NS35/15
