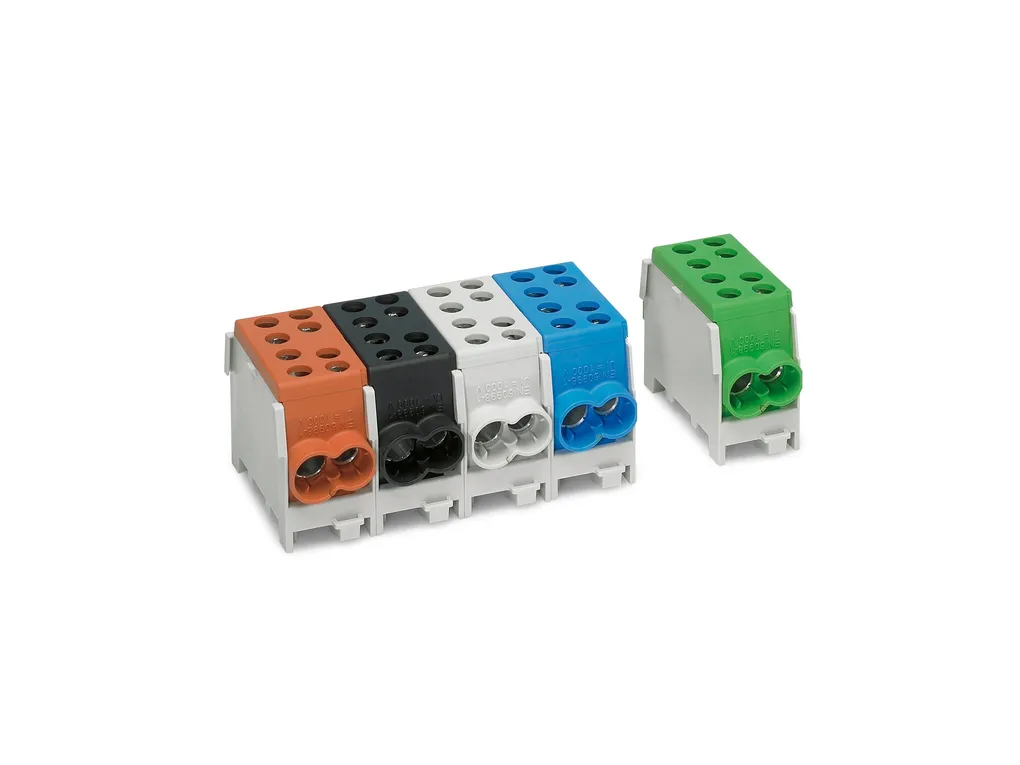

UDB 2X35/25 GN - Trunk line branch terminal

Trunk line branch terminal, nom. voltage: 400 V, nominal current: 125 A, number of connections: 4, number of positions: 1, connection method: Screw connection, 1 level, Rated cross section: 35 mm², cross section: 10 mm²-35 mm², Screw connection, 2nd level, cross section: 1.5 mm²-25 mm², mounting type: NS 35/7,5, NS35/15, color: green

Cod. Articolo: 3071354

Cod. Fornitore: 3071354

PHOENIX CONTACT

Notes	General: Up to 3terminal blocks alignable
Product properties	Product type: Feed-through terminal block Number of positions: 1 Number of connections: 4 Number of rows: 1 Potentials: 1 Insulation characteristics Overvoltage category: III Degree of pollution: 3
Electrical properties	Rated surge voltage: 8 kV Maximum power dissipation for nominal condition: 4.06 W
Connection data	Number of connections per level: 4 Nominal cross section: 35 mm² 1 level Screw thread: M6/M8 Tightening torque: ... 4 Nm Stripping length: 25 mm Connection in acc. with standard: IEC 60998-1 Conductor cross section rigid: 10 mm² ... 35 mm² Cross section AWG: 6 ... 2 (converted acc. to IEC) Conductor cross section flexible: 10 mm² ... 25 mm² Conductor cross section, flexible [AWG]: 6 ... 4 (converted acc. to IEC) Conductor cross-section flexible (ferrule without plastic sleeve): 10 mm² ... 25 mm² Flexible conductor cross section (ferrule with plastic sleeve): 10 mm² ... 16 mm² Nominal current: 125 A Maximum load current: 125 A Nominal voltage: 400 V (max. 1000V) Note: Use ferrules for stranded conductors Nominal cross section: 35 mm² 2nd level Stripping length: 25 mm Connection in acc. with standard: IEC 60998-1 Conductor cross section rigid: 1.5 mm² ... 25 mm² Conductor cross-section flexible (ferrule without plastic sleeve): 1.5 mm² ... 16 mm² Flexible conductor cross section (ferrule with plastic sleeve): 1.5 mm² ... 10 mm²
Dimensions	Width: 27 mm Height: 55 mm Depth on NS35/7,5: 46 mm Depth on NS35/15: 53.5 mm
Material specifications	Color: green Flammability rating according to UL 94: V0 Insulating material group: I Insulating material: PA
Mechanical properties	Mechanical data Open side panel: No
Environmental and real-life conditions	Ambient conditions Ambient temperature (storage/transport): -25°C ... 55°C (for a short time, not exceeding 24h, -60°C to +70°C) Ambient temperature (assembly): -5°C ... 70°C Ambient temperature (actuation): -5°C ... 70°C Permissible humidity (storage/transport): 30 % ... 70 %
Standards and regulations	Connection in acc. with standard: IEC 60998-1
Mounting	Mounting type: NS 35/7,5 NS35/15
