| Notes | General: Ferrules are not included in DIN 46228-4: 1990-09 |

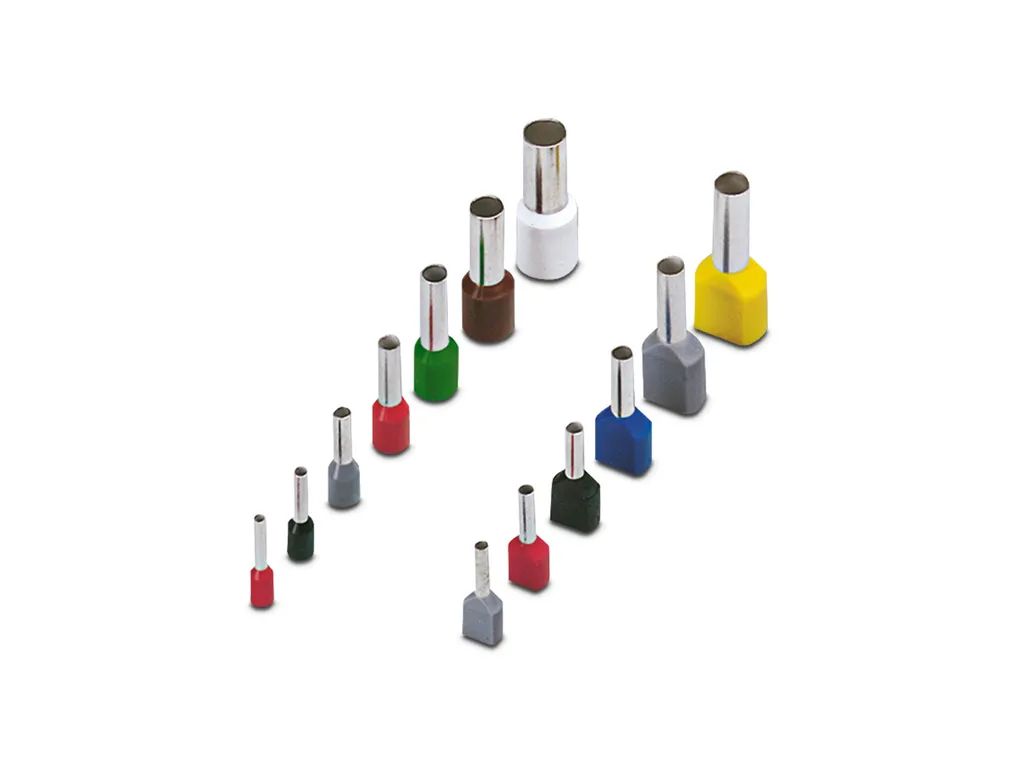

| Product properties | Product type: Cable end sleeve |
| Connection data | Conductor connection Conductor cross section flexible max.: 95 mm² Conductor cross section AWG max.: 4 Stripping length: 30 mm |
| Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/33a19c2f2eb63e4893678c79661dc65b/-S204x204-FJPG Sleeve length: 25 mm Maximum stripping length: 30 mm Ferrule diameter: 14.7 mm Sleeve wall thickness: 0.35 mm Insulating collar thickness: 0.6 mm Inner dimensions of the insulating collar: 18 mm |
| Material specifications | Color: red Material: CU-DHP Flammability rating according to UL 94: HB Coating: tin-plated (galvanic) Components: free from silicone and halogen |
| Mechanical properties | Technical data Sleeve length: 25 mm |
| Environmental and real-life conditions | Ambient conditions Permanent temperature: 105°C (-40°C no load / 0°C dynamic load) Short-term temperature: 120°C |
| Standards and regulations | Design according to standard: Special color |
| ECLASS | ECLASS-11.0: 27400201 ECLASS-13.0: 27400201 ECLASS-12.0: 27400201 |
| ETIM | ETIM 9.0: EC000005 |
| UNSPSC | UNSPSC 21.0: 27121700 |
