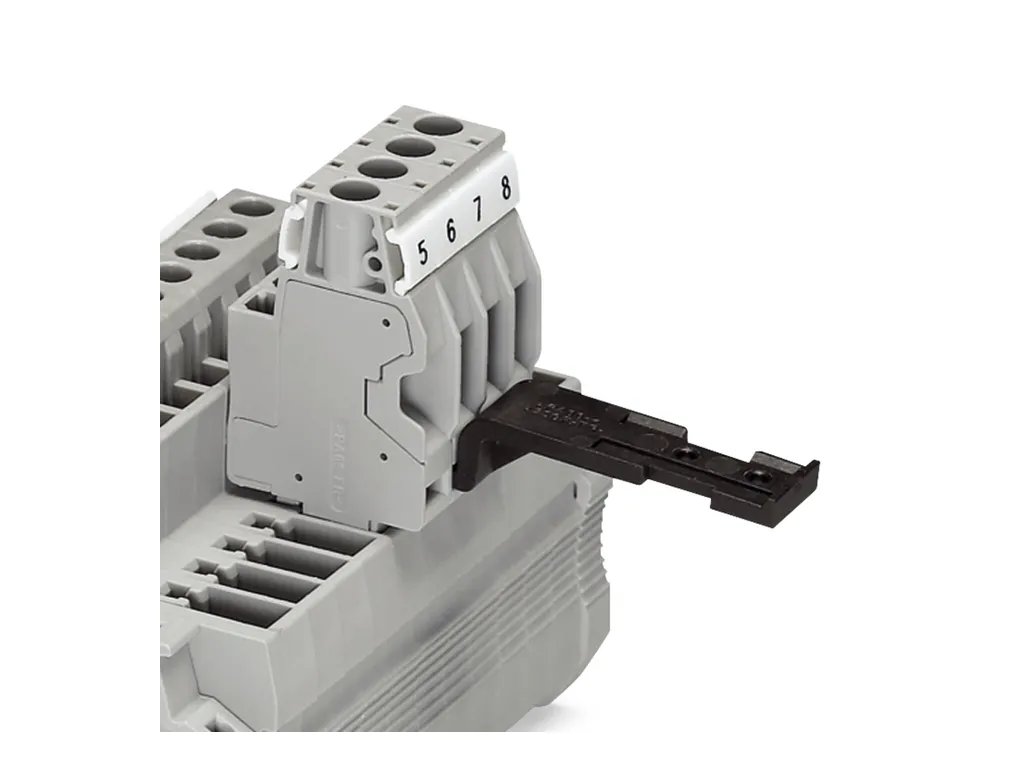

| Product properties | Product type: Strain relief Number of positions: 2 |
| Dimensions | Width: 6.8 mm Height: 44.5 mm |
| Material specifications | Color: black Material: PA-GF Flammability rating according to UL 94: V0 Static insulating material application in cold: -60°C Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21)): 130°C Relative insulation material temperature index (Elec., UL 746 B): 130°C Fire protection for rail vehicles (DIN EN 45545-2) R22: HL 1 - HL 3 Fire protection for rail vehicles (DIN EN 45545-2) R23: HL 1 - HL 3 Fire protection for rail vehicles (DIN EN 45545-2) R24: HL 1 - HL 3 Fire protection for rail vehicles (DIN EN 45545-2) R26: HL 1 - HL 3 Calorimetric heat release NFPA 130 (ASTM E 1354): 28 MJ/kg Surface flammability NFPA 130 (ASTM E 162): passed Specific optical density of smoke NFPA 130 (ASTM E 662): passed Smoke gas toxicity NFPA 130 (SMP 800C): passed |
| ECLASS | ECLASS-11.0: 27141190 ECLASS-12.0: 27141190 ECLASS-13.0: 27141190 |
| ETIM | ETIM 9.0: EC002848 |
| UNSPSC | UNSPSC 21.0: 39121400 |
