UKH 95-FE - High-current terminal block

High-current terminal block, nom. voltage: 1000 V, nominal current: 232 A, number of connections: 2, connection method: Screw connection, Rated cross section: 95 mm², cross section: 25 mm²-95 mm², mounting type: NS35/15, NS32, color: black/yellow

Cod. Articolo: 3247054

Cod. Fornitore: 3247054

PHOENIX CONTACT

Product properties	Product type: High current terminal block Number of connections: 2 Number of rows: 1 Potentials: 1 Insulation characteristics Overvoltage category: III Degree of pollution: 3
Electrical properties	Rated surge voltage: 8 kV Maximum power dissipation for nominal condition: 7.54 W
Connection data	Number of connections per level: 2 Nominal cross section: 95 mm² Level 1 above 1 below 1 Screw thread: M8 Note: Screws with hexagonal socket Note: Product releases, connection cross sections and notes on connecting aluminum cables can be found in the download area. Tightening torque: 15 ... 20 Nm Stripping length: 33 mm Connection in acc. with standard: IEC 60947-7-1 Conductor cross section rigid: 25 mm² ... 95 mm² Cross section AWG: 2 ... 3/0 (converted acc. to IEC) Conductor cross section flexible: 35 mm² ... 95 mm² Conductor cross section, flexible [AWG]: 1/0 ... 3/0 (converted acc. to IEC) Conductor cross-section flexible (ferrule without plastic sleeve): 35 mm² ... 95 mm² Flexible conductor cross section (ferrule with plastic sleeve): 35 mm² ... 95 mm² Cross-section with insertion bridge, rigid: 95 mm² Cross-section with insertion bridge, flexible: 70 mm² 2 conductors with same cross section, solid: 25 mm² ... 35 mm² 2 conductors with same cross section, flexible: 25 mm² ... 35 mm² 2 conductors with same cross section, flexible, with ferrule without plastic sleeve: 16 mm² ... 35 mm² Nominal current: 232 A Maximum load current: 232 A Nominal voltage: 1000 V Nominal cross section: 95 mm²
Ex data	Rated data (ATEX/IECEx) Identification: Ã¯II2GDEx eb IIC Gb Operating temperature range: -60°C ... 110°C Ex-certified accessories: 1201934 VDE-ISS 6 1201659 E/AL-NS 32 1201662 E/AL-NS 35 List of bridges: Insertion bridge / EB 2-25/UKH / 0201362 Insertion bridge / EB 3-25/UKH / 0201375 Bridge data: 177 A / 95 mm² Ex temperature increase: 40 K (238.1A/95mm²) Rated voltage: 880 V at bridging with insertion bridge: 690 V Rated insulation voltage: 800 V output: (Permanent) Ex level General Rated current: 216 A Maximum load current: 216 A Contact resistance: 0.06 mÃ© Ex connection data General Torque range: 15 Nm ... 20 Nm Nominal cross section: 95 mm² Rated cross section AWG: 3/0 Connection capacity rigid: 25 mm² ... 95 mm² Connection capacity AWG: 4 ... 3/0 2 ... 3/0 Connection capacity flexible: 35 mm² ... 95 mm² 2 conductors with same cross section, solid: 25 mm² ... 35 mm² 2 conductors with the same cross-section AWG rigid: 4 ... 2 2 conductors with same cross section, stranded: 25 mm² ... 35 mm² 2 conductors with the same cross-section AWG flexible: 4 ... 2

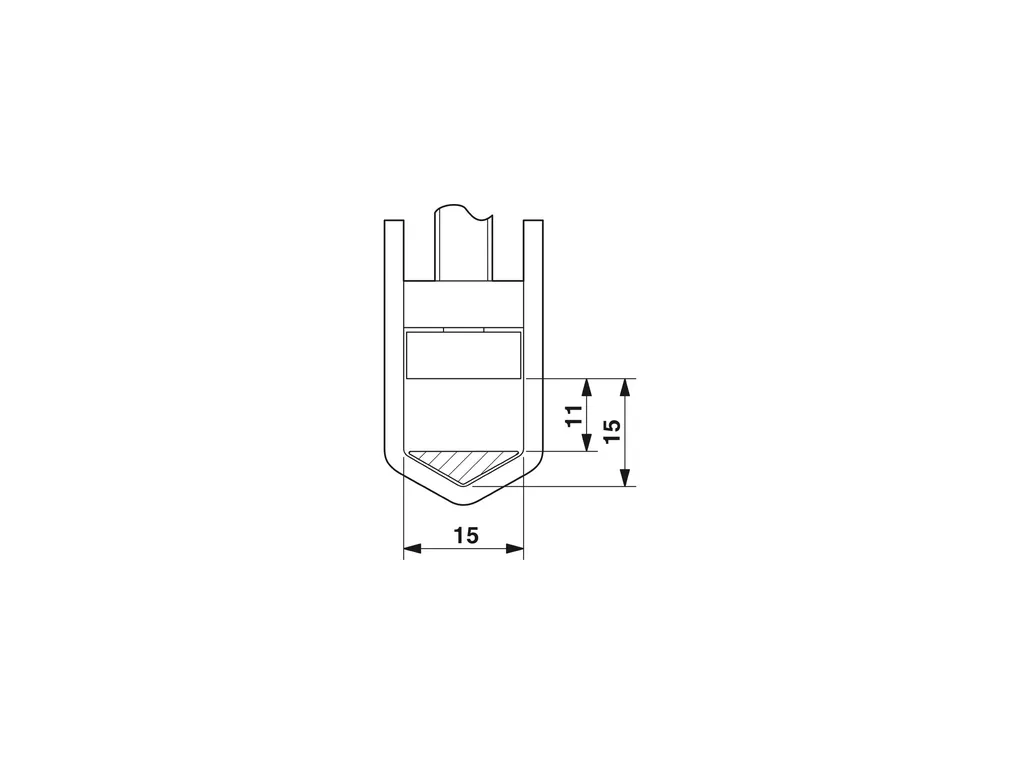

Dimensions	Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/613bd8cba534014b8e844ecac711ed08/-S204x204-FJPG Width: 25 mm Height: 83 mm Depth on NS32: 95 mm Depth on NS35/15: 97.5 mm
Material specifications	Color: black/yellow Flammability rating according to UL 94: V0 Insulating material group: I Insulating material: PA
Electrical tests	Surge voltage test Result: Test passed Temperature-rise test Requirement temperature-rise test: Increase in temperature Ã¢¤45K Result: Test passed Short-time withstand current 95 mm²: 11.4 kA Power-frequency withstand voltage Test voltage setpoint: 2.2 kV Result: Test passed
Mechanical properties	General Terminal block mounting: 15 Nm ... 20 Nm (PE foot with mounting screw, M8) Mechanical data Open side panel: No
Mechanical tests	Mechanical strength Result: Test passed Attachment on the carrier DIN rail/fixing support: NS32/NS35 Result: Test passed Test for conductor damage and slackening Rotation speed: 10 (+/- 2) rpm Revolutions: 135 Conductor cross section/weight: 25 mm² / 4.5 kg 35 mm² / 6.8 kg 95 mm²/14 kg Result: Test passed
Environmental and real-life conditions	Needle-flame test Time of exposure: 30 s Result: Test passed Oscillation/broadband noise Specification: DINEN50155 (VDE0115-200):2022-06 Spectrum: Service life test category2, bogie-mounted Frequency: f₁ = 5 Hz to f₂ = 250 Hz ASD level: 6.12 (m/s²)²/Hz Acceleration: 3.12g Test duration per axis: 5 h Test directions: X-, Y- and Z-axis Result: Test passed Shocks Specification: DINEN50155 (VDE0115-200):2022-06 Pulse shape: Half-sine Acceleration: 5g Shock duration: 30ms Number of shocks per direction: 3 Test directions: X-, Y- and Z-axis (pos. and neg.) Result: Test passed Ambient conditions Ambient temperature (storage/transport): -25°C ... 60°C (for a short time, not exceeding 24h, -60°C to +70°C) Ambient temperature (assembly): -5°C ... 70°C Ambient temperature (actuation): -5°C ... 70°C Permissible humidity (storage/transport): 30 % ... 70 %
Standards and regulations	Connection in acc. with standard: IEC 60947-7-1
Mounting	Mounting type: NS35/15 NS32 Terminal block mounting: 15 Nm ... 20 Nm (PE foot with mounting screw, M8)
