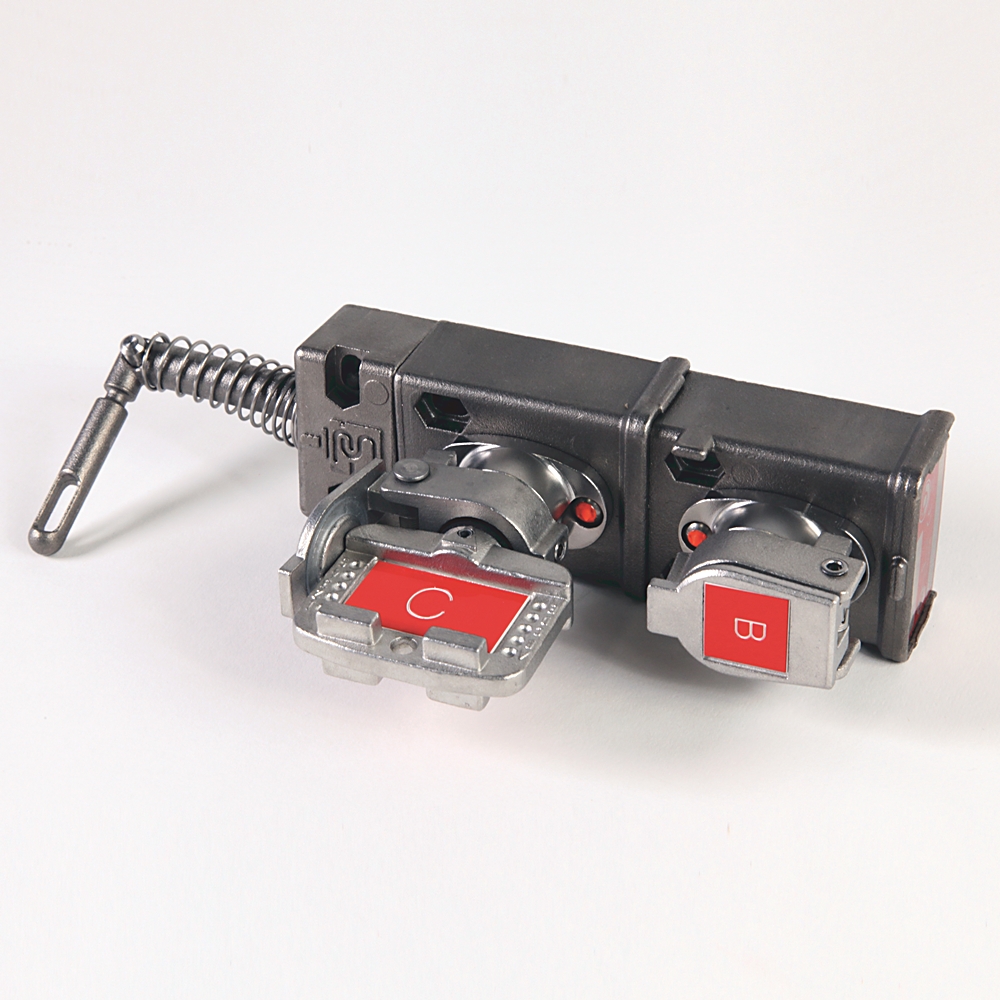

440T-MDSLE11AABA ROCKWELL AUTOMATION

Trapped Key Interlock, SlamLock Mech PrimTrap SecFree, PrimKeyTrappd S.KeyFullyFlex A, Primary Code, Aa, Secondary Code, Ba

Trapped Key Interlock Switch, Slamlock, Standard Key Code Labeling, Mechanical, Dual Key, Actuator Inserted (Guard is secure)

Cod. Articolo: 440T-MDSLE11AABA

Cod. Fornitore: 440T-MDSLE11AABA

ROCKWELL AUTOMATION

Type of accessory/spare part	Mechanical locking
Width	48 mm
Height	151 mm
Depth	34 mm
Type of switch	Slamlock mechanical, primary trapped, secondary free
Operating temperature	-40 Ã°C
Ambient temperature	-10 Ã°C
Key code 1 position 1	Code 1 position 1 - code A
Key code 1 position 2	Code 1 position 2 - code A
Key code 2 position 1	Code 2 position 1 - code B
Key code 2 position 2	Code 2 position 2 - code A
Weight	Dual key: 1.33 kg (2.93 lb)
Mounting	DSS: 4 x M5 counterbored from top or 4 x M5 from underside with nuts
Key condition	Primary key trapped, secondary key free to release fully flexible actuator
Features	316L stainless steel construction, Selection of actuator types available, Direct drive operation, Replaceable code barrel assembly, Fitted with tamper resistant screws, Weatherproof stainless steel dust cap as standard, Multiple key options
Torque to key	14 Nm
Relative humidity	95 %
Shear force to key	15.1 kN
Holding force, max	2000 N
Mechanical life operations	200000
Utilization category	AC-15 (Ue/Ie: 500V/1 A, 250V/2 A, 100V/5A)
Description	Trapped key interlock switch
Auxiliary contacts	1 NO
