HC-BS-PG9 - Screw plug

Screw plug, material for screw connection: Brass, nickel-plated, connecting thread: Pg9, color: silver

Product Code: 1046669 Copia - Copy

Partner cod.: 1046669 Copia - Copy

PHOENIX CONTACT

Tecnichal data

Download

Tecnichal data

Product properties	Product type: Plug for cable screw gland
Connection data	Tightening torque: 4.1 Nm

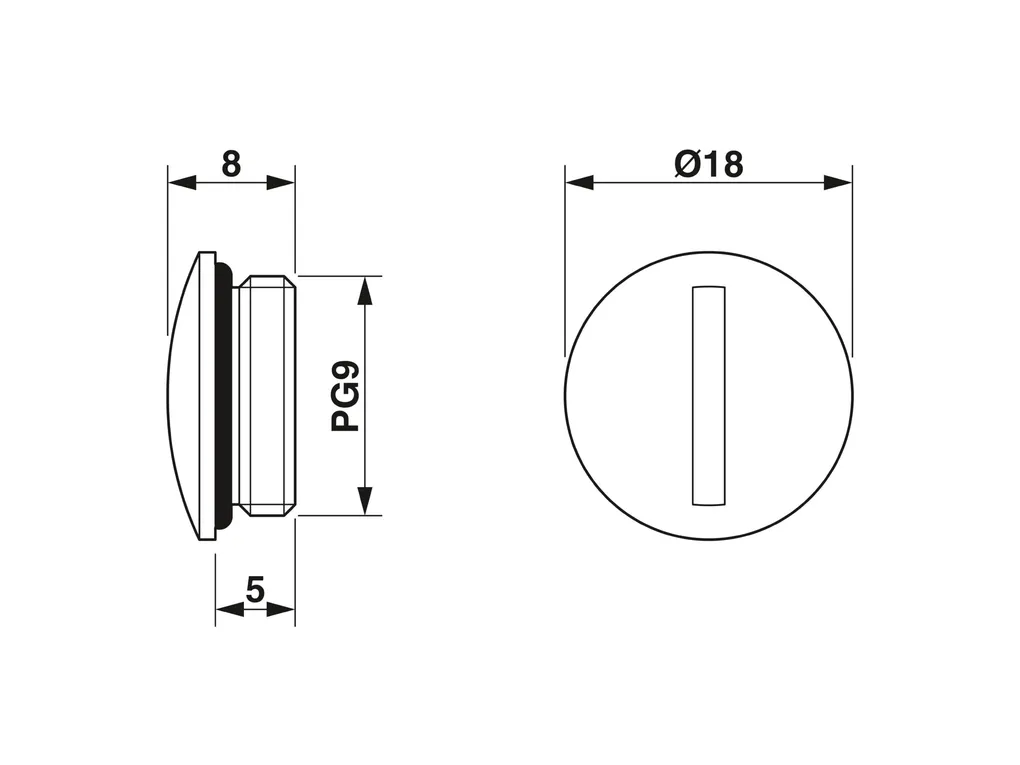

Dimensions	Dimensional drawing: https://caas.production.phoenixcontact.coremedia.cloud/caas/v1/stable/media/22490/full/b250?format=jpg Length: 8 mm Length of the connecting thread: 5 mm Diameter: 18 mm Thread type connection side: Pg9
Material specifications	Color: Brass Seal material O-ring: NBR Housing surface material: Nickel Material for screw connection: Brass, nickel-plated
Environmental and real-life conditions	Ambient conditions Degree of protection: IP68

Download

PER SCARICARE I DOCUMENTI E' NECESSARIO EFFETTUARE L'ACCESSO AL SITO

Manufacturer_declaration_06004.pdf

Technical_drawing_06435.pdf
