FKDSO 2,5/ 4-L GY LCBK - PCB terminal block
![](https://www.technologybsa.com/wp-content/uploads/2023/08/copia.png)
![](https://www.technologybsa.com/wp-content/uploads/2023/08/copia.png)
Product properties | Product type: Printed circuit board terminal Product family: FKDSO 2,5/..-L Number of positions: 4 Pitch: 5 mm Number of connections: 4 Number of rows: 1 Number of potentials: 4 Pin layout: Linear pinning Solder pins per potential: 1 |
Electrical properties | Nominal current IN: 22 A Nominal voltage UN: 250 V Degree of pollution: 3 Rated voltage (III/3): 250 V Rated surge voltage (III/3): 4 kV Rated voltage (III/2): 250 V Rated surge voltage (III/2): 4 kV Rated voltage (II/2): 630 V Rated surge voltage (II/2): 4 kV |
Connection data | Connection technology Nominal cross section: 2.5 mm² Conductor connection Connection method: Push-in spring connection Conductor cross section rigid: 0.2 mm² ... 2.5 mm² Conductor cross section flexible: 0.2 mm² ... 2.5 mm² Conductor cross section AWG: 24 ... 14 Conductor cross section flexible, with ferrule without plastic sleeve: 0.25 mm² ... 2.5 mm² Conductor cross section, flexible, with ferrule, with plastic sleeve: 0.25 mm² ... 2.5 mm² 2 conductors with the same cross section, flexible, with TWIN ferrule with plastic sleeve: 0.5 mm² ... 1.5 mm² Stripping length: 10 mm |
Mounting | Mounting type: Wave soldering Pin layout: Linear pinning Connection method: Push-in spring connection |
Material specifications | Material data - contact Note: WEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/JEDEC JESD 201 Contact material: Cu alloy Surface characteristics: Tin-plated Metal surface terminal point (top layer): Tin (5 - 7 µm Sn) Metal surface soldering area (top layer): Tin (5 - 7 µm Sn) Material data - housing Color (Housing): gray (7042) Insulating material: PA Insulating material group: I CTI according to IEC 60112: 600 Flammability rating according to UL 94: V0 Material data â actuating element Insulating material: PBT GF Insulating material group: IIIa CTI according to IEC 60112: 275 Flammability rating according to UL 94: V0 |
Notes | Safety note Safety note: ⢠WARNING: Commission properly functioning products only. The products must be regularly inspected for damage. Decommission defective products immediately. Replace damaged products. Repairs are not possible. ⢠WARNING: Only electrically qualified personnel may install and operate the product. They must observe the following safety notes. The qualified personnel must be familiar with the basics of electrical engineering. They must be able to recognize and prevent danger. The relevant symbol on the packaging indicates that only personnel familiar with electrical engineering are allowed to install and operate the product. ⢠The item is intended to be an unencapsulated plug for installation in a housing. |
Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/158b0afe23d1ab408f646eacfe25f655/-S204x204-FJPG Pitch: 5 mm Width [w]: 20.9 mm Height [h]: 19.05 mm Length [l]: 18.8 mm Solder pin length [P]: 3.5 mm Pin dimensions: 0.8 x 1 mm PCB design Pin spacing: 5.08 mm Hole diameter: 1.4 mm |
Mechanical tests | Test for conductor damage and slackening Specification: IEC 60999-1:1999-11 Result: Test passed Pull-out test Specification: IEC 60999-1:1999-11 Conductor cross section/conductor type/tractive force setpoint/actual value: 0.2 mm² / solid / > 10 N 2.5 mm² / solid / > 50 N 0.2 mm² / flexible / > 10 N 4 mm² / flexible / > 60 N |
Electrical tests | Temperature-rise test Specification: IEC 60947-7-4:2013-08 Requirement temperature-rise test: The sum of ambient temperature and temperature rise of the PCB terminal block shall not exceed the upper limiting temperature. Short-time withstand current Specification: IEC 60947-7-4:2013-08 Insulation resistance Specification: IEC 60512-3-1:2002-02 Insulation resistance, neighboring positions: >1Té Air clearances and creepage distances | Specification: IEC 60947-1:2007-06 + A1:2010-12 Insulating material group: I Comparative tracking index (IEC 60112): CTI 600 Rated insulation voltage (III/3): 250 V Rated surge voltage (III/3): 4 kV minimum clearance value - non-homogenous field (III/3): 3 mm minimum creepage distance (III/3): 3.2 mm Rated insulation voltage (III/2): 250 V Rated surge voltage (III/2): 4 kV minimum clearance value - non-homogenous field (III/2): 3 mm minimum creepage distance (III/2): 1.25 mm Rated insulation voltage (II/2): 630 V Rated surge voltage (II/2): 4 kV minimum clearance value - non-homogenous field (II/2): 3 mm minimum creepage distance (II/2): 3.2 mm |

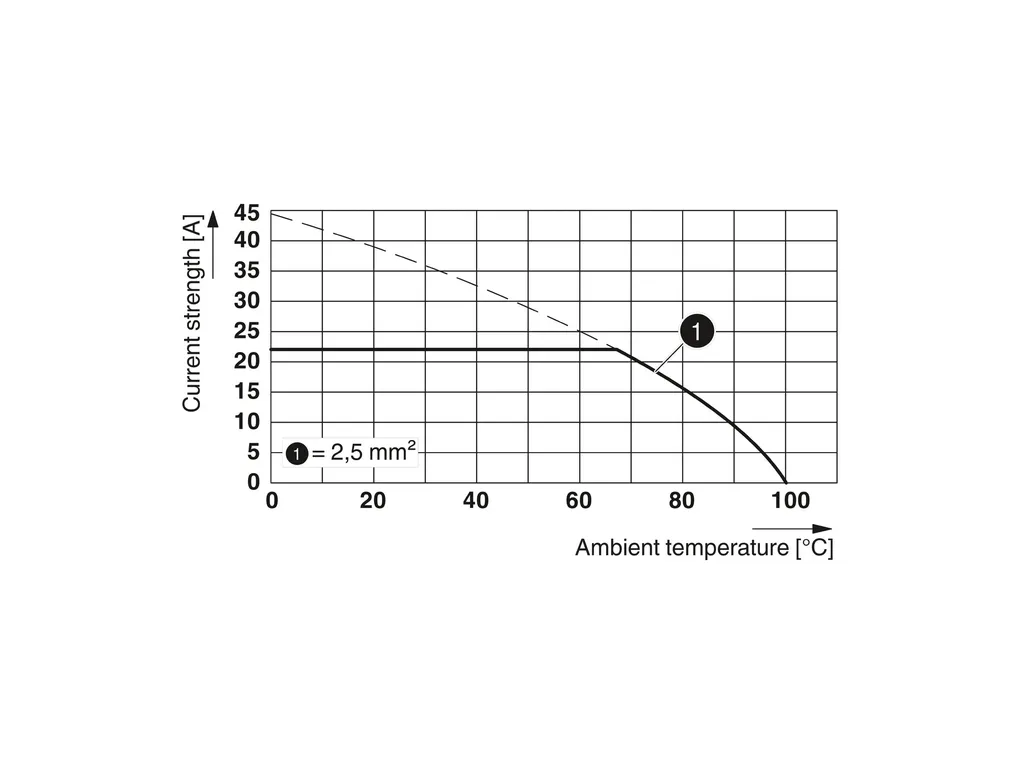

Environmental and real-life conditions | Vibration test Specification: IEC 60068-2-6:2007-12 Frequency: 10 - 150 - 10 Hz Sweep speed: 1octave/min 5g (60.1Hz...150Hz) Amplitude: 0.35mm (10Hz...60.1Hz) Test duration per axis: 2.5 h Glow-wire test Specification: IEC 60695-2-10:2013-04 Temperature: 850°C Time of exposure: 5 s Aging Specification: IEC 60947-7-4:2013-08 Ambient conditions Ambient temperature (operation): -40°C ... 105°C (Depending on the current carrying capacity/derating curve) Ambient temperature (storage/transport): -40°C ... 55°C Relative humidity (storage/transport): 30 % ... 70 % Ambient temperature (assembly): -5°C ... 100°C |
ECLASS | ECLASS-11.0: 27460101 ECLASS-12.0: 27460101 ECLASS-13.0: 27460101 |
ETIM | ETIM 8.0: EC002643 |
UNSPSC | UNSPSC 21.0: 39121400 |
