1070199 PHOENIX CONTACT - Technology Bsa

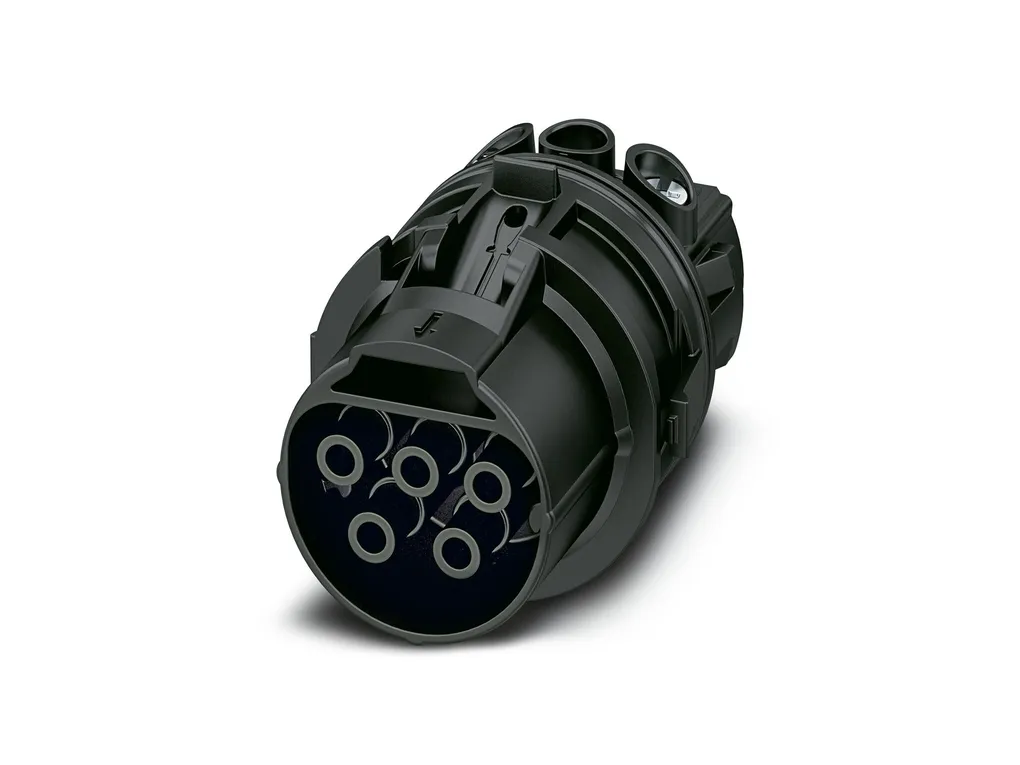

PRC 5-HEAD-MS6-2 - Contact carrier

Contact carrier, Range of articles: PRC 35, housing material: PPE, color: black, number of positions: 5, min. conductor cross section: 1.5 mm², max. conductor cross section: 6 mm², rated voltage: 690 V AC, rated current: 35 A, Connection method: Screw connection, Contact connection type: Pin. Contact insert without connector housing. Please order the appropriate connector housings according to the accessories list.

Product Code: 1070199

Partner cod.: 1070199

PHOENIX CONTACT

Notes	General: Contact insert without connector housing. Please order the appropriate connector housings according to the accessories list. For assembly notes, please refer to the packing slip Safety note Safety note: Ã¢¢ WARNING: Commission properly functioning products only. The products must be regularly inspected for damage. Decommission defective products immediately. Replace damaged products. Repairs are not possible. Ã¢¢ WARNING: Only electrically qualified personnel may install and operate the product. They must observe the following safety notes. The qualified personnel must be familiar with the basics of electrical engineering. They must be able to recognize and prevent danger. The relevant symbol on the packaging indicates that only personnel familiar with electrical engineering are allowed to install and operate the product. WARNING: The connectors may not be plugged in or disconnected under load. Ignoring the warning or improper use may damage persons and/or property. Ã¢¢ Assembled products may not be manipulated or improperly opened. Ã¢¢ Only use mating connectors that are specified in the technical data of the standards listed (e.g. the ones listed in the product accessories online at phoenixcontact.com/products). Ã¢¢ When using the product in direct connection with third-party manufacturers, the user is responsible. Ã¢¢ For operating voltages > 50V AC, conductive connector housings must be grounded Ã¢¢ Ensure that the protective or functional ground has been properly connected. Ã¢¢ VDE 0100/1.97 § 411.1.3.2 and DIN EN 60 204/11.98 § 14.1.3 are applicable when combining several circuits in a cable and/or connector Ã¢¢ Observe the corresponding technical data. You will find information: o On the product o On the packing label o In the supplied documentation o Online at phoenixcontact.com/products under the product Ã¢¢ Only use tools recommended by PhoenixContact Ã¢¢ The installation notes/Design In documents online on the download page at phoenixcontact.com/products must be observed for this product. Ã¢¢ Use a protective cap to protect connectors that are not in use. The suitable accessories are available online in the accessory section of the product at phoenixcontact.com/products Ã¢¢ Operate the connector only when it is fully plugged in. Ã¢¢ Operate the connector only when it is fully plugged in and interlocked. Ã¢¢ Ensure that when laying the cable, the tensile load on the connectors does not exceed the upper limit specified in the standards. Ã¢¢ Observe the minimum bending radius of the cable. Lay the cable without twisting it. Ã¢¢ The connector warms up in normal operation. Depending on the ambient conditions, the surface of the connector can continue to warm up. In this case, the user is responsible for posting warnings (e.g. DIN EN ISO 13732-1:2008-12).
Product properties	Product type: Contact insert Product family: PRC 35 Number of positions: 5 Connection profile: 4+PE Coding: AD Insulation characteristics Protection class: II Degree of pollution: 2
Electrical properties	Rated voltage (III/2): 690 V Nominal voltage ATD: 690 V AC (III/2) in accordance with IEC 61984 600 V AC (III/2) 500 V DC (III/2) in accordance with IEC 61535, when mounted Rated surge voltage (III/2): 8 kV Rated current: 35 A (With 6mm² conductor cross section in accordance with IEC 61984) 32 A (With 6mm² conductor cross section in accordance with IEC 61535) 21.4 A (With 6mm² conductor cross section and 85°Cin accordance with 2 PfG 1915) 35 A (with AWG10, in accordance with UL2237)
Dimensions	Width: 35.9 mm Height: 34.5 mm Length: 48.4 mm
Material specifications	Color: black Color of the housing part: black Material: EPDM PPE CuZn Flammability rating according to UL 94: V0 Insulating material group: I / CTI 600 Seal material: EPDM Contact material: Cu alloy Contact surface material: silver-plated Contact carrier material: PPE O-ring material: EPDM Housing material: PPE
Cable/line	Single wire, cross section: 1.5 mm² 6 mm² Stripping length of the individual wire: 12 mm (Lay PE conductor 8mm leading) Halogen-free: yes
Mechanical properties	Mechanical data Insertion/withdrawal cycles: 2000 (Test specification: IEC 60512-13-2)
Environmental and real-life conditions	Ambient conditions Degree of protection: IP66 / IP68 (2m / 24h) / IP69K (when mounted) IP66 / IP68 (2m / 24h) / IP69K Ambient temperature (operation): -40°C ... 105°C (dependent on the derating curve) Ambient temperature (storage/transport): -40°C ... 70°C Ambient temperature (assembly): -5°C ... 85°C
Mounting	Connection method: Screw connection
