Notes | General: Not suitable for M12 push-pull connectors. NOTE: Observe the permissible bending radii when laying conductors, since the degree of protection may be put in jeopardy if the bending forces are too high. Alleviate mechanical loads upstream of the connector, e.g.by using cable ties. Unused slots are to be sealed off prior to commissioning. Suitable sealing elements are to be found under "Accessories". |
Product properties | Product type: Distributor boxes with M8 to M12 slots Number of positions: 5 Application: Standard Number of slots: 8 Coding: A |
Material specifications | Material: Die-cast zinc PUR Flammability rating according to UL 94: V0 Seal material O-ring: FKM Contact material: Cu alloy Contact surface material: gold-plated Contact carrier material: PA |

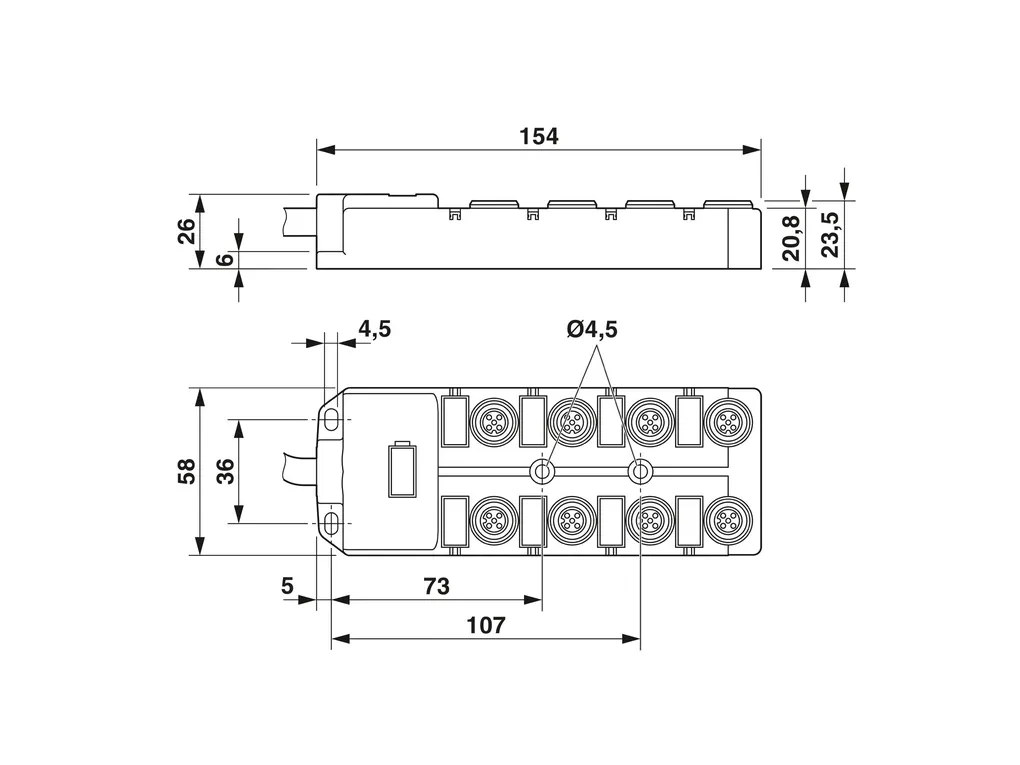

Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/59e6d8d3c71c6c4ab238b09e2b1d601b/-S204x204-FJPG Width: 58 mm Height: 26 mm Length: 153 mm |
Connection data | Conductor connection Connection method: Fixed connection Tightening torque slot sensor/actuator cable: 0.4 Nm Pin assignment Slot/position = Wire color or connection: 1 / 4 (A)=WH 1 / 2 (B)=GYPK 2 / 4 (A)=GN 2 / 2 (B)=RDBU 3 / 4 (A)=YE 3 / 2 (B)=WHGN 4 / 4 (A)=GY 4 / 2 (B)=BNGN 5 / 4 (A)=PK 5 / 2 (B)=WHYE 6 / 4 (A)=RD 6 / 2 (B)=YEBN 7 / 4 (A)=BK 7 / 2 (B)=WHGY 8 / 4 (A)=VT 8 / 2 (B)=GYBN 1-8 / 1 (+ 48 V)=BN 1-8 / 3 (0 V)=BU 1-8 / 5 (PE)=GNYE |
Signaling | Status display present: No |
Electrical properties | Nominal voltage UN: 48 VAC 60 VDC Rated current, total: 12 A (up to 40°C) Max. current carrying capacity per path: 2 A Current carrying capacity per slot: 4 A |
Cable/line | Cable length: 5 m PUR/PVC shielded, black[PUR] Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/9c0d5b139ce12045a6daef336e423e07/-S204x204-FJPG Number of positions: 19 Shielded: yes Cable type: PUR/PVC shielded, black[PUR] Conductor structure signal line: 64x 0.10 mm AWG signal line: 20 Conductor cross section: 16x 0.5 mm² (Signal line) 3x 1 mm² (Power supply) External cable diameter: 11.6 mm ±0.3mm Outer sheath, material: PUR External sheath, color: deep black RAL 9005 Conductor material: Bare Cu litz wires Material wire insulation: PVC Single wire, color: brown, blue, green/yellow, white, green, yellow, gray, pink, red, black, violet, gray/pink, red/blue, white/green, brown/green, white/yellow, yellow/brown, white/gray, gray/brown Overall twist: Wires twisted in layers Nominal voltage, cable: 300 V Test voltage: 2000 V Max. bending cycles: 1500000 Flame resistance: DINEN50265 Resistance to oil: according to VDE 0472 Part 803 Other resistance: Highly resistant to acids, alkaline solutions and solvents Special properties: Silicone-free Free of substances which would hinder coating with paint or varnish Ambient temperature (operation): -40°C ... 90°C (cable, fixed installation) -5°C ... 80°C (Cable, flexible installation) |
Standards and regulations | M12 Standard designation: M12 connector Standards/specifications: IEC 61076-2-101 |
Environmental and real-life conditions | Ambient conditions Degree of protection: IP65 Ambient temperature (operation): -25°C ... 70°C |
ECLASS | ECLASS-11.0: 27440108 ECLASS-12.0: 27440108 ECLASS-13.0: 27440108 |
ETIM | ETIM 9.0: EC002585 |
UNSPSC | UNSPSC 21.0: 31251500 |
