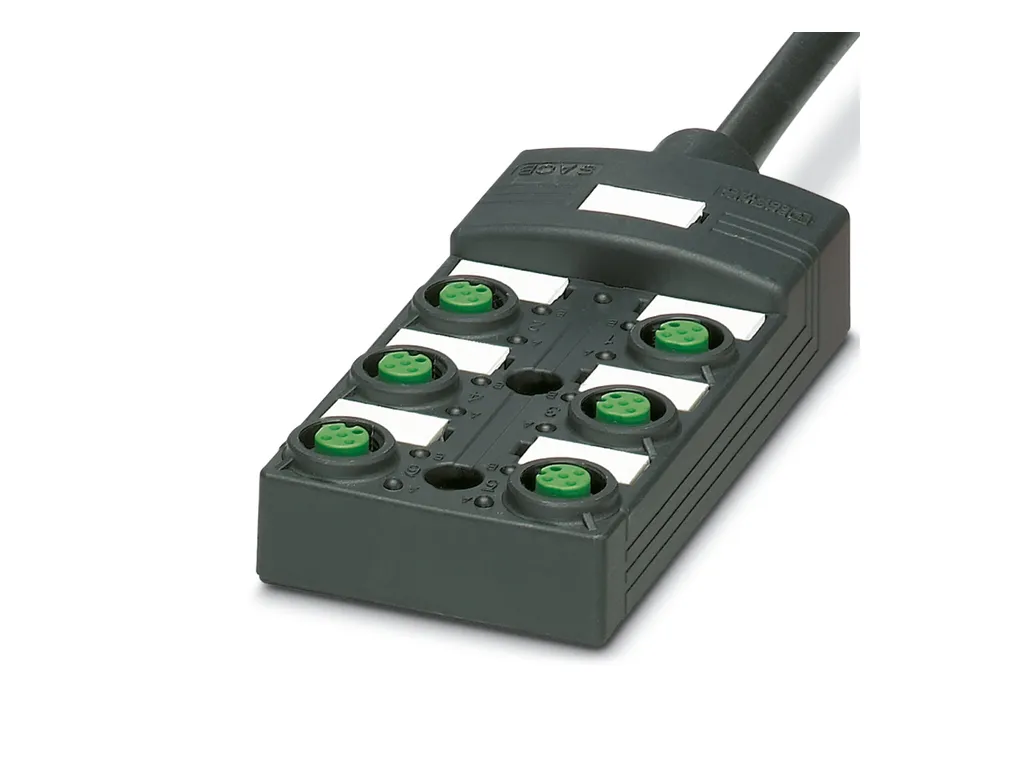

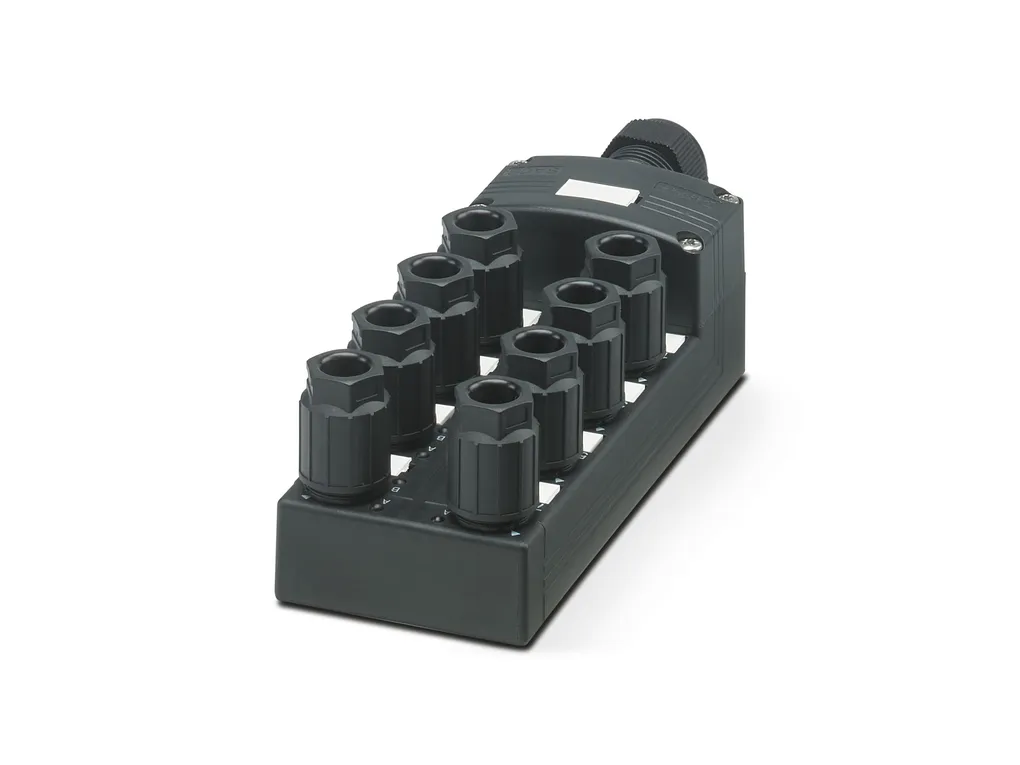

SACB-8/16-L-C QO - Distributor box

Distributor box, connection method: QUICKON, 0.14 mm² ... 0.75 mm², number of slots: 8, number of positions: 5, slot assignment: Double, status display: Yes, pnp; master cable connection: Pluggable screw connection 180°, shielding: no, When connecting 5conductors, max. 0.5mm² can be connected

Product Code: 1156006

Partner cod.: 1156006

PHOENIX CONTACT

Notes	General: NOTE: Observe the permissible bending radii when laying conductors, since the degree of protection may be put in jeopardy if the bending forces are too high. Alleviate mechanical loads upstream of the connector, e.g.by using cable ties. Unused slots are to be sealed off prior to commissioning. Suitable sealing elements are to be found under "Accessories".
Product properties	Product type: Distributor box Number of positions: 5 Number of slots: 8 LED: yes
System properties	Local diagnostics Monitored function: Supply voltage per module Optical representation: Green LED
Electrical properties	Max. operating voltage U_max: 30 VDC Local diagnostics: Supply voltage per module Green LED Status display I/O Yellow LED Nominal voltage U_N: 24 VDC Rated current, total: 10 A Max. current carrying capacity per path: 2 A Current carrying capacity per slot: 4 A
Signaling	Status display present: Yes

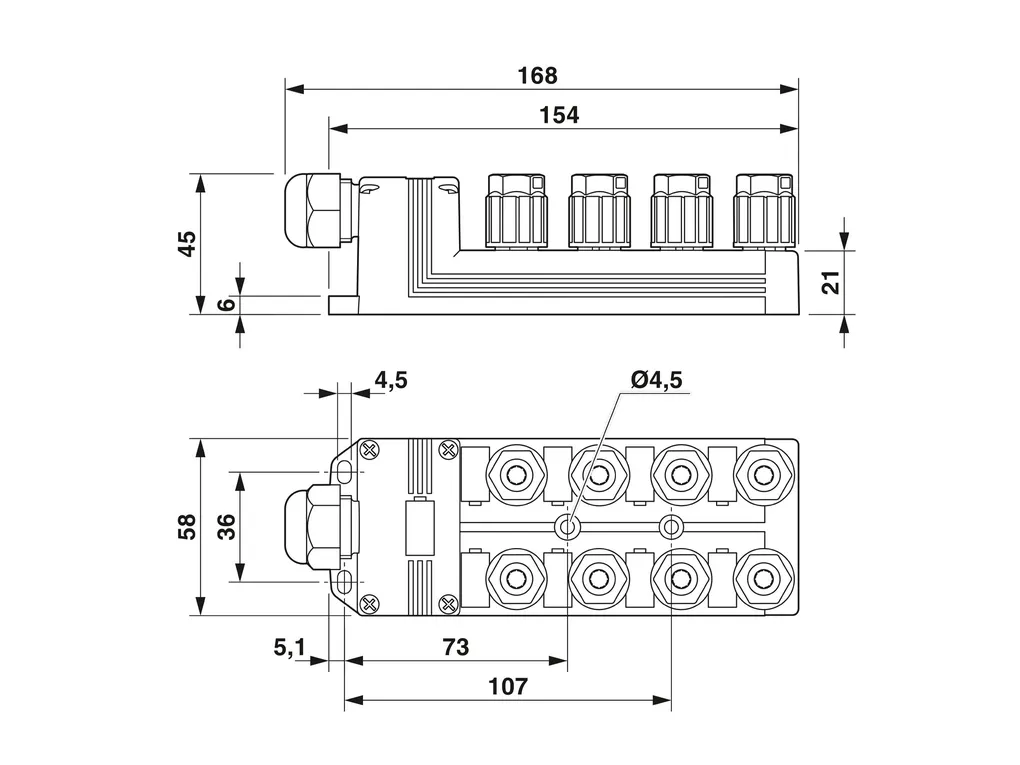

Dimensions	Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/ff6a8cf169baa74da112f78d52d41a80/-S204x204-FJPG Width: 58 mm Height: 45 mm Length: 168 mm Wrench size, union nut: 16 mm
Material specifications	Material: PBT PUR Flammability rating according to UL 94: V0 Seal material O-ring: FKM Seal material: FKM Contact material: Steel/copper Contact surface material: Sn Contact carrier material: PA 6.6 Material of contact, master cable side: CU alloy Material of the contact carrier on the master cable side: PA 6.6 V0 Material of contact surface, master cable side: Ni Conductor data Wire insulation material: PVC / PE / PP / rubber
Cable/line	Sensor/actuator connection system: QUICKON Connection method: Pluggable screw connection External cable diameter: 7 mm ... 12 mm Stripping length (signal): 7 mm Stripping length for sheath: 50 mm (Master cable) Tightening torque, cover screw: 0.35 Nm Tightening torque of mounting screw for fixing the housing: 0.5 Nm Tightening torque, union nut: 2.5 Nm
Environmental and real-life conditions	Ambient conditions Degree of protection: IP65 Ambient temperature (operation): -30°C ... 80°C -5°C ... 50°C (During assembly)
