1155996 PHOENIX CONTACT - Technology Bsa

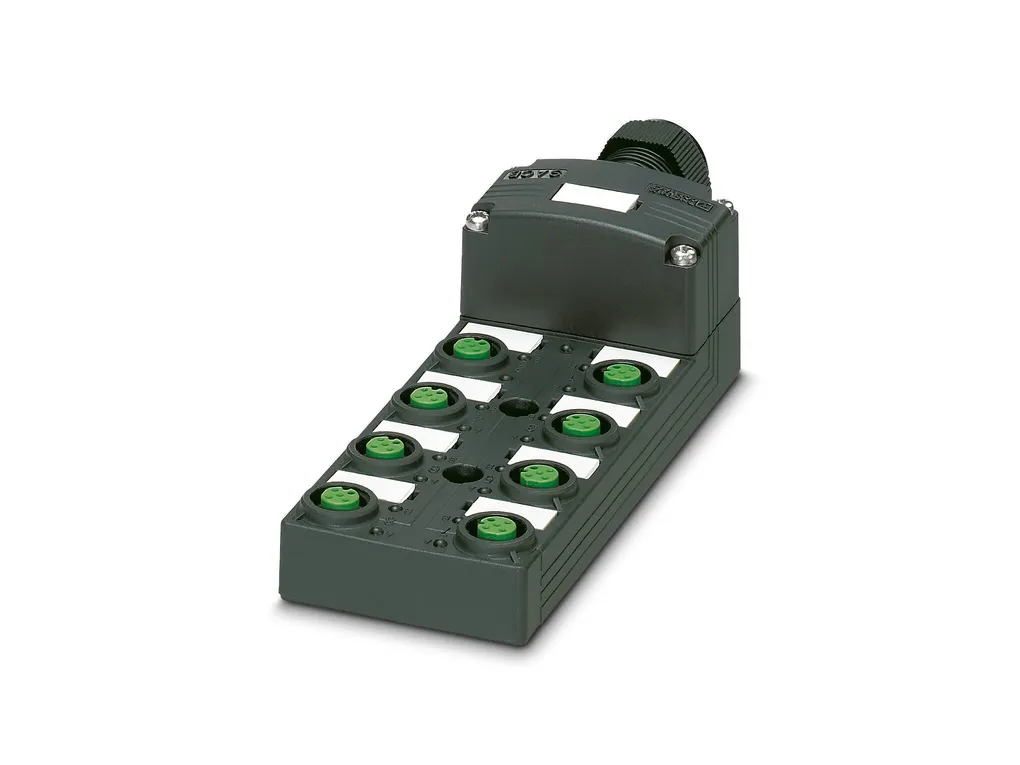

SACB-8/16-M23 P12 SH - Distributor box

Distributor box, application: Standard, connection method: M12 socket Metal, number of slots: 8, number of positions: 5, coding: A, slot assignment: Double, status display: No, Universal; master cable connection: M23 plug connection 180°, shielding: yes

Product Code: 1155996

Partner cod.: 1155996

PHOENIX CONTACT

Notes	General: Not suitable for M12 push-pull connectors. NOTE: Observe the permissible bending radii when laying conductors, since the degree of protection may be put in jeopardy if the bending forces are too high. Alleviate mechanical loads upstream of the connector, e.g.by using cable ties. Unused slots are to be sealed off prior to commissioning. Suitable sealing elements are to be found under "Accessories".
Product properties	Product type: Distributor boxes with M8 to M12 slots Number of positions: 5 Application: Standard Number of slots: 8 Coding: A
Material specifications	Material: Die-cast zinc PUR Flammability rating according to UL 94: V0 Seal material O-ring: FKM Contact material: Cu alloy Contact surface material: gold-plated Contact carrier material: PA Material of contact, master cable side: CU alloy Material of the contact carrier on the master cable side: PBT Material of contact surface, master cable side: gold-plated

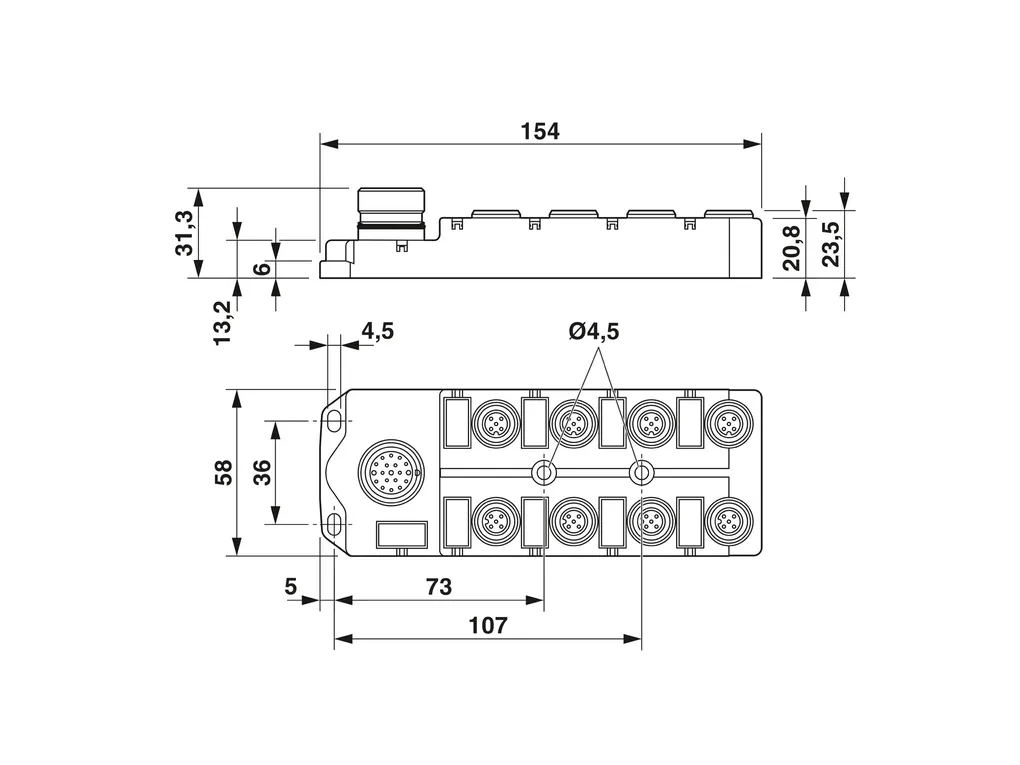

Dimensions	Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/f8fa11d2a133264db0e2fbc3a37737e8/-S204x204-FJPG Width: 58 mm Height: 36 mm Length: 160 mm
Connection data	Conductor connection Connection method: M23 plug connection Tightening torque slot sensor/actuator cable: 0.4 Nm Pin assignment Slot/position = Wire color or connection: 1 / 4 (A)=15 1 / 2 (B)=7 2 / 4 (A)=5 2 / 2 (B)=4 3 / 4 (A)=16 3 / 2 (B)=8 4 / 4 (A)=3 4 / 2 (B)=14 5 / 4 (A)=17 5 / 2 (B)=9 6 / 4 (A)=2 6 / 2 (B)=13 7 / 4 (A)=11 7 / 2 (B)=10 8 / 4 (A)=1 8 / 2 (B)=18 1-8 / 1 (+ 48 V)=19 1-8 / 3 (0 V)=6 1-8 / 5 (PE)=12
Signaling	Status display present: No
Electrical properties	Nominal voltage U_N: 48 VAC 60 VDC Rated current, total: 10 A (up to 40°C) Max. current carrying capacity per path: 2 A Current carrying capacity per slot: 4 A
Cable/line	Sensor/actuator connection system: M12 socket Connection method: M23 plug connection Tightening torque slot sensor/actuator cable: 0.4 Nm
Standards and regulations	M12 Standard designation: M12 connector Standards/specifications: IEC 61076-2-101
Environmental and real-life conditions	Ambient conditions Degree of protection: IP65 Ambient temperature (operation): -25°C ... 70°C
