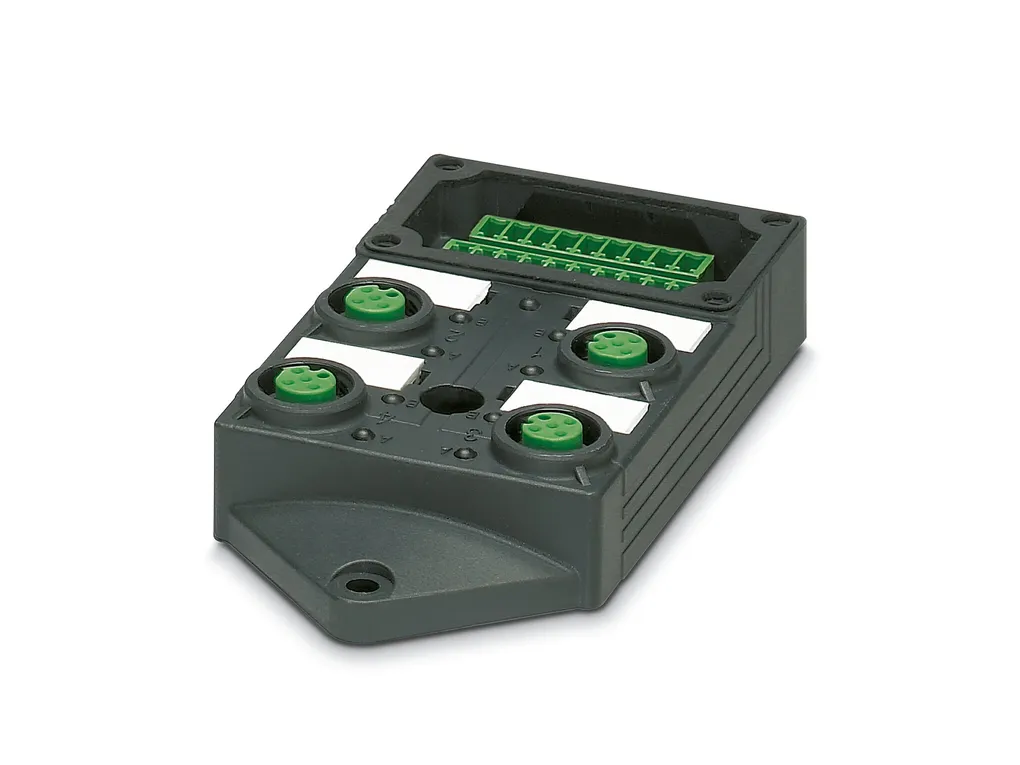

SACB-10/3-M16-M8 HD - Distributor box
![](https://www.technologybsa.com/wp-content/uploads/2023/08/copia.png)
![](https://www.technologybsa.com/wp-content/uploads/2023/08/copia.png)
Product properties | Product type: Distributor boxes with M8 to M12 slots Number of positions: 3 Number of slots: 10 |
Connection data | Conductor connection Connection method: M16 plug connection Tightening torque slot sensor/actuator cable: 0.2 Nm Tightening torque - master cable - plug connection: 1.5 Nm Pin assignment Slot/position = Wire color or connection: 1 / 4 (A)=P 2 / 4 (A)=J 3 / 4 (A)=T 4 / 4 (A)=S 5 / 4 (A)=G 6 / 4 (A)=R 7 / 4 (A)=E 8 / 4 (A)=O 9 / 4 (A)=C 10 / 4 (A)=N 1-10 / 1 (+24 V)=A+M 1-10 / 3 (0 V)=L+U |
Signaling | Status display present: No |
Electrical properties | Max. operating voltage Umax: 30 VDC Nominal voltage UN: 24 VDC Rated current, total: 6 A Max. current carrying capacity per path: 2 A Current carrying capacity per slot: 2 A |
Cable/line | Sensor/actuator connection system: M8 socket Connection method: M16 plug connection Tightening torque - master cable - plug connection: 1.5 Nm Tightening torque slot sensor/actuator cable: 0.2 Nm |
Environmental and real-life conditions | Ambient conditions Degree of protection: IP65 IP67 |
ECLASS | ECLASS-11.0: 27440111 ECLASS-12.0: 27440111 ECLASS-13.0: 27440111 |
ETIM | ETIM 9.0: EC003558 |
UNSPSC | UNSPSC 21.0: 31251500 |
