SACB-C-H180-10/3-M8 HD - Connector hood

Connector hood, application: Standard, connection method: M8 socket Metal, number of slots: 10, number of positions: 3, slot assignment: single, status display: No, Universal; master cable connection: Pluggable screw connection 180°, shielding: no

Product Code: 1197646

Partner cod.: 1197646

PHOENIX CONTACT

Notes	General: For details about the PCB connectors used, refer to the technical data for MC 1,5/10-STF-3,5 (1847204) NOTE: Observe the permissible bending radii when laying conductors, since the degree of protection may be put in jeopardy if the bending forces are too high. Alleviate mechanical loads upstream of the connector, e.g.by using cable ties.
Product properties	Product type: Connector hood Number of positions: 3 Application: Standard Number of slots: 10
Electrical properties	Max. operating voltage U_max: 30 VDC Nominal voltage U_N: 24 VDC Rated current, total: 8 A Max. current carrying capacity per path: 2 A Current carrying capacity per slot: 2 A
Signaling	Status display present: No

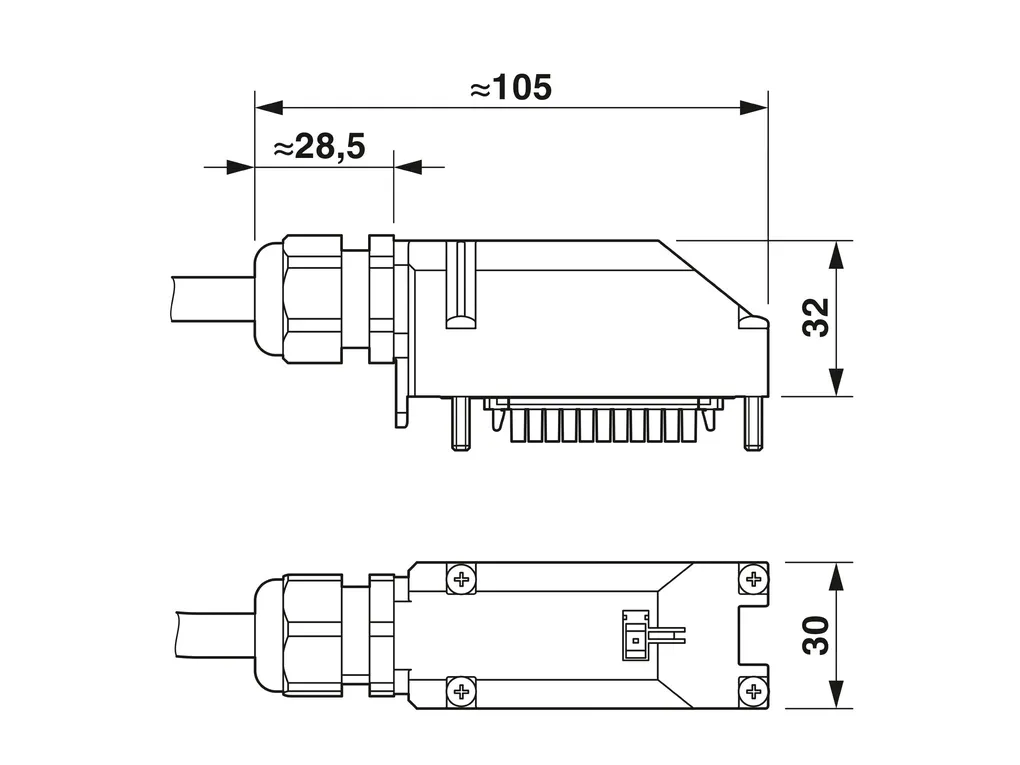

Dimensions	Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/e3d4db7d89e2544ab5b467a389291f2a/-S204x204-FJPG Wrench size, union nut: 24 mm Wrench size, counter nut: 24 mm
Material specifications	Material: PBT PA 6 Seal material: CR/NBR Material of contact, master cable side: CU alloy Material of the contact carrier on the master cable side: PA Material of contact surface, master cable side: tin-plated
Cable/line	Sensor/actuator connection system: M8 socket Connection method: Pluggable screw connection Stripping length (signal): 7 mm Stripping length for sheath: 70 mm (Master cable) Tightening torque, cover screw: 1 Nm
Environmental and real-life conditions	Ambient conditions Degree of protection: IP67 Ambient temperature (operation): -25°C ... 80°C
