| Notes | Assembly note: Refer to the data sheet for the range in the download area. |

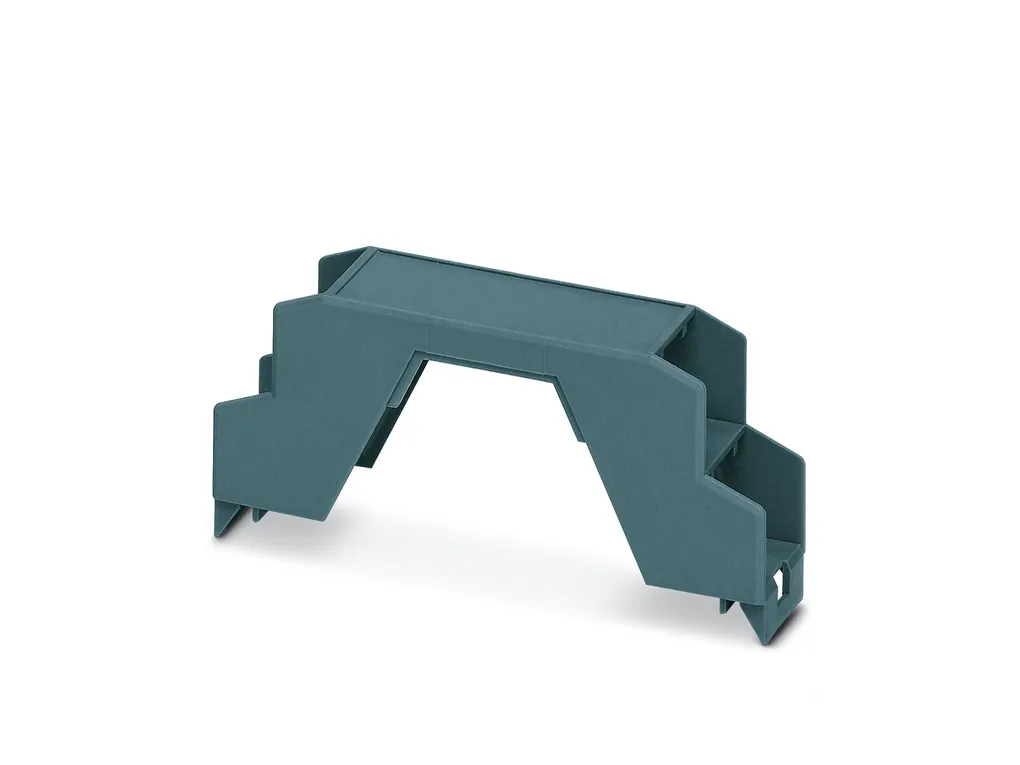

| Product properties | Product type: Connection plate Housing type: DIN rail housing Housing series: ICS Product family: ICS25 Type: ICS filler, closed Ventilation openings present: no Data management status Article revision: 00 |
| Dimensions | Dimensional drawing: https://caas.phoenixcontact.com/caas/v1/stable/media/23432/full/b1500?format=jpg Width: 25 mm Height: 7.25 mm Depth: 67.3 mm PCB design PCB thickness: 1.4 mm ... 1.8 mm |
| Material specifications | Color (Housing): light gray (RAL 7035) Flammability rating according to UL 94: V0 CTI according to IEC 60112: 600 Housing material: Polyamide Surface characteristics: untreated |
| Environmental and real-life conditions | Vibration test Specification: IEC 60068-2-6:2007-12 Frequency: 10 - 150 - 10 Hz Sweep speed: 1 octave/min Amplitude: 0.15 mm (10 Hz ... 58.1 Hz) Acceleration: 2g (58.1 Hz ... 150 Hz) Test duration per axis: 2.5 h Test directions: X-, Y- and Z-axis Glow-wire test Specification: IEC 60695-2-11:2014-02 Temperature: 850 °C Time of exposure: 30 s Thermal stability / ball thrust test Specification: IEC 60695-10-2:2014-02 Temperature: 125 °C Test duration: 1 h Force: 20 N Mechanical strength / tumbling barrel Specification: IEC 60068-2-31:2008-05 Height of fall: 50 cm Frequency: 50 Shocks Specification: IEC 60068-2-27:2008-02 Pulse shape: Half-sine Acceleration: 15g Shock duration: 11 ms Number of shocks per direction: 3 Test directions: X-, Y- and Z-axis (pos. and neg.) Test for substances that would hinder coating with paint or varnish Specification: VDMA 24364:2018-05 Result: Test passed Ambient conditions Max. IP code to attain: IP20 Ambient temperature (operation): -40 °C ... 105 °C (depending on power dissipation) Ambient temperature (storage/transport): -40 °C ... 55 °C Ambient temperature (assembly): -5 °C ... 100 °C Relative humidity (storage/transport): 80 % |
| PCB data | Number of PCB holders: 2 Type of PCB mount: Slot Thickness of the PCB: 1.4 mm ... 1.8 mm |
| Mounting | Mounting type: Slot |
| Packaging specifications | Outer packaging type: Resealable bag |
