HC-B16-BCFD-P-BK - Protective cover
![](https://www.technologybsa.com/wp-content/uploads/2023/08/copia.png)
![](https://www.technologybsa.com/wp-content/uploads/2023/08/copia.png)
Notes | General: Protective cover for supporting base element with double locking latch |
Product properties | Type: B16 Product type: Protective cover Housing type: Protective cover Seal present: no |

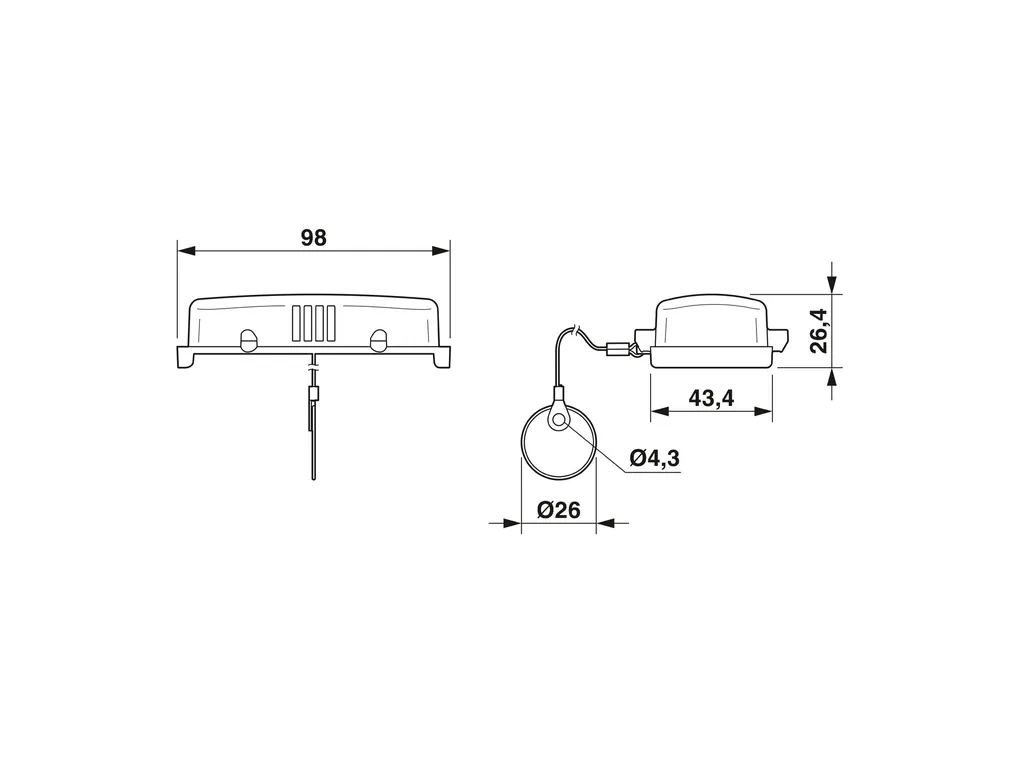

Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/d69dd714c4e61e4e88ca9c686799915a/-S204x204-FJPG Width: 43.4 mm Height: 26.4 mm Length: 98 mm Diameter: 40 mm |
Material specifications | Material: PC Flammability rating according to UL 94: V0 Material, protective cover: PC |
Environmental and real-life conditions | Ambient conditions Degree of protection: IP66 Ambient temperature (operation): -40°C ... 125°C Resistance to UV radiation: yes |
Standards and regulations | Resistance to UV radiation: yes |
Mounting | Assembly instructions: Double eyelet for mounting on a cable / below screw head Plastic protective cover for short-term protection |
ECLASS | ECLASS-11.0: 27440208 ECLASS-12.0: 27440208 ECLASS-13.0: 27440208 |
ETIM | ETIM 9.0: EC002314 |
UNSPSC | UNSPSC 21.0: 39121400 |
