| Notes | Assembly note: Refer to the data sheet for the range in the download area. Recommendation: Material of contact pads for bus connector, galvanic gold (hard gold) |

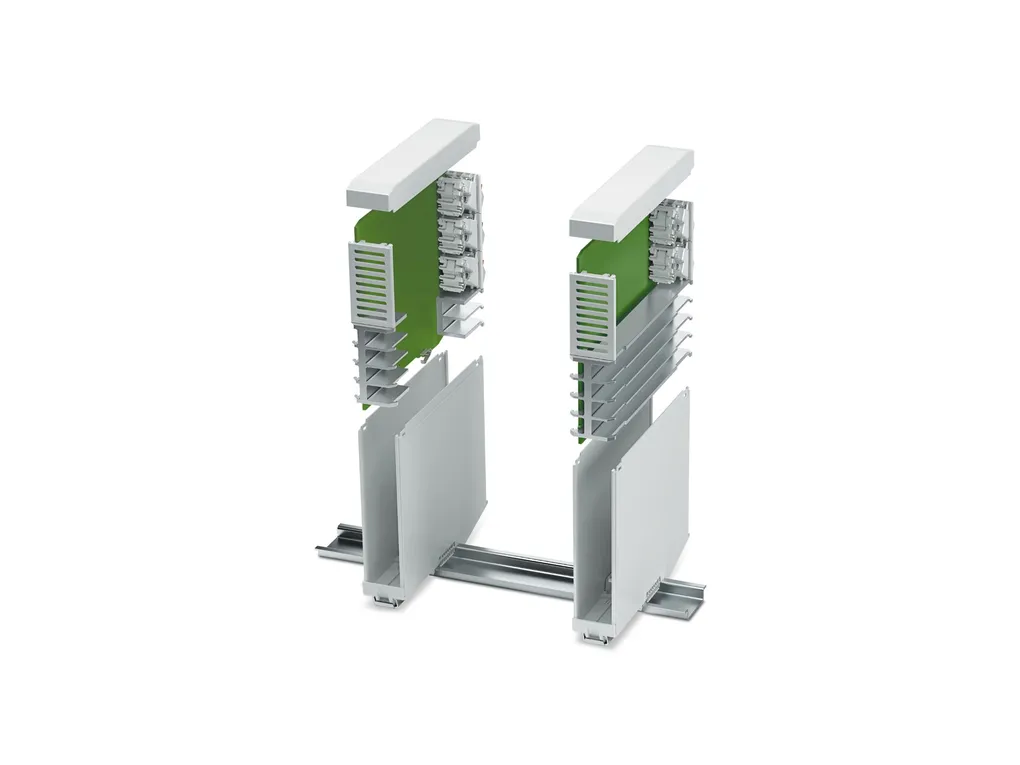

| Product properties | Product type: Enclosure bottom part Housing type: DIN rail housing Housing series: ICS Product family: ICS25-..100X.. Max. number of positions: 50 (pitch: 3.5 mm) 40 (pitch: 5 mm) Number of rows: 5 Number (Number of connection openings): 10 Type: Lower housing part with metal foot catch Ventilation openings present: no Data management status Article revision: 00 |
| Dimensions | Dimensional drawing: https://caas.phoenixcontact.com/caas/v1/stable/media/38732/full/b1500?format=jpg Width: 25 mm Height: 100 mm Depth: 130.9 mm Depth from top edge of DIN rail to support point on upper part: 120.7 mm Dimensions: 25 mm x 100 mm x 132.6 mm (Lower housing part from the top edge of the DIN rail with upper housing part) 25 mm x 100 mm x 139.2 mm (Lower housing part with upper housing part) PCB design PCB thickness: 1.4 mm ... 1.8 mm |
| Material specifications | Color (Housing): light gray (RAL 7035) Flammability rating according to UL 94: V0 CTI according to IEC 60112: 600 Housing material: Polyamide Surface characteristics: untreated |
| Environmental and real-life conditions | Power dissipation single housing for 20 °C Ambient temperature: 20 °C Reduction factor: 1 Mounting position: vertical Power dissipation: 17 W Power dissipation single housing for 30 °C Ambient temperature: 30 °C Reduction factor: 0.81 Mounting position: vertical Power dissipation: 13.5 W Power dissipation single housing for 40 °C Ambient temperature: 40 °C Reduction factor: 0.67 Mounting position: vertical Power dissipation: 11.4 W Power dissipation single housing for 50 °C Ambient temperature: 50 °C Reduction factor: 0.53 Mounting position: vertical Power dissipation: 9 W Power dissipation single housing for 60 °C Ambient temperature: 60 °C Reduction factor: 0.41 Mounting position: vertical Power dissipation: 7 W Power dissipation single housing for 70 °C Ambient temperature: 70 °C Reduction factor: 0.31 Mounting position: vertical Power dissipation: 5.3 W Ambient conditions Max. IP code to attain: IP20 Ambient temperature (operation): -40 °C ... 105 °C (depending on power dissipation) Ambient temperature (storage/transport): -40 °C ... 55 °C Ambient temperature (assembly): -5 °C ... 100 °C Relative humidity (storage/transport): max. 80 % |
| PCB data | Number of PCB holders: 2 Type of PCB mount: Latching Thickness of the PCB: 1.4 mm ... 1.8 mm |
| Mounting | Mounting type: DIN rail mounting |
| Packaging specifications | Type of packaging: packed in cardboard Outer packaging type: Carton |
