1389116 PHOENIX CONTACT - Technology Bsa

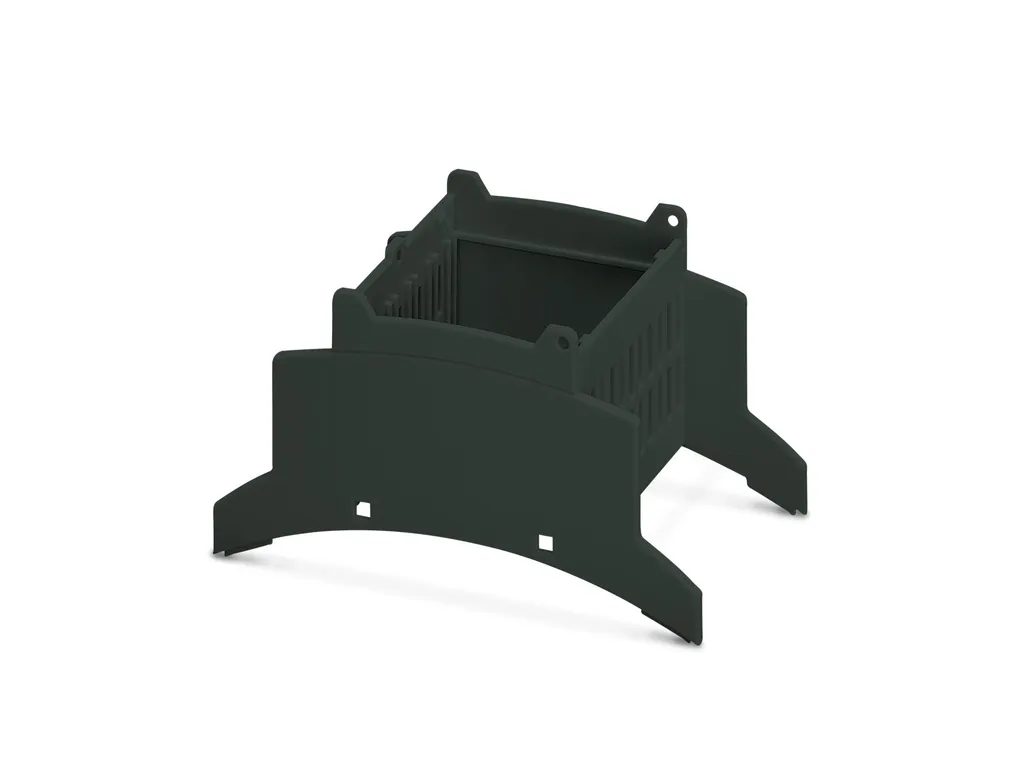

BC 161,6 OT 112222 BK - Upper housing part

DIN rail housing for use in distribution boards in accordance with DIN 43880, modular upper housing part, width: 161.6 mm, height: 89.7 mm, depth: 54.85 mm, color: black (similar RAL 9005)

Product Code: 1389116 Copia - Copy

Partner cod.: 1389116 Copia - Copy

PHOENIX CONTACT

Notes	Assembly note: Refer to the data sheet for the range in the download area.
Product properties	Product type: Upper housing part Housing type: DIN rail housing for use in distribution boards in accordance with DIN 43880 Housing series: BC Product family: BC 161,6.. Type: modular upper housing part Ventilation openings present: yes Data management status Article revision: 00
Dimensions	Dimensional drawing: https://caas.phoenixcontact.com/caas/v1/stable/media/23146/full/b1500?format=jpg Width: 161.6 mm Height: 89.7 mm Depth: 54.85 mm Horizontal pitch: 9 Div. PCB design PCB thickness: 1.4 mm ... 1.8 mm
Material specifications	Color (Housing): black (RAL 9005) Flammability rating according to UL 94: V0 Housing material: Polycarbonate Surface characteristics: untreated
Environmental and real-life conditions	Vibration test Specification: IEC 60068-2-6:2007-12 Frequency: 10 - 150 - 10 Hz Sweep speed: 1 octave/min Amplitude: 0.15 mm (10 Hz ... 58.1 Hz) Acceleration: 2g (58.1 Hz ... 150 Hz) Test duration per axis: 2.5 h Test directions: X-, Y- and Z-axis Glow-wire test Specification: IEC 60695-2-11:2014-02 Temperature: 850 °C Time of exposure: 30 s Mechanical strength / tumbling barrel Specification: IEC 60068-2-31:2008-05 Height of fall: 50 cm Frequency: 50 Shocks Specification: IEC 60068-2-27:2008-02 Pulse shape: Half-sine Acceleration: 15g Shock duration: 11 ms Number of shocks per direction: 3 Test directions: X-, Y- and Z-axis (pos. and neg.) Degree of protection (IP code) Specification: IEC 60529:1989-11 + AMD 1:1999-11 + AMD 2:2013-08 Ambient conditions Max. IP code to attain: IP20 Ambient temperature (operation): -40 °C ... 105 °C (depending on power dissipation) Ambient temperature (storage/transport): -40 °C ... 70 °C Ambient temperature (assembly): -5 °C ... 100 °C Relative humidity (storage/transport): 95 %
PCB data	Number of PCB holders: 18 Type of PCB mount: Latching Thickness of the PCB: 1.4 mm ... 1.8 mm
Mounting	Mounting type: Snap in
Packaging specifications	Type of packaging: packed in cardboard Outer packaging type: Carton
