SACB-8/16-L- 5,0 80MC SCO - Distributor box

Distributor box, application: Robots and drag chains, connection method: M12-SPEEDCON-socket Metal, number of slots: 8, number of positions: 5, coding: A, slot assignment: Double, status display: Yes, pnp; master cable connection: Fixed connection 180°, PUR, halogen free, highly flexible, highly flexible, cable length: 5 m, shielding: no

Product Code: 1401199

Partner cod.: 1401199

PHOENIX CONTACT

Notes	General: NOTE: Observe the permissible bending radii when laying conductors, since the degree of protection may be put in jeopardy if the bending forces are too high. Alleviate mechanical loads upstream of the connector, e.g.by using cable ties. Unused slots are to be sealed off prior to commissioning. Suitable sealing elements are to be found under "Accessories".
Product properties	Product type: Distributor boxes with M8 to M12 slots Number of positions: 5 Application: Robots and drag chains Number of slots: 8 Coding: A
Material specifications	Material: Die-cast zinc PBT PUR Flammability rating according to UL 94: V0 Seal material O-ring: NBR Contact material: Cu alloy Contact surface material: gold-plated Contact carrier material: PA

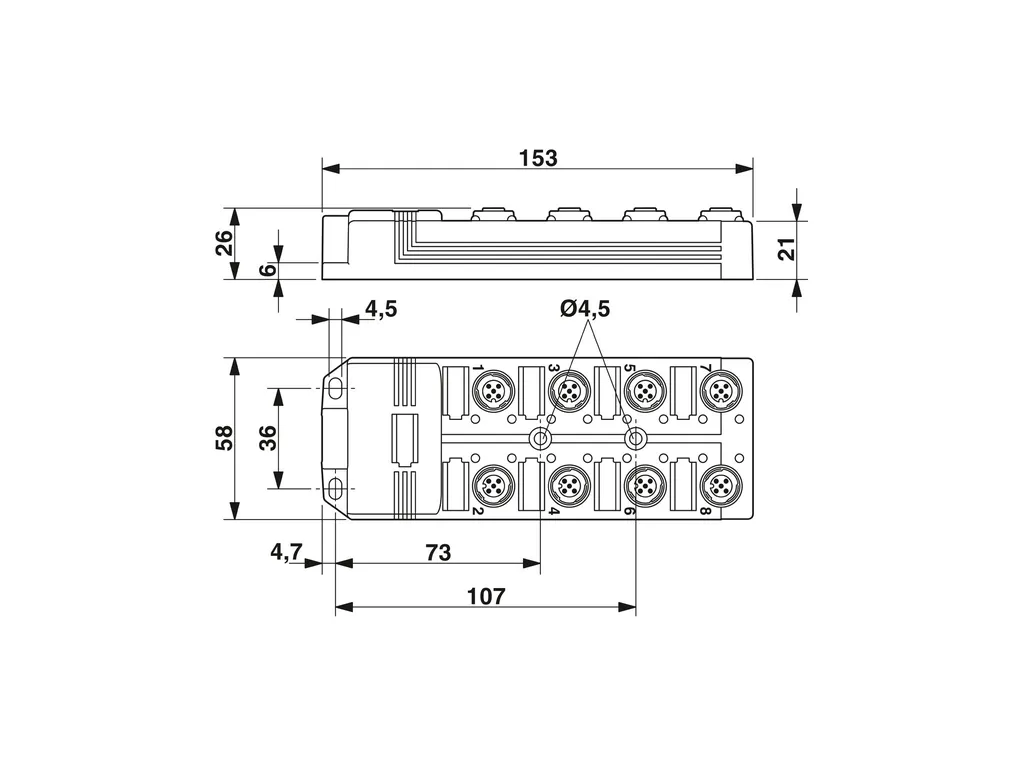

Dimensions	Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/6dd99cf629b6f84ab87595bf3e209607/-S204x204-FJPG Width: 58 mm Height: 26 mm Length: 153 mm
Connection data	Conductor connection Connection method: Fixed connection Tightening torque slot sensor/actuator cable: 0.4 Nm Tightening torque of mounting screw for fixing the housing: 0.5 Nm Pin assignment Slot/position = Wire color or connection: 1 / 4 (A)=WH 1 / 2 (B)=GYPK 2 / 4 (A)=GN 2 / 2 (B)=RDBU 3 / 4 (A)=YE 3 / 2 (B)=WHGN 4 / 4 (A)=GY 4 / 2 (B)=BNGN 5 / 4 (A)=PK 5 / 2 (B)=WHYE 6 / 4 (A)=RD 6 / 2 (B)=YEBN 7 / 4 (A)=BK 7 / 2 (B)=WHGY 8 / 4 (A)=VT 8 / 2 (B)=GYBN 1-8 / 1 (+ 24 V)=BN 1-8 / 3 (0 V)=BU 1-8 / 5 (PE)=GNYE
Signaling	Status display present: Yes
Electrical properties	Max. operating voltage U_max: 30 VDC Nominal voltage U_N: 24 VDC Rated current, total: 12 A Max. current carrying capacity per path: 2 A Current carrying capacity per slot: 4 A
Cable/line	Cable length: 5 m PUR halogen-free, highly flexible[80MC] Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/16aff763bc5ac44b9a0b8456a250d542/-S204x204-FJPG Number of positions: 19 Shielded: no Cable type: PUR halogen-free, highly flexible[80MC] Conductor structure signal line: 28x 0.15 mm AWG signal line: 20 Conductor cross section: 16x 0.5 mm² (Signal line) 3x 1 mm² (power line) External cable diameter: 10.75 mm Outer sheath, material: PUR External sheath, color: black RAL9005 Conductor material: Bare Cu litz wires Material wire insulation: PP Single wire, color: brown, blue, green/yellow, white, green, yellow, gray, pink, red, black, violet, gray/pink, red/blue, white/green, brown/green, white/yellow, yellow/brown, white/gray, gray/brown Overall twist: Wires twisted to an optimum in two layers Max. conductor resistance: 39 Ã©/km (Signal line) 19.5 Ã©/m (power line) Insulation resistance: Ã¢¥ 10 MÃ©*km (at 20°C) Nominal voltage, cable: 300 V Test voltage: 2000 V Smallest bending radius, fixed installation: 90 mm Smallest bending radius, movable installation: 120 mm Max. bending cycles: 5000000 Torsion force: ± 120°/m Torsion cycles: Ã¢¥ 3000000 Halogen-free: The cable is halogen-free Flame resistance: DINEN50265-2-1 Resistance to oil: in accordance with DINEN60811-2-1 Other resistance: somewhat resistant to welding sparks Special properties: Silicone-free Free of substances which would hinder coating with paint or varnish Ambient temperature (operation): -30°C ... 70°C (cable, fixed installation) 5°C ... 70°C (Cable, flexible installation) to 80°C (in acc. with UL)
Standards and regulations	M12 Standard designation: M12 connector Standards/specifications: IEC 61076-2-101
Environmental and real-life conditions	Ambient conditions Degree of protection: IP65 IP67 IP69K Ambient temperature (operation): -30°C ... 90°C
