Notes | General: For contact inserts HC-B24, BB46, D64, DD108, M, K, HV10-I-PT, HV 10-E...C |
Product properties | Type: B24 Product type: Housing with locking latch Product family: HC-EVO-B Application: Standard No. of cable outlets: 1 Housing type: Sleeve housing Cable outlet: straight Pg screw connection: none |

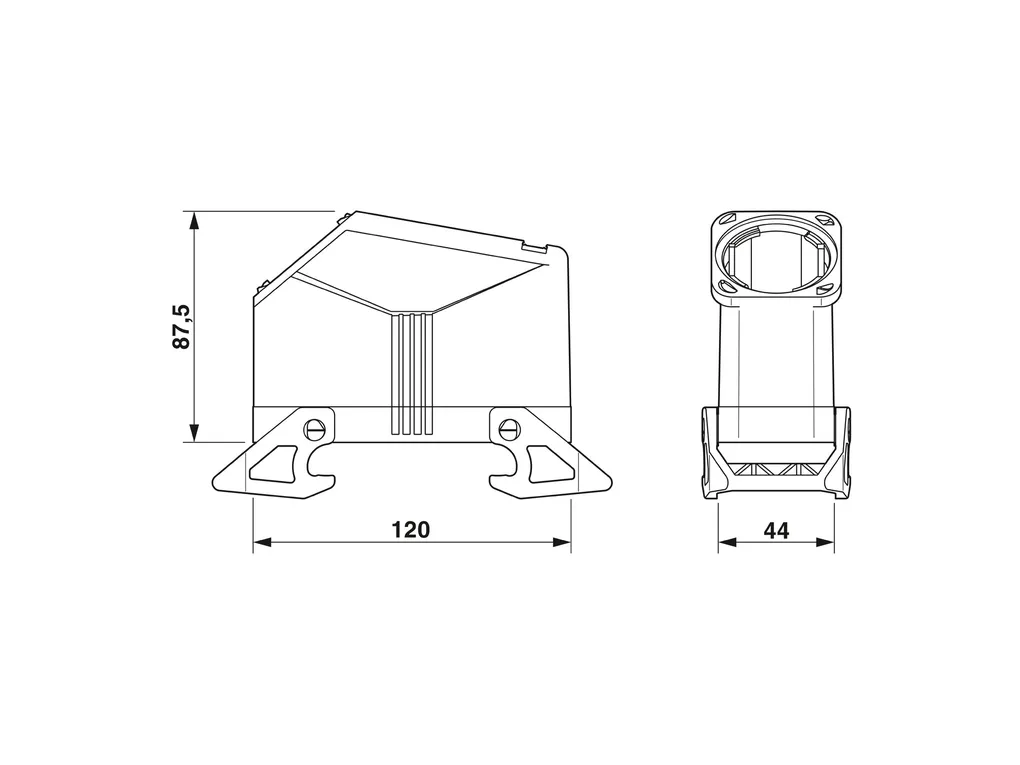

Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/b172a0dfe17ca446ad37aa89c4a8072f/-S204x204-FJPG Width: 44 mm Height: 87.5 mm Length: 120 mm |
Material specifications | Flammability rating according to UL 94: V0 (Housing) V0 (Interlock) Locking latch material: PA Impact strength: IK09 Housing material: PA |
Mechanical properties | Mechanical data Locking type: Latch |

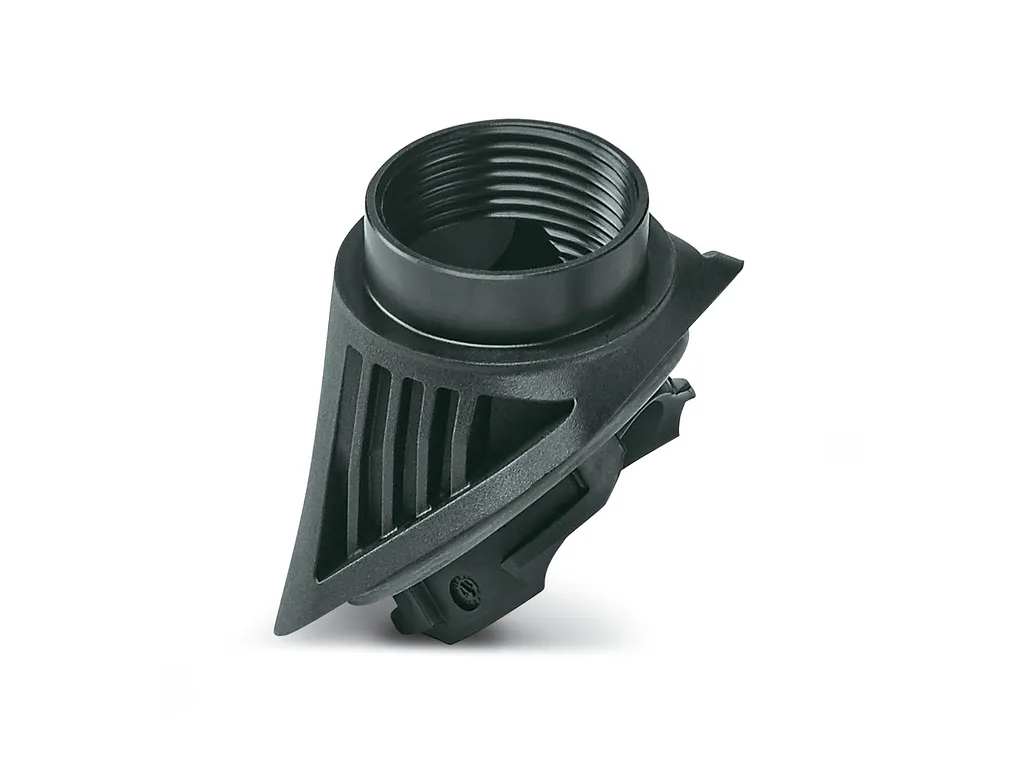

Mounting | Assembly instructions: The sleeve base housing must be supplemented with the EVO screw connection. The EVO screw connection is available in four sizes. It facilitates the creation of a straight or a side cable outlet. The EVO screw connection is mounted with the aid of, for example, a pipe wrench |
Environmental and real-life conditions | Ambient conditions Degree of protection: IP66 Enclosure rating (NEMA): 12 (UL50e) Impact strength: IK09 Ambient temperature (operation): -40°C ... 125°C |
ECLASS | ECLASS-11.0: 27440202 ECLASS-12.0: 27440202 ECLASS-13.0: 27440202 |
ETIM | ETIM 9.0: EC000437 |
UNSPSC | UNSPSC 21.0: 31261500 |
