| Product properties | Product type: Thread adapter Application: Bayonet B - Pg Type of the screw connection: Pg16 |

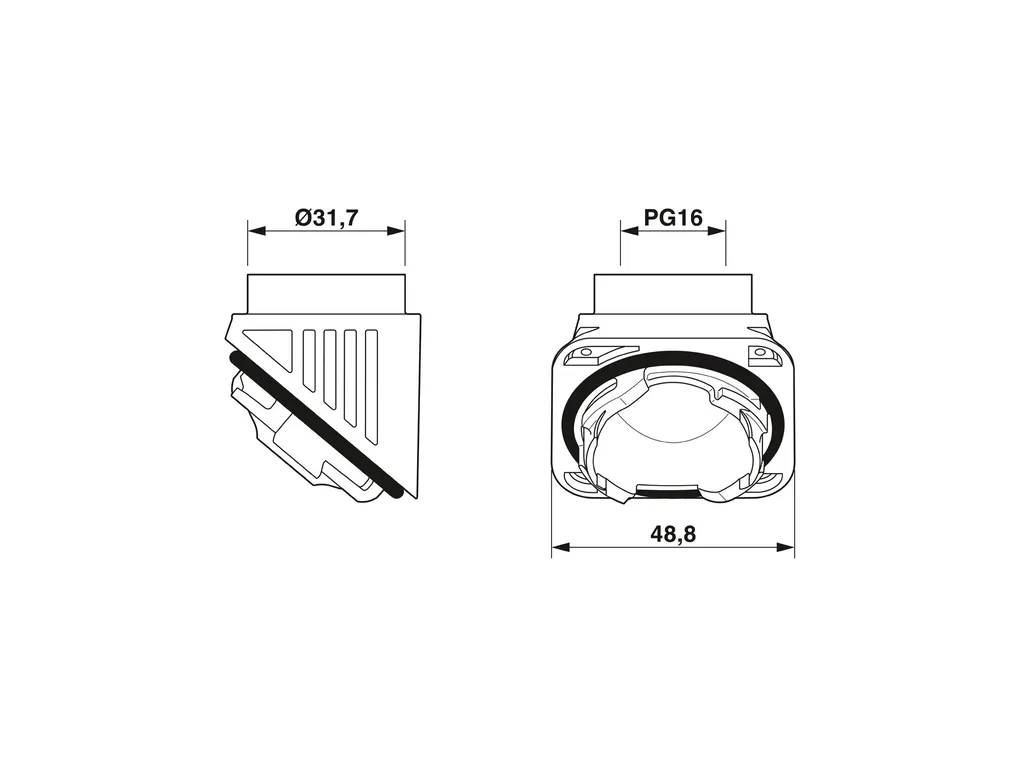

| Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/2e5ede95baf1c0489c171e637e7d142b/-S204x204-FJPG Thread type on seal side: Pg16 Internal dimensions Length of internal thread: 10 mm |
| Material specifications | Material: PA Flammability rating according to UL 94: V0 Seal material O-ring: NBR Housing material: PA |
| Mechanical properties | Mechanical data Type of the screw connection: Pg16 |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP66 Ambient temperature (operation): -40°C ... 100°C |
| Mounting | Assembly instructions: Bayonet locking max. 3x can be removed The plastic thread adapter does not establish an electrical connection between the cable gland and connector housing. For this reason, only plastic cable protection systems or plastic cable glands may be used. |
| ECLASS | ECLASS-11.0: 27144432 ECLASS-12.0: 27140801 ECLASS-13.0: 27140801 |
| ETIM | ETIM 9.0: EC000441 |
| UNSPSC | UNSPSC 21.0: 39121400 |
