CES-B16-8XSRC-BK - Sealing frame
![](https://www.technologybsa.com/wp-content/uploads/2023/08/copia.png)
![](https://www.technologybsa.com/wp-content/uploads/2023/08/copia.png)
Product properties | Type: B16 Product type: Frame for cable sleeves Frame type: Sealing frame with coned sleeves |
Connection data | Tightening torque: 2 Nm ... 4 Nm (Locking screw) |

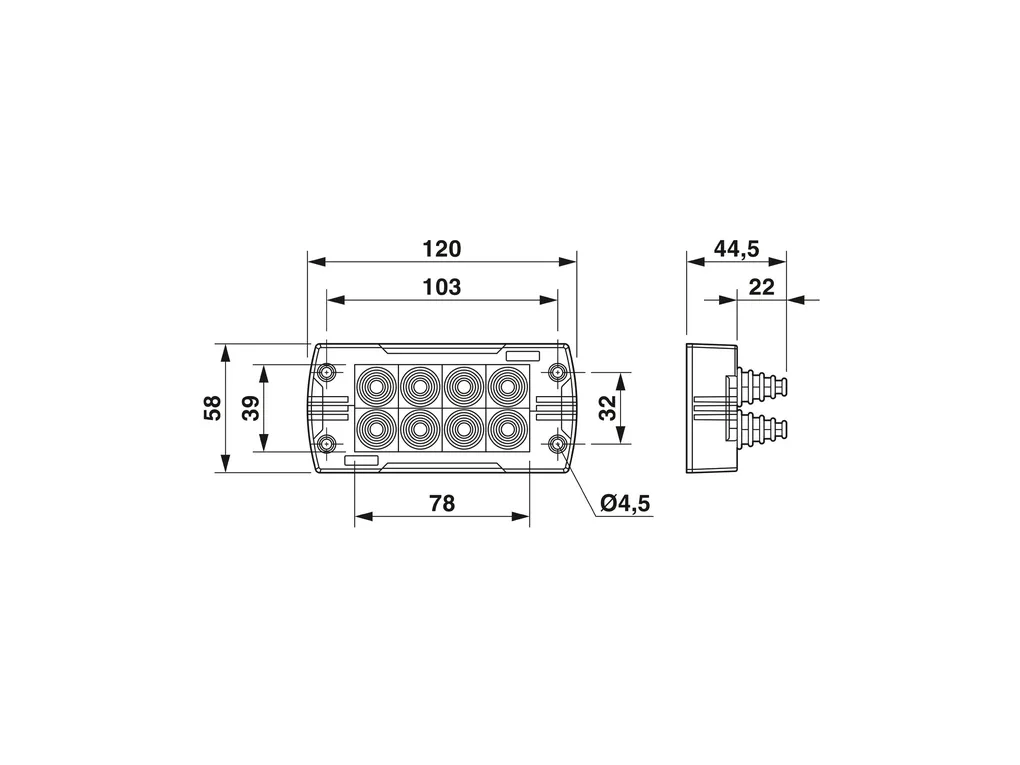

Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/d2a3cbc729cff246b18a81e16df97b8f/-S204x204-FJPG Width: 58 mm Height: 20 mm Length: 120 mm Drill hole distance, horizontal: 103 mm Drill hole distance, vertical: 32 mm Hole diameter: 5.5 mm Installation dimensions Width of the assembly cutout: 35 mm Length of the assembly cutout: 86 mm |
Material specifications | Material: PA NBR |
Cable/line | External cable diameter (): 8x 2 mm ... 11 mm |
Characteristics | Number of cable seals: 8 |
Environmental and real-life conditions | Ambient conditions Degree of protection: IP54 IP65 Ambient temperature (operation): -40°C ... 120°C (static) |
Mounting | Assembly instructions: M4 locking screw with 3 mm hex socket head, torque 2 ... 4 Nm The flat gasket supplied should be inserted between the wall and the sealing frame in the case of wall mounting. IP54: for vertical sealing frame mounting/for horizontal sealing frame mounting (downward cable outlet direction). IP65: vertical mounting/horizontal mounting (downward cable outlet direction) of the sealing frame directly on the housing panel and use of a 3.6mm wide cable binder (e.g., item 3240744). |
ECLASS | ECLASS-11.0: 23071590 ECLASS-12.0: 23071590 ECLASS-13.0: 23071590 |
ETIM | ETIM 9.0: EC002498 |
UNSPSC | UNSPSC 21.0: 31401600 |
