HC-HPR-B06-SHFH-2SSM25-EMR-BK - Housing
![](https://www.technologybsa.com/wp-content/uploads/2023/08/copia.png)
![](https://www.technologybsa.com/wp-content/uploads/2023/08/copia.png)
Notes | General: For contact inserts HC-B6, BB10, DD24, M |
Product properties | Type: B6 Product type: Housing with screw locking Product family: HC-HPR-B Application: Railway applications No. of cable outlets: 2 Type of the screw connection: 2x M25 Housing type: Box mounting bases Protective cover: no Series: HPR-B6 Cable outlet: lateral Pg screw connection: none |
Connection data | Tightening torque: 10 Nm ... 15 Nm (for M8 mounting screws on the surface-mount housing) |

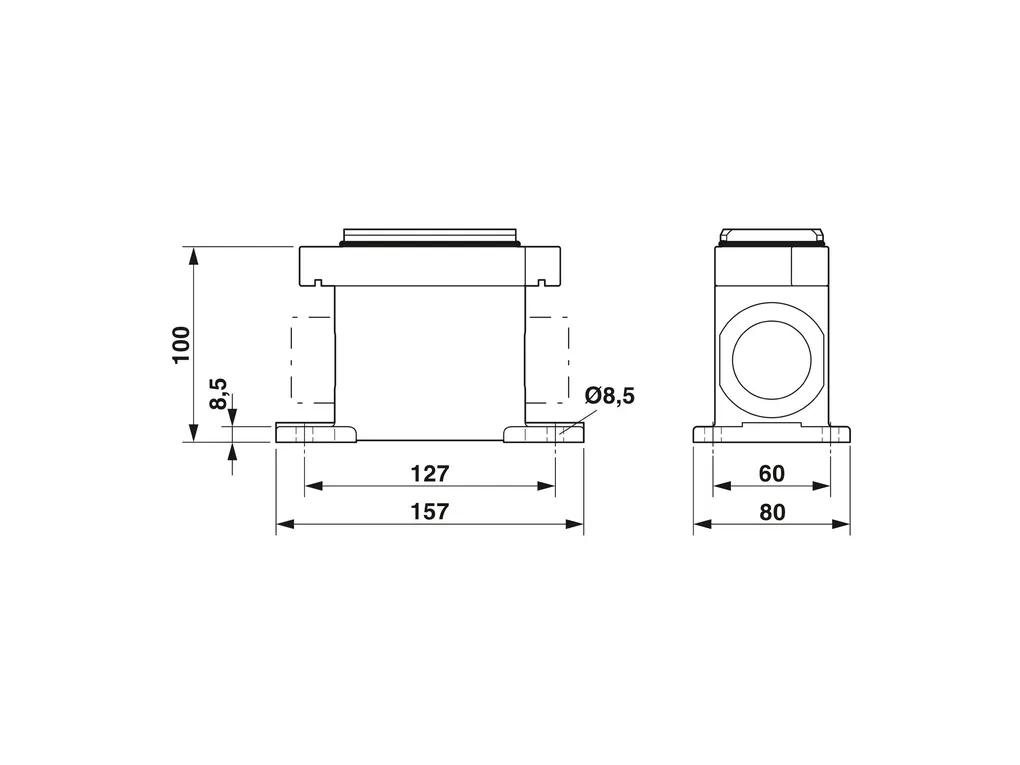

Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/f8ba05247379e24085c13498018852de/-S204x204-FJPG Width: 80 mm Height: 100 mm Length: 157 mm Drill hole distance, horizontal: 127 mm Drill hole distance, vertical: 60 mm Hole diameter: 8.5 mm |
Material specifications | Seal material: NBR Housing surface material: Powder-coated, black Impact strength: IK09 Housing material: die-cast aluminum |
Environmental and real-life conditions | Ambient conditions Degree of protection: IP66 IP68 (0.5bar / 24h) IP69 (ISO20653:2013-02) Impact strength: IK09 Ambient temperature (operation): -40°C ... 125°C |
Mechanical properties | Mechanical data Type of the screw connection: 2x M25 Locking type: Nut |
ECLASS | ECLASS-11.0: 27440202 ECLASS-12.0: 27440202 ECLASS-13.0: 27440202 |
ETIM | ETIM 9.0: EC000437 |
UNSPSC | UNSPSC 21.0: 31261500 |
