PHOENIX CONTACT 1411205
PHOENIX CONTACTNot available

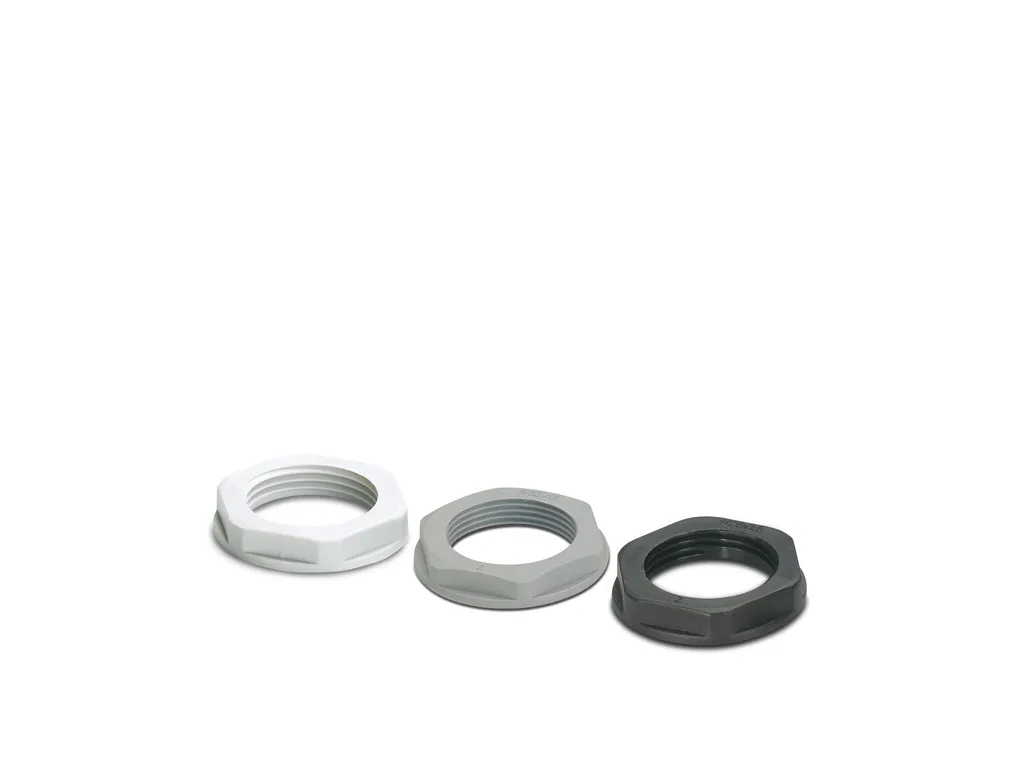

A-INL-M12-P-GY - Counter nut

Counter nut, for threads M12 x 1.5, color: silver-grey RAL7001
Product Code: 1411205
Partner cod.: 1411205
PHOENIX CONTACT


Diminuisci la quantità
Aumenta la quantità
Tecnichal data
Technical Specs
Description
Download
Tecnichal data
Product propertiesProduct type: Flat nut
Thread type: M12
DimensionsDimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/d0c51140e8a20a4cbb3c1533513cc9ce/-S204x204-FJPG
Length: 5 mm
Diameter: 12 mm
Connecting thread diameter: 12 mm
Wrench size, counter nut: 18 mm
Hexagon angular dimension: 19.5 mm
Thread type connection side: M12 x 1.5
Thread pitch: 1.5 mm
Material specificationsMaterial: PA
Flammability rating according to UL 94: V2
Cable/lineHalogen-free: yes
Environmental and real-life conditionsAmbient conditions
Ambient temperature (operation): -40°C ... 100°C
Technical Specs
ECLASSECLASS-11.0: 27144424
ECLASS-13.0: 27140807
ETIMETIM 9.0: EC000940
UNSPSCUNSPSC 21.0: 31161700
Description
Counter nut, material: PA, for threads M12 x 1.5, color: silver-gray RAL 7001
