| Product properties | Product type: Flat nut Thread type: Pg13.5 |

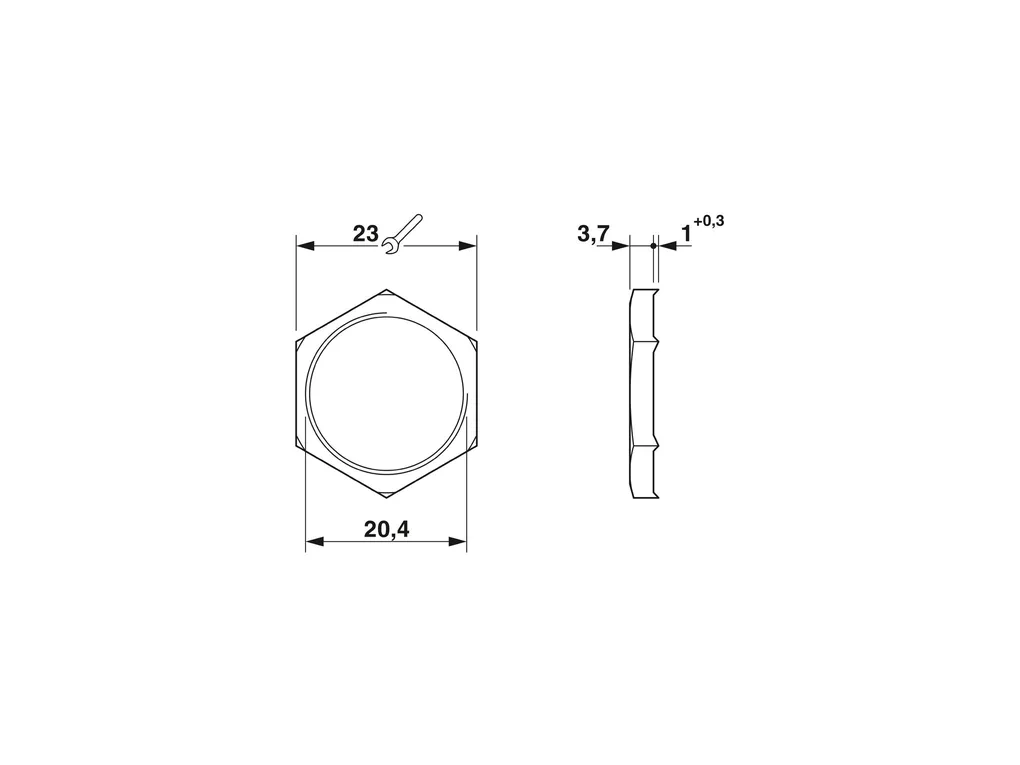

| Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/07347a1d1a4d564dba0b8f27cce572b6/-S204x204-FJPG Length: 4.7 mm Diameter: 20.4 mm Connecting thread diameter: 20.4 mm Wrench size, counter nut: 23 mm Hexagon angular dimension: 26 mm Thread type connection side: Pg13.5 |
| Material specifications | Material: Brass, nickel-plated |
| Cable/line | Halogen-free: yes |
| Environmental and real-life conditions | Ambient conditions Ambient temperature (operation): -70°C ... 220°C |
| Mounting | Assembly instructions: for EMC cable glands, for removing a non-conductive surface coating |
| ECLASS | ECLASS-11.0: 27144424 ECLASS-13.0: 27140807 |
| ETIM | ETIM 9.0: EC000940 |
| UNSPSC | UNSPSC 21.0: 31161700 |
