| Product properties | Product type: Flat nut Thread type: Pg36 |

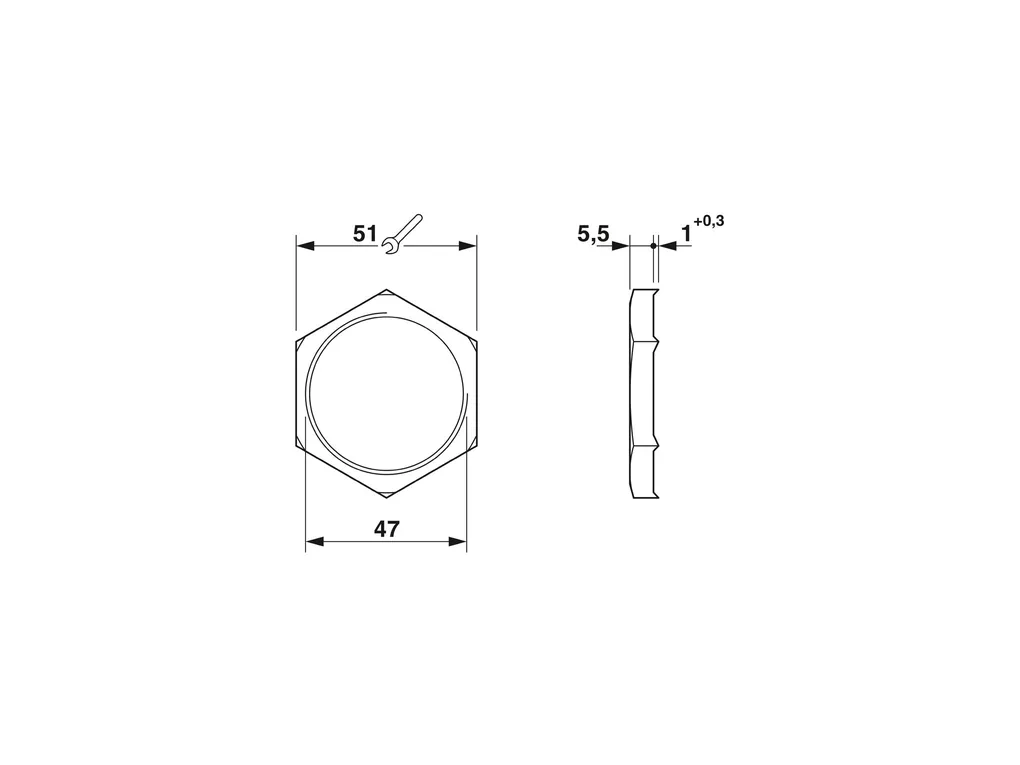

| Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/548e81262535024198643015530297c9/-S204x204-FJPG Length: 6.5 mm Diameter: 47 mm Connecting thread diameter: 47 mm Wrench size, counter nut: 51 mm Hexagon angular dimension: 56 mm Thread type connection side: Pg36 |
| Material specifications | Material: Brass, nickel-plated |
| Cable/line | Halogen-free: yes |
| Environmental and real-life conditions | Ambient conditions Ambient temperature (operation): -70°C ... 220°C |
| Mounting | Assembly instructions: for EMC cable glands, for removing a non-conductive surface coating |
| ECLASS | ECLASS-11.0: 27144424 ECLASS-13.0: 27140807 |
| ETIM | ETIM 9.0: EC000940 |
| UNSPSC | UNSPSC 21.0: 31161700 |
