Notes | General: For contact inserts HC-B16, BB32, BBB40, D40, DD72, HS6, M, K |
Product properties | Type: B16 Product type: Housing with screw locking Product family: HC-HPR-B Application: Railway applications No. of cable outlets: 1 Type of the screw connection: 1x M40 Housing type: Sleeve housing Protective cover: no Series: HPR-B16 Cable outlet: lateral Pg screw connection: none |

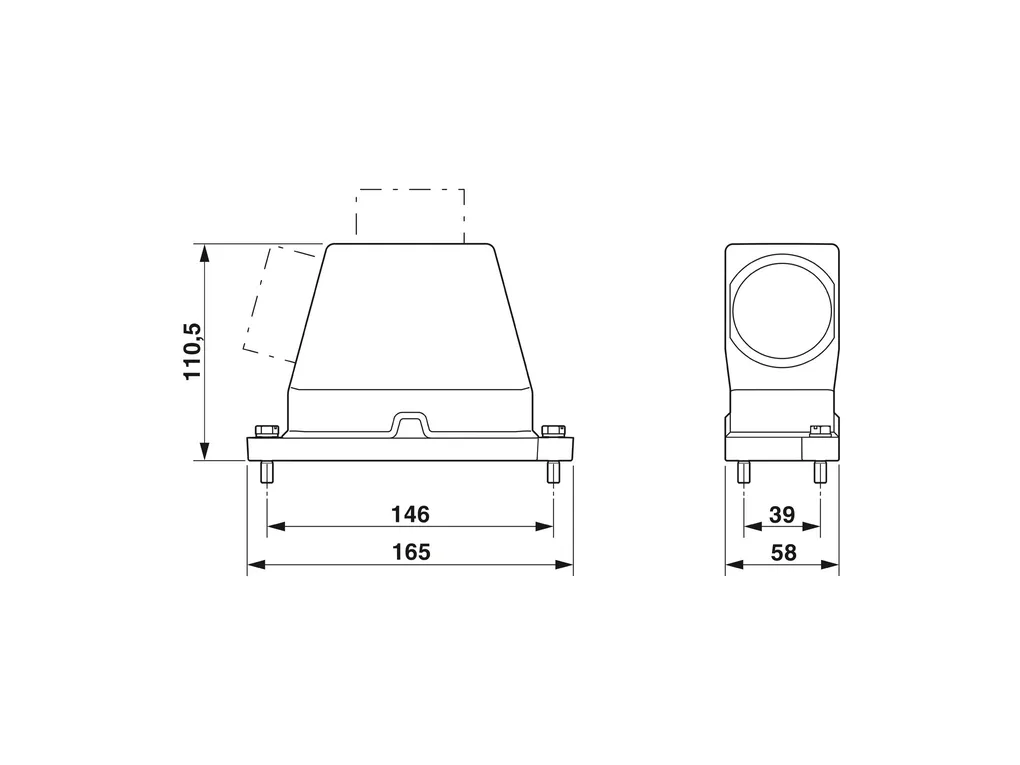

Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/6967597a23957c4c8c1c088267d7bd13/-S204x204-FJPG Width: 59.2 mm Height: 110.5 mm Length: 166.2 mm |
Material specifications | Housing surface material: Powder-coated, black Locking latch material: Stainless steel Impact strength: IK09 Housing material: die-cast aluminum |
Environmental and real-life conditions | Ambient conditions Degree of protection: IP66 IP68 (0.5bar / 24h) IP69 (ISO20653:2013-02) Impact strength: IK09 Ambient temperature (operation): -40°C ... 125°C |
Mechanical properties | Mechanical data Type of the screw connection: 1x M40 Locking type: Screw |
Mounting | Assembly instructions: M6 locking screw, slotted hexagon head screw (SW10), tightening torque: 4 Nm |
ECLASS | ECLASS-11.0: 27440202 ECLASS-12.0: 27440202 ECLASS-13.0: 27440202 |
ETIM | ETIM 9.0: EC000437 |
UNSPSC | UNSPSC 21.0: 31261500 |
