| Product properties | Product type: Full screw connection No. of conductors: 1 Type of the screw connection: M25 Manufacturer: Jacob Manufacturer Designation: 50.625 M/ASI/1 Shielded: no |

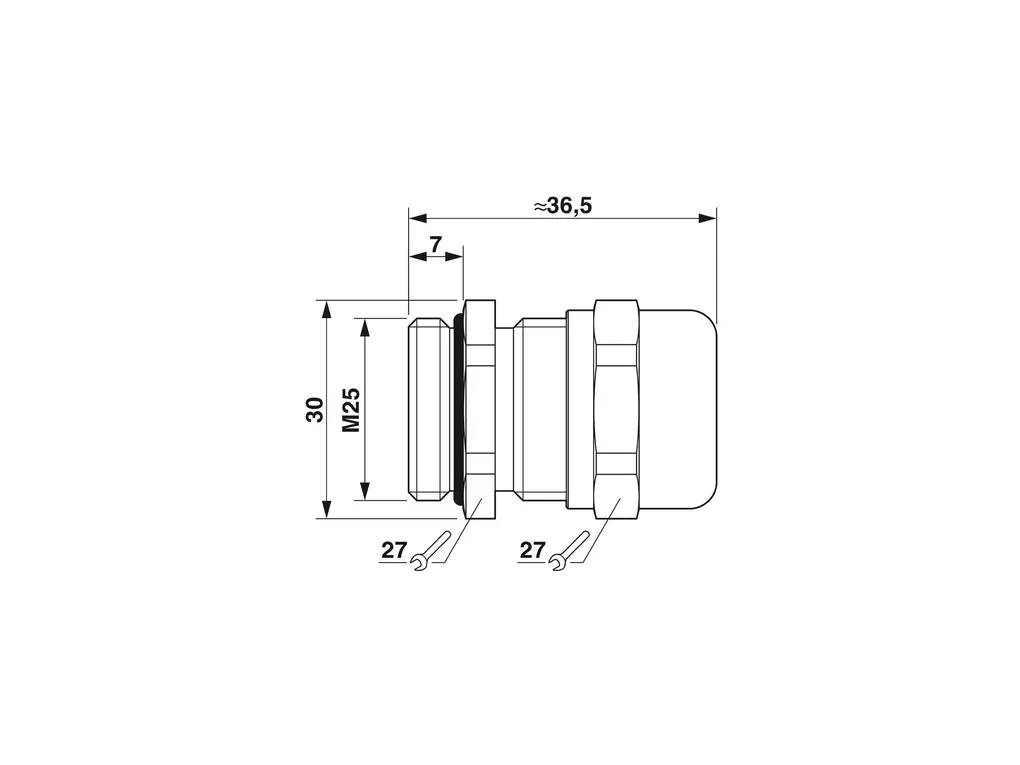

| Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/61ea4502f02e7a47ac4eff706802a4b2/-S204x204-FJPG Length: 36.5 mm Length of the connecting thread: 7 mm Hole diameter: 25.1 mm ... 25.2 mm Wrench size, union nut: 27 mm Wrench size, support: 27 mm Hexagon angular dimension: 36 mm Thread type connection side: M25 x 1.5 Thread pitch: 1.5 mm |
| Connection data | Tightening torque: 10 Nm (Union nut) 10 Nm (Support sleeve) |
| Material specifications | Material: PA Seal material O-ring: NBR Seal material Cable seal: TPE Material for screw connection: Brass, nickel-plated |
| Cable/line | External cable diameter (Cable 1): For AS-Interface flat-ribbon cable Halogen-free: no |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP65 Ambient temperature (operation): -20°C ... 100°C |
