Notes | General: For contact inserts HC-B10, BB18, DD42, M, K8/24 also available as a powder-coated or color version: 1372792 HC-STA-B10-SLFDC-2SSM20-EL/.../... |
Product properties | Type: B10 Product type: Housing with locking latch Application: Standard No. of cable outlets: 2 Type of the screw connection: 2x M20 Housing type: Box mounting bases Protective cover: yes Cable outlet: lateral Pg screw connection: none |

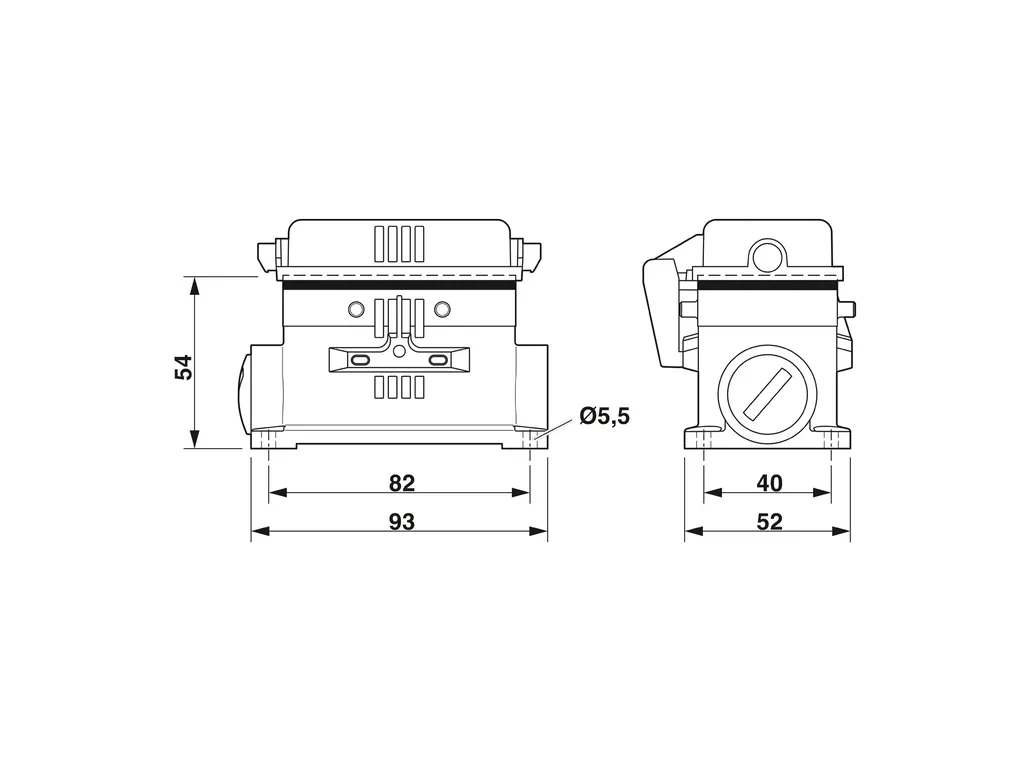

Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/254952bc0f52b3499d5e18a6574cd496/-S204x204-FJPG Width: 52 mm Height: 54 mm Length: 92 mm Hole diameter: 5.5 mm |
Material specifications | Flammability rating according to UL 94: V0 (Protective cover) Seal material: NBR, conductive Housing surface material: uncoated Material, protective cover: PC Impact strength: IK09 Housing material: Die-cast aluminum, salt water resistant |
Mechanical properties | Mechanical data Type of the screw connection: 2x M20 Locking type: Pin |
Mounting | Assembly instructions: One opening is sealed with a plastic filler plug and can be opened using a screwdriver. |
Environmental and real-life conditions | Ambient conditions Degree of protection: IP66 (when plugged in) IP67 (when plugged in) IP54 (with closed protective cover) Impact strength: IK09 Ambient temperature (operation): -40°C ... 125°C |
ECLASS | ECLASS-11.0: 27440202 ECLASS-12.0: 27440202 ECLASS-13.0: 27440202 |
ETIM | ETIM 9.0: EC000437 |
UNSPSC | UNSPSC 21.0: 31261500 |
