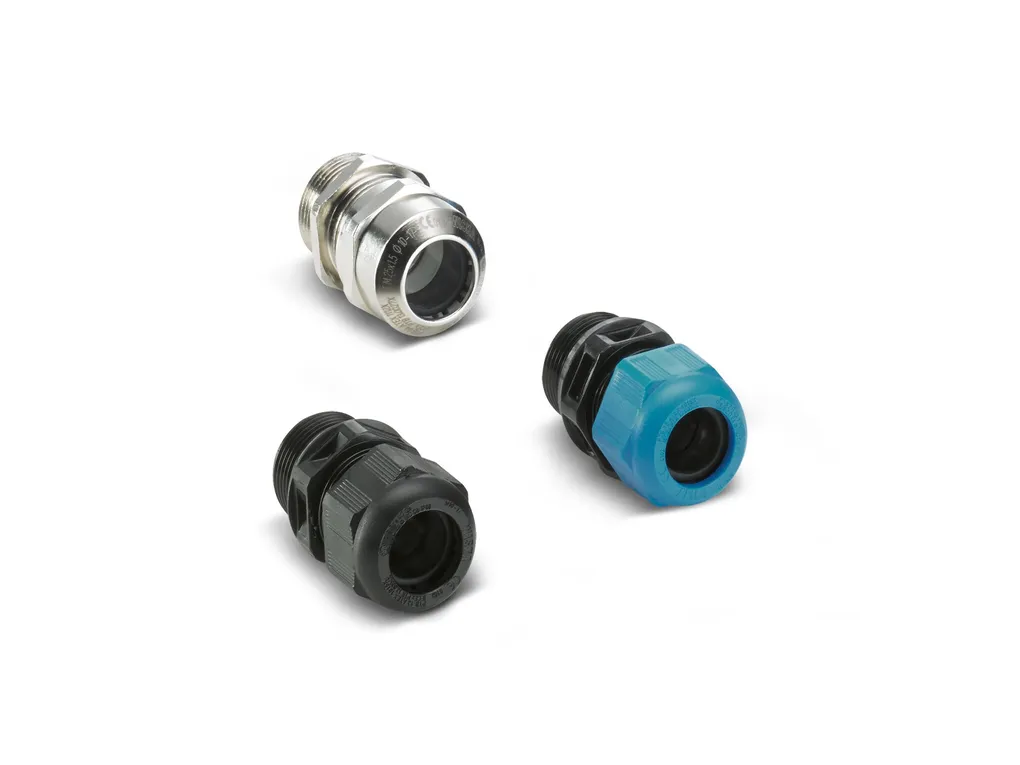

G-ESIS-M16-S68L-PEPDS-BK - Cable gland
![](https://www.technologybsa.com/wp-content/uploads/2023/08/copia.png)
![](https://www.technologybsa.com/wp-content/uploads/2023/08/copia.png)
Product properties | Product type: Full screw connection Application: Ex No. of conductors: 1 Manufacturer: WISKA Manufacturer Designation: ESKE/1-L-e 16 Shielded: no |
Ex data | Cable types that can be used: for unarmored cables Suited for EX-applications: yes |
Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/f3b5095e2a09e1438b3bccce01dce84e/-S204x204-FJPG Length: 37 mm Length of the connecting thread: 15 mm Hole diameter: 16.1 mm ... 16.3 mm Wrench size, union nut: 20 mm Wrench size, support: 20 mm Hexagon angular dimension: 23 mm Thread type connection side: M16 x 1.5 Thread pitch: 1.5 mm |
Connection data | Tightening torque: 1.8 Nm (Support sleeve) |
Material specifications | Material: PA Flammability rating according to UL 94: HB Seal material: EPDM Glow wire ignition temperature GWIT according to EN60695-2-13: 750 Material for screw connection: PA |
Cable/line | External cable diameter (): 4.5 mm ... 9 mm Tightening torque, union nut: 1.30 Nm Halogen-free: yes |
Environmental and real-life conditions | Ambient conditions Degree of protection: IP66 IP68 (5bar / 0.5h) Ambient temperature (operation): -40°C ... 75°C (static) |
Approvals | ATEX: II 2 G Ex e IIC Gb, II 2 D Ex tb IIIC Db IECEx: Ex e IIC Gb, Ex tb IIIC Db |
ECLASS | ECLASS-11.0: 27144432 ECLASS-12.0: 27140801 ECLASS-13.0: 27140801 |
ETIM | ETIM 9.0: EC000441 |
UNSPSC | UNSPSC 21.0: 39121300 |
