| Product properties | Product type: Full screw connection No. of conductors: 1 Type: with bend protection sleeve Manufacturer: WISKA Manufacturer Designation: ESKVS 16 Shielded: no Execution of the strain relief: A |
| Characteristics | Category of shock impact: 2 Design, Strain relief: A |

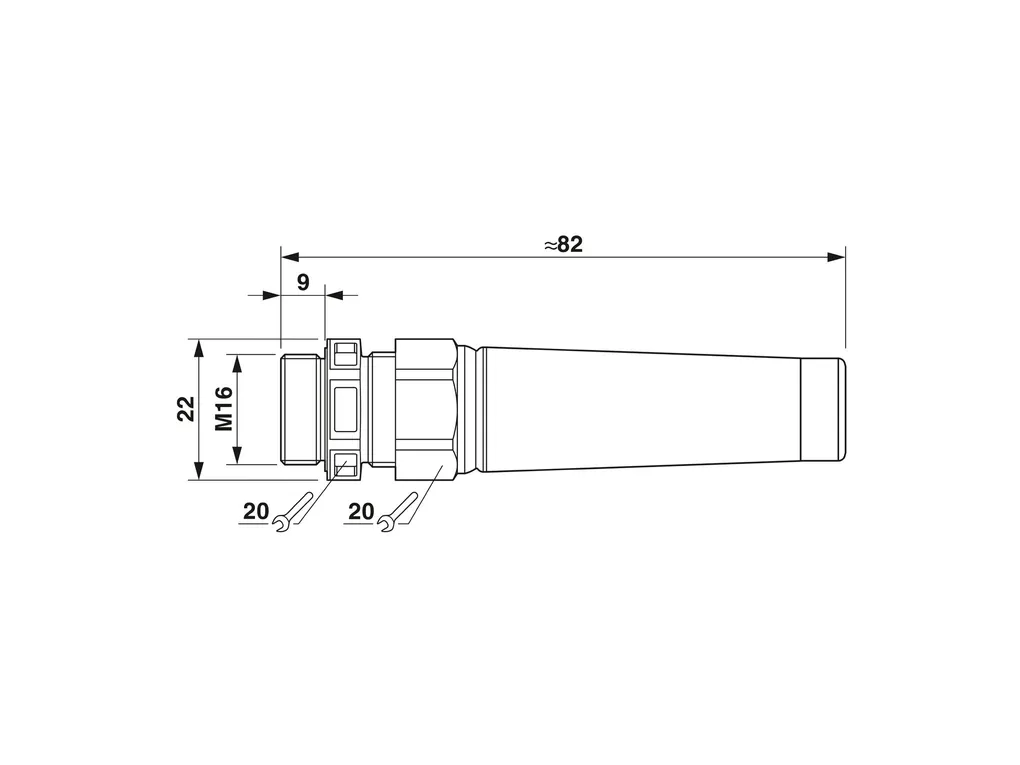

| Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/0de18c5971bed74092bede9080f97577/-S204x204-FJPG Length: 82 mm Length of the connecting thread: 9 mm Hole diameter: 16.1 mm ... 16.2 mm Wrench size, union nut: 20 mm Wrench size, support: 20 mm Hexagon angular dimension: 22 mm Thread type connection side: M16 x 1.5 Thread pitch: 1.5 mm |
| Connection data | Tightening torque: 1.5 Nm (Union nut: EN 62444) 3.5 Nm (Support: EN 62444) |
| Material specifications | Material: PA Seal material: EPDM Glow wire ignition temperature GWIT according to EN60695-2-13: 750 Material for screw connection: PA |
| Cable/line | External cable diameter (Cable 1): 4.5 mm ... 10 mm External cable diameter (): 6 mm ... 8.6 mm (for UL 514 B) Halogen-free: yes |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP68 (5bar / 0.5h) IP69 (DINEN60529 / IEC 60529) Ambient temperature (operation): -40°C ... 100°C (static) |
| ECLASS | ECLASS-11.0: 27144432 ECLASS-12.0: 27140801 ECLASS-13.0: 27140801 |
| ETIM | ETIM 9.0: EC000441 |
| UNSPSC | UNSPSC 21.0: 39121300 |
