| Mounting | Assembly instructions: for 0.8 mm ... 3.5 mm wall thickness, for 16 mm ... 16.7 mm bore hole |
| Product properties | Product type: Full screw connection Manufacturer: WISKA Manufacturer Designation: CLIXX 16 Shielded: no |

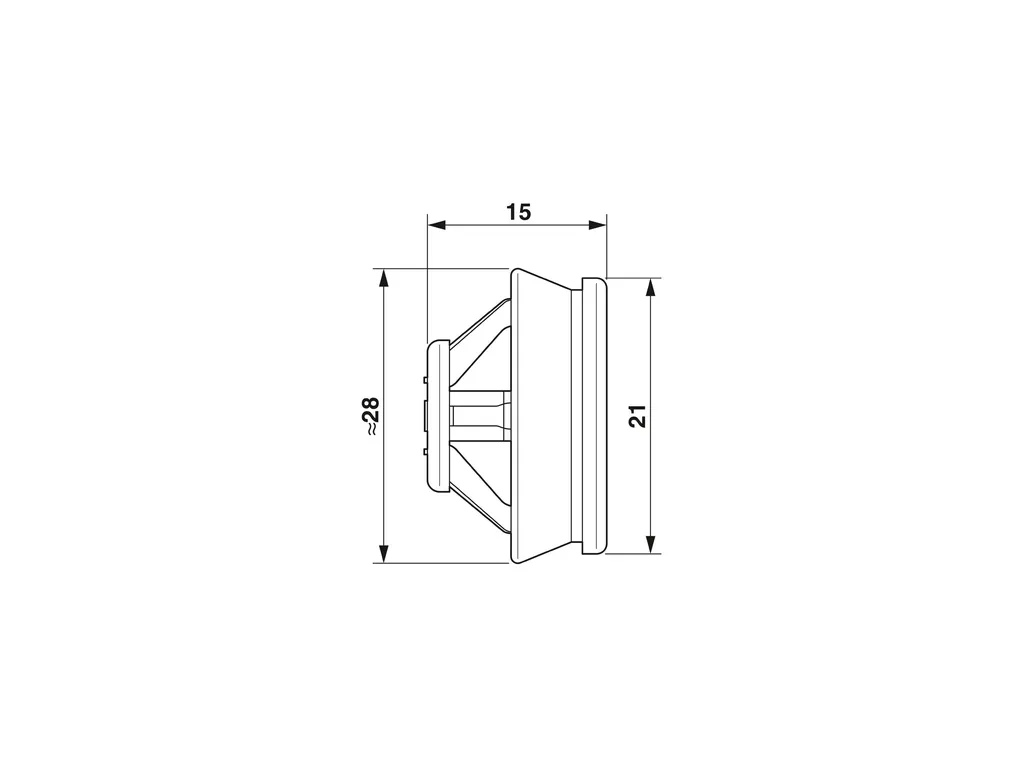

| Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/90129ac620e3f74baee8b52d763924ac/-S204x204-FJPG Length: 15 mm Length of the connecting thread: 8 mm Length without connecting thread: 7 mm Diameter: 16 mm Connecting thread diameter: 16 mm Hole diameter: 16 mm ... 16.7 mm Hexagon angular dimension: 32 mm Thread type connection side: M16 |
| Material specifications | Seal material: TPE Material for screw connection: Polypropylene |
| Cable/line | External cable diameter (): 4 mm ... 10 mm |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP66 IP67 Ambient temperature (operation): -40°C ... 65°C |
| ECLASS | ECLASS-11.0: 27144433 ECLASS-13.0: 27140890 |
| ETIM | ETIM 9.0: EC000441 |
| UNSPSC | UNSPSC 21.0: 39121300 |
