Notes | General: For HEAVYCON housings type B6 to B48, HC-M-Bâ¦MF-... module carrier frame required, crimp contacts HC-M-04-KOAX... (crimp contacts not included in the scope of delivery) Connectors may be operated only when there is no load/voltage. It is imperative that guide pins (HC-CST) and sockets (HC-CBU) are used to prevent tip collision due to misalignment. The designations âfemaleâ and âmaleâ are used differently for coaxial contacts than for single-position contacts. The correct accessories can be found in the e-shop. |

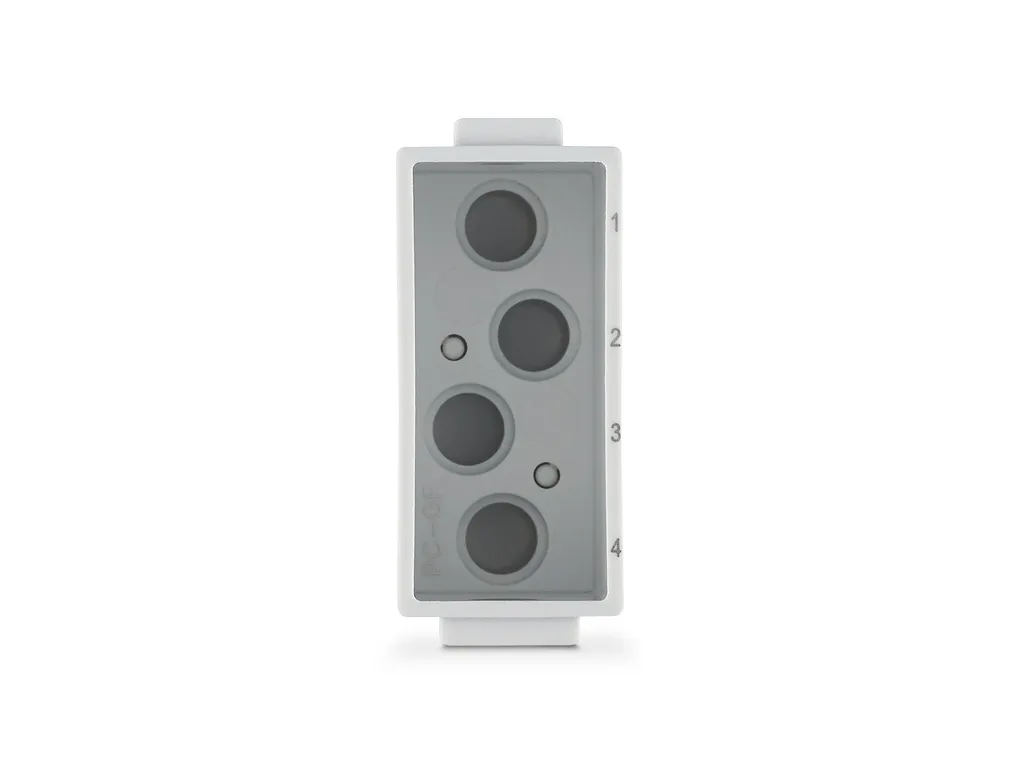

Product properties | Product type: Coaxial insert, modular Number of positions: 4 Connection profile: 4xKOAX Contact numbering: 1 - 4 Application: Signal Number of module slots: 1 No. of power contacts: 0 No. of control contacts: 4 Contact material type: turned Series: HC-M-04-KOAX Insulation characteristics Overvoltage category: III Degree of pollution: 3 |
Electrical properties | Rated voltage (III/3): 48 V Rated surge voltage: 0.8 kV Rated current: 1.5 A Contact resistance, phase conductor: ⤠3 mé Contact resistance, inner conductor: ⤠10 mé Insulation resistance: ⥠10 Gé |
Connection data | Connection technology Connection technology: Soldering and crimp connection Conductor connection Conductor cross section: 0.2 mm² ... 0.8 mm² Connection cross section AWG: 24 ... 18 Stripping length of the individual wire: 2.5 mm ±0.5 mm |
Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/524112f77eb3b742bd9cf958f5adc973/-S204x204-FJPG Width: 34.2 mm Height: 32.6 mm Length: 14.6 mm Mechanical characteristics Contact diameter: 4.8 mm |
Material specifications | Flammability rating according to UL 94: V0 Contact material: Copper alloy Contact surface material: Au Contact carrier material: PC Standards/regulations: PC: Fire protection in rail vehicles - requirement sets R22, R23, and R24 acc. to DINEN45545-2 (Risk level HL1 - HL3) |
Cable/line | Stripping length of the individual wire: 2.5 mm ±0.5 mm |
Mechanical properties | Mechanical data Insertion/withdrawal cycles: ⥠500 |
Environmental and real-life conditions | Ambient conditions Ambient temperature (operation): -40°C ... 125°C |
Standards and regulations | Testing Standards/regulations: PC: Fire protection in rail vehicles - requirement sets R22, R23, and R24 acc. to DINEN45545-2 (Risk level HL1 - HL3) |
Mounting | Assembly instructions: To ensure correct use, installation in housing with IP54 protection or better is required For HC-M-04-ST-KOAX... contacts |
ECLASS | ECLASS-11.0: 27440217 ECLASS-12.0: 27440217 ECLASS-13.0: 27440217 |
ETIM | ETIM 9.0: EC000438 |
UNSPSC | UNSPSC 21.0: 39121400 |
