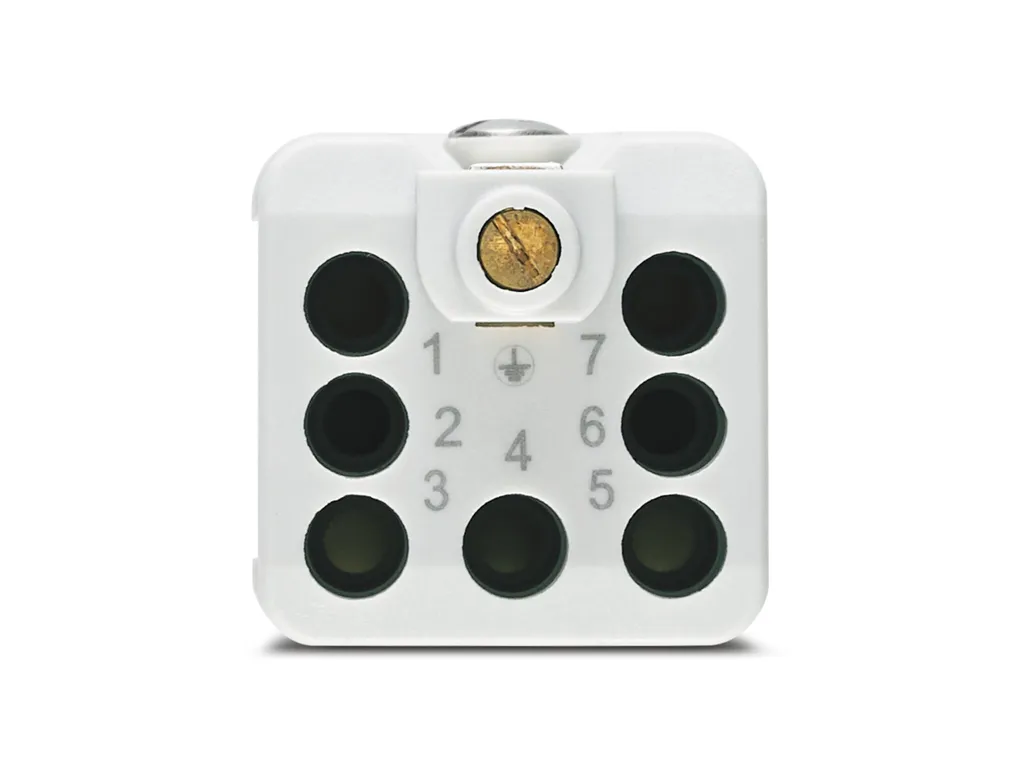

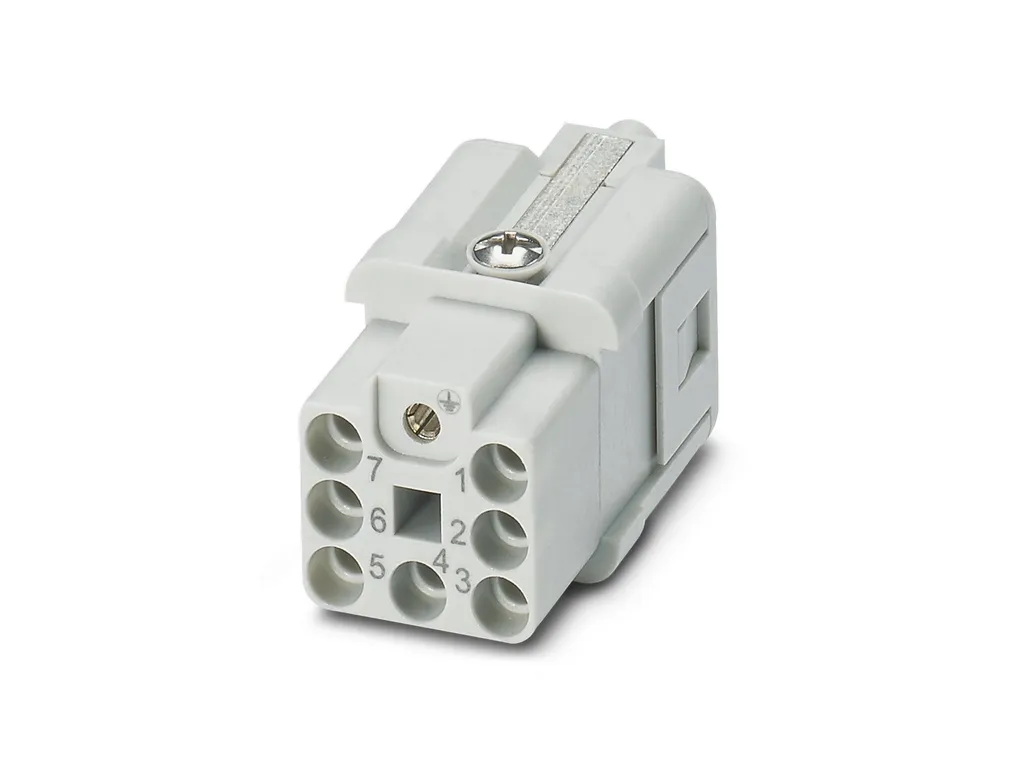

HC-Q07-I-CT-F - Contact insert
![](https://www.technologybsa.com/wp-content/uploads/2023/08/copia.png)
![](https://www.technologybsa.com/wp-content/uploads/2023/08/copia.png)
Notes | General: For HC-D7 housing, crimp contacts CK1,6-ED (crimp contacts not included in scope of supply) Connectors may be operated only when there is no load/voltage. |
Mounting | Assembly instructions: To ensure correct use, installation in housing with IP54 protection or better is required Four different coding options to prevent mismatching. Contact insert including IP67 sealing screw. |
Product properties | Type: D7 Product type: Contact insert with a fixed no. of positions Number of positions: 7 Connection profile: 7+PE Contact numbering: 1 - 7 Number of connections per position: 1 Contact material type: turned rolled Series: HC-Q Insulation characteristics Overvoltage category: III Degree of pollution: 3 |
Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/07d90400f0e7e44897ad15897cf2b8ff/-S204x204-FJPG Width: 21 mm Height: 40.1 mm Length: 21 mm Mechanical characteristics Contact diameter: 1.6 mm |
Connection data | Connection technology Connection technology: Crimp connection PE connection Number of connections per position: 1 Connection in acc. with standard: IEC / EN Conductor connection Conductor cross section: 0.14 mm² ... 2.5 mm² Connection cross section AWG: 26 ... 14 Tightening torque: 0.5 Nm ... 0.8 Nm (Mounting screws for mounting in the HEAVYCON housing) Stripping length of the individual wire: 8 mm 6 mm (2.5mm²) |
Electrical properties | Rated voltage (III/3): 400 V Rated surge voltage: 6 kV Rated current: 12 A Test voltage: 6 kV |
Mechanical properties | Mechanical data Insertion/withdrawal cycles: ≥ 500 |
Material specifications | Flammability rating according to UL 94: V0 Contact material: Copper alloy Contact surface material: Ag (alternatively Au) Contact carrier material: PC Standards/regulations: PC: Fire protection in rail vehicles - requirement sets R22, R23, and R24 acc. to DINEN45545-2 (Risk level HL1 - HL3) |
Environmental and real-life conditions | Ambient conditions Ambient temperature (operation): -40°C ... 125°C (including heating up of contacts) |
Standards and regulations | Constructional and testing regulations: DINVDE0627/86 DINVDE0110/02.79 DINVDE0110-1/04.97 IEC 60664-1, DINIEC 60512 IEC 60352 Tests: DINVDE0627/86 DINVDE0110/02.79 DINVDE0110-1/04.97 IEC 60664-1, DINIEC 60512 IEC 60352 Testing Standards/regulations: PC: Fire protection in rail vehicles - requirement sets R22, R23, and R24 acc. to DINEN45545-2 (Risk level HL1 - HL3) |
ECLASS | ECLASS-11.0: 27440205 ECLASS-12.0: 27440205 ECLASS-13.0: 27440205 |
ETIM | ETIM 9.0: EC000438 |
UNSPSC | UNSPSC 21.0: 39121500 |
