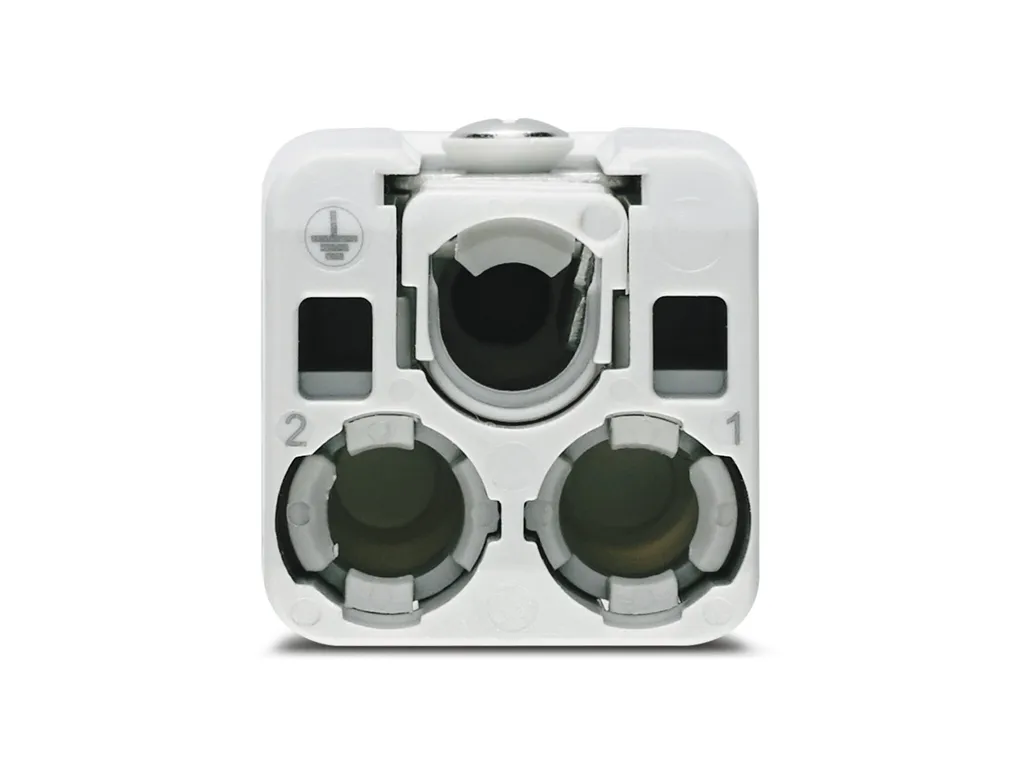

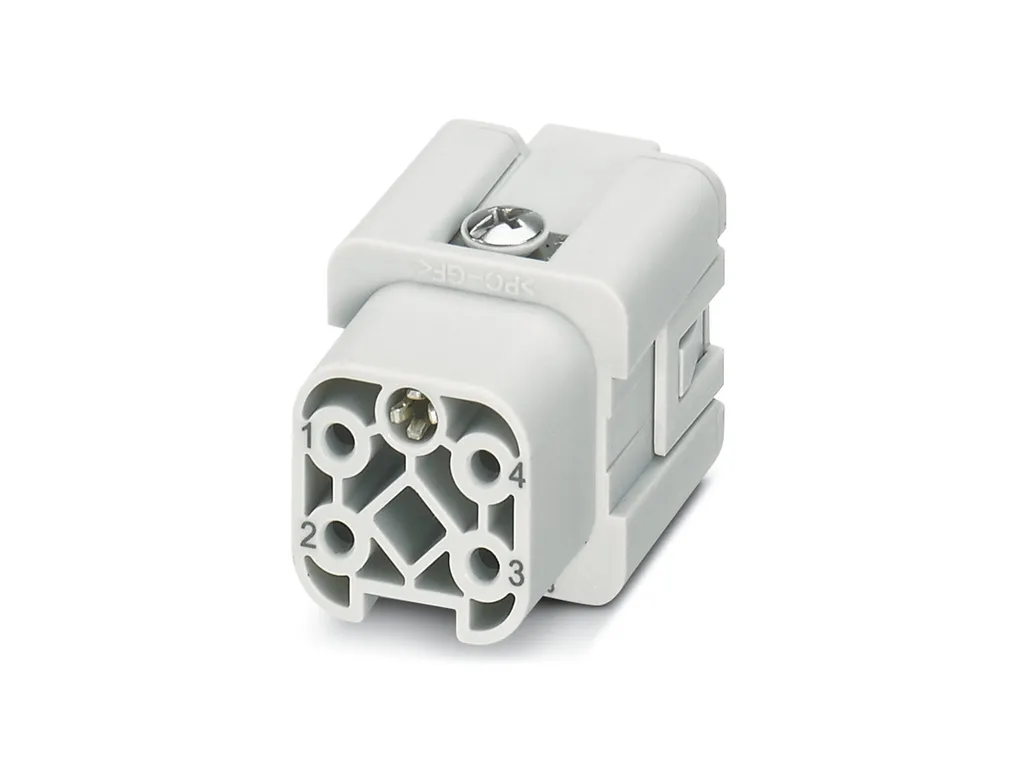

HC-Q02-I-CT-F - Contact insert
![](https://www.technologybsa.com/wp-content/uploads/2023/08/copia.png)
![](https://www.technologybsa.com/wp-content/uploads/2023/08/copia.png)
Notes | General: For HC-D7 housing, crimp contacts CK 4,0. Crimp contacts not included in scope of supply. Connectors may be operated only when there is no load/voltage. |
Mounting | Assembly instructions: To ensure correct use, installation in housing with IP54 protection or better is required |
Product properties | Type: D7 Product type: Contact insert with a fixed no. of positions Number of positions: 2 Connection profile: 2+PE Contact numbering: 1 - 2 Application: Power Number of connections per position: 1 Contact material type: turned Series: HC-HS Insulation characteristics Overvoltage category: III Degree of pollution: 3 |
Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/bc55dbb58317984ea228f20b14352b85/-S204x204-FJPG Width: 21 mm Height: 34.8 mm Length: 21 mm Mechanical characteristics Contact diameter: 4 mm |
Connection data | Connection technology Connection technology: Crimp connection Crimp connection (PE contact) Number of connections per position: 1 Connection in acc. with standard: IEC / EN Conductor connection Conductor cross section: 1.5 mm² ... 6 mm² Connection cross section AWG: 16 ... 10 Tightening torque: 0.5 Nm ... 0.8 Nm (Mounting screws for mounting in the HEAVYCON housing) Stripping length of the individual wire: 9 mm (1.5 ... 6.0mm²) 11 mm (for 10 mm²) |
Electrical properties | Rated voltage (III/3): 400 V Rated surge voltage: 6 kV Rated current: 40 A |
Mechanical properties | Mechanical data Insertion/withdrawal cycles: ≥ 500 |
Material specifications | Flammability rating according to UL 94: V0 Contact material: Copper alloy Contact surface material: Ag Contact carrier material: PC Standards/regulations: PC: Fire protection in rail vehicles - requirement sets R22, R23, and R24 acc. to DINEN45545-2 (Risk level HL1 - HL3) |
Environmental and real-life conditions | Ambient conditions Ambient temperature (operation): -40°C ... 125°C (including heating up of contacts) |
Standards and regulations | Constructional and testing regulations: DINVDE0627/86 DINVDE0110/02.79 DINVDE0110-1/04.97 IEC 60664-1, DINIEC 60512 IEC 60352 Tests: DINVDE0627/86 DINVDE0110/02.79 DINVDE0110-1/04.97 IEC 60664-1, DINIEC 60512 IEC 60352 Testing Standards/regulations: PC: Fire protection in rail vehicles - requirement sets R22, R23, and R24 acc. to DINEN45545-2 (Risk level HL1 - HL3) |
ECLASS | ECLASS-11.0: 27440205 ECLASS-12.0: 27440205 ECLASS-13.0: 27440205 |
ETIM | ETIM 9.0: EC000438 |
UNSPSC | UNSPSC 21.0: 39121500 |
