| Notes | General: For use on the panel mounting base |
| Product properties | Type: D7 for supporting base element with single locking latch Product type: Protective cover Application: Standard Housing type: Protective cover Seal present: no |

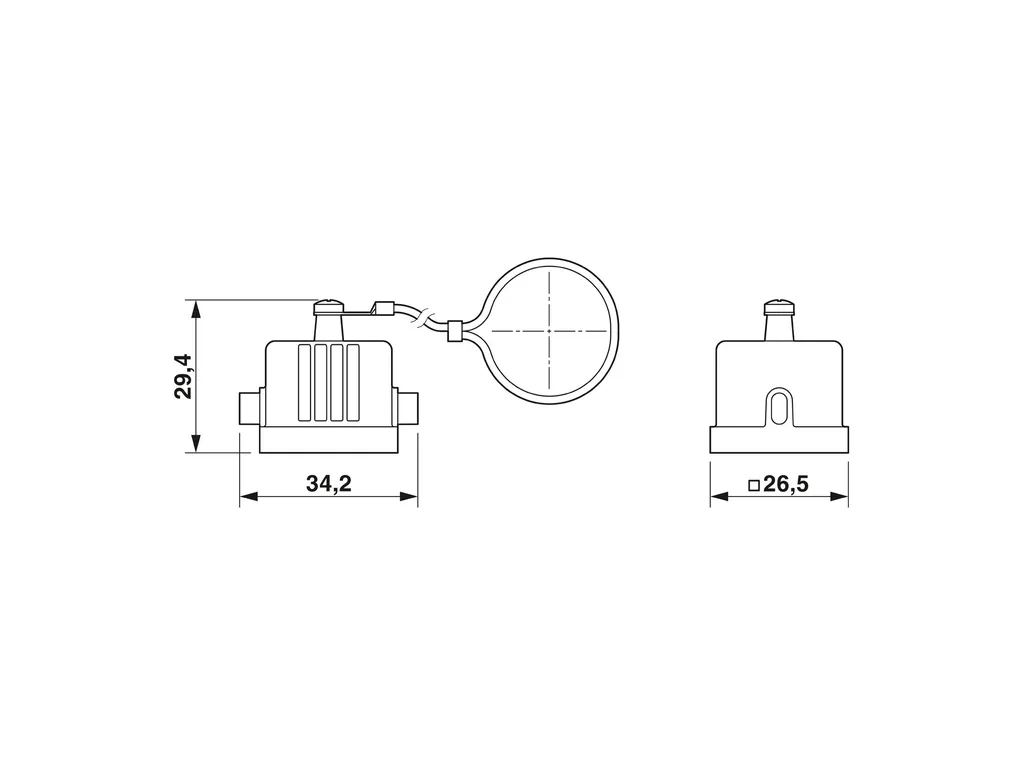

| Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/50b5aa51ea0e6548819f171ba6582cad/-S204x204-FJPG Width: 34.2 mm Height: 29.4 mm Length: 26.5 mm Diameter: 25 mm |
| Material specifications | Material: PA Flammability rating according to UL 94: V0 (Polyamide housing) Material, protective cover: PA Housing material: PA |
| Mechanical properties | Mechanical data Locking type: Pin |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP54 IP65 Ambient temperature (operation): -20°C ... 100°C |
| Mounting | Assembly instructions: Plastic protective cover for short-term protection |
| ECLASS | ECLASS-11.0: 27440208 ECLASS-12.0: 27440208 ECLASS-13.0: 27440208 |
| ETIM | ETIM 9.0: EC002314 |
| UNSPSC | UNSPSC 21.0: 39121400 |
