VS-SI-SD-CN - Socket insert
![](https://www.technologybsa.com/wp-content/uploads/2023/08/copia.png)
![](https://www.technologybsa.com/wp-content/uploads/2023/08/copia.png)
Product properties | Product type: Socket Country ID: China |
Electrical properties | Rated voltage (III/3): 250 V Rated current: 10 A |

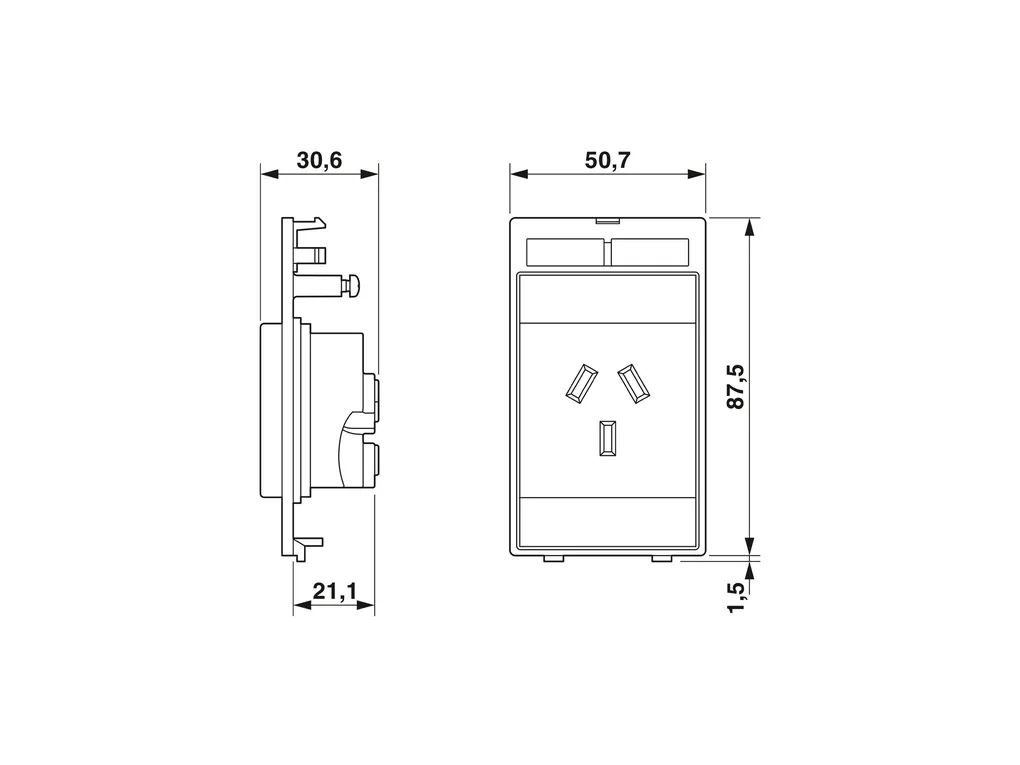

Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/2034030513129d4f910f94214e78ab3a/-S204x204-FJPG Width: 51 mm Height: 31.3 mm Length: 87.5 mm |
Material specifications | Material: PA Flammability rating according to UL 94: V0 |
Environmental and real-life conditions | Ambient conditions Degree of protection: IP20 Ambient temperature (operation): -10°C ... 60°C |
Mounting | Assembly instructions: suitable for all mounting frames Connection method: Screw connection |
ECLASS | ECLASS-11.0: 27144021 ECLASS-12.0: 27144021 ECLASS-13.0: 27144021 |
ETIM | ETIM 9.0: EC000450 |
UNSPSC | UNSPSC 21.0: 39121400 |
