PHOENIX CONTACT 1424417
PHOENIX CONTACTNot available

HC-STA-D50-BCSFD-PL-BK - Protective cover

Protective cover D50, for double locking latch, protective cover material: PA, height: 19 mm, seal: no, Standard
Product Code: 1424417
Partner cod.: 1424417
PHOENIX CONTACT


Diminuisci la quantità
Aumenta la quantità
Tecnichal data
Technical Specs
Download
Tecnichal data
NotesGeneral: Protective cover for supporting base element with double locking latch
Product propertiesType: D50
for supporting base element with double locking latch
Product type: Protective cover
Application: Standard
Housing type: Protective cover
Seal present: no

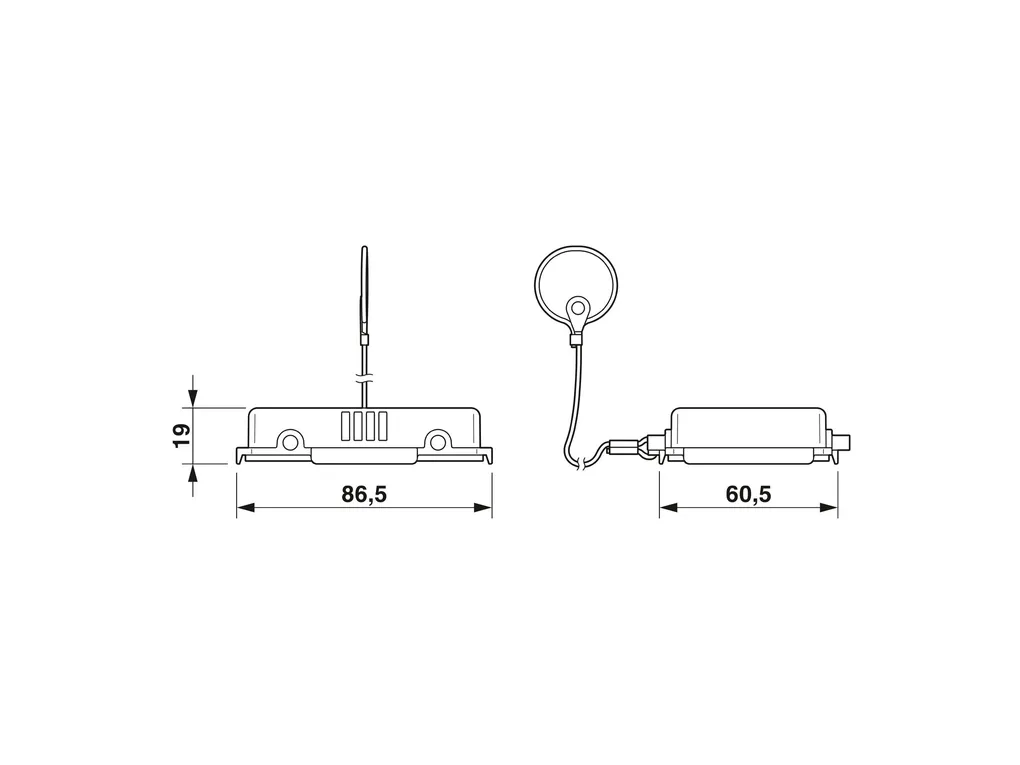

DimensionsDimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/e4a36f3e072a3445a59aa9d473a72ff4/-S204x204-FJPG
Width: 60.5 mm
Height: 19 mm
Length: 86.5 mm
Material specificationsMaterial: PA
Flammability rating according to UL 94: V0
Material, protective cover: PA
Mechanical propertiesMechanical data
Locking type: Pin
Environmental and real-life conditionsAmbient conditions
Degree of protection: IP66
Ambient temperature (operation): -20°C ... 100°C
MountingAssembly instructions: Plastic protective cover for short-term protection
Technical Specs
ECLASSECLASS-11.0: 27440208
ECLASS-12.0: 27440208
ECLASS-13.0: 27440208
ETIMETIM 9.0: EC002314
UNSPSCUNSPSC 21.0: 39121400
Download
PER SCARICARE I DOCUMENTI E' NECESSARIO EFFETTUARE L'ACCESSO AL SITO

Approvals_00354.pdf

Technical_drawing_15089.pdf
