| Notes | General: Protective cover for supporting base elements |
| Product properties | Type: B24 Product type: Protective cover Application: for increased environmental and EMC requirements Housing type: Protective cover Series: HPR-B24 |

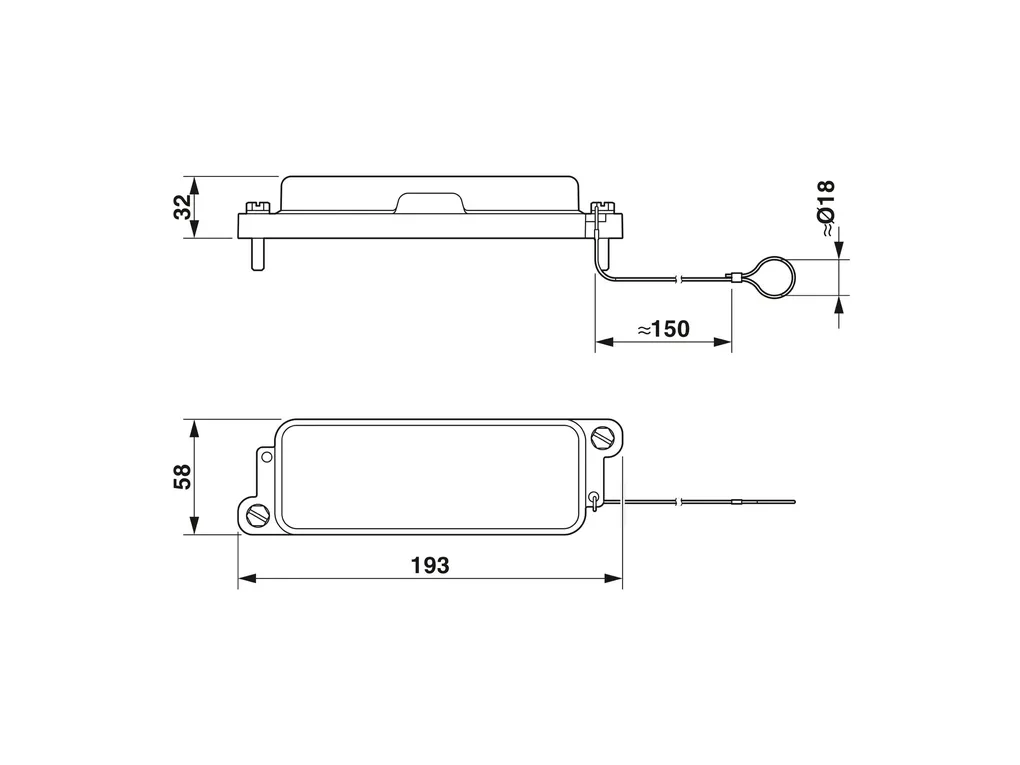

| Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/e7bc32497629404c8c35e25010cf3b84/-S204x204-FJPG Width: 58 mm Height: 32 mm Length: 193 mm |
| Material specifications | Material: die-cast aluminum Material, protective cover: Al Locking latch material: Stainless steel |
| Mechanical properties | Mechanical data Locking type: Screw |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP66 IP68 IP69 (ISO20653:2013-02) Ambient temperature (operation): -40°C ... 125°C |
| ECLASS | ECLASS-11.0: 27440208 ECLASS-12.0: 27440208 ECLASS-13.0: 27440208 |
| ETIM | ETIM 9.0: EC002314 |
| UNSPSC | UNSPSC 21.0: 39121400 |
