HC-STA-A16PT-BWSC-HS-M25-ELCAL - Connector set
![](https://www.technologybsa.com/wp-content/uploads/2023/08/copia.png)
![](https://www.technologybsa.com/wp-content/uploads/2023/08/copia.png)
Product properties | Type: D25 Product type: Connector set Number of positions: 16 Application: Standard No. of cable outlets: 1 Housing type: Complete housing Protective cover: yes Insulation characteristics Overvoltage category: III Degree of pollution: 3 |
Electrical properties | Rated voltage (III/3): 250 V Rated surge voltage: 4 kV Rated current: 16 A |
Connection data | Connection method: Push-in connection Connection technology: Push-in connection Conductor cross section: 0.14 mm² ... 2.5 mm² (applies to stranded conductors with ferrules) Connection cross section AWG: 26 ... 14 |

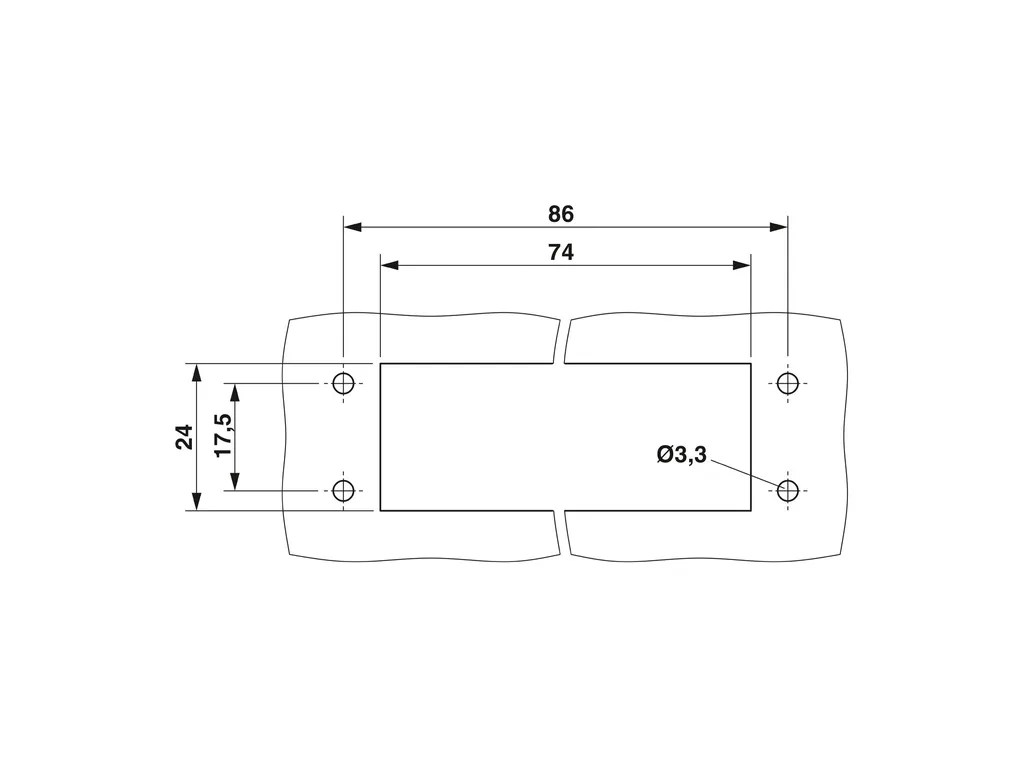

Dimensions | Installation dimensions Width of the assembly cutout: 24 mm Length of the assembly cutout: 74 mm |
Material specifications | Material: Die-cast aluminum, saltwater-resistant Flammability rating according to UL 94: V0 Contact material: Copper alloy Contact surface material: Ag Contact carrier material: PC Locking latch material: PA Impact strength: IK08 |
Cable/line | External cable diameter (): 11 mm ... 17 mm 14 mm ... 17 mm (for UL 514 B) |
Environmental and real-life conditions | Ambient conditions Degree of protection: IP66 IP67 Impact strength: IK08 Ambient temperature (operation): -40°C ... 100°C |
Mounting | Connection method: Push-in connection |
ECLASS | ECLASS-11.0: 27440101 ECLASS-12.0: 27440113 ECLASS-13.0: 27440113 |
ETIM | ETIM 9.0: EC002636 |
UNSPSC | UNSPSC 21.0: 39121400 |
